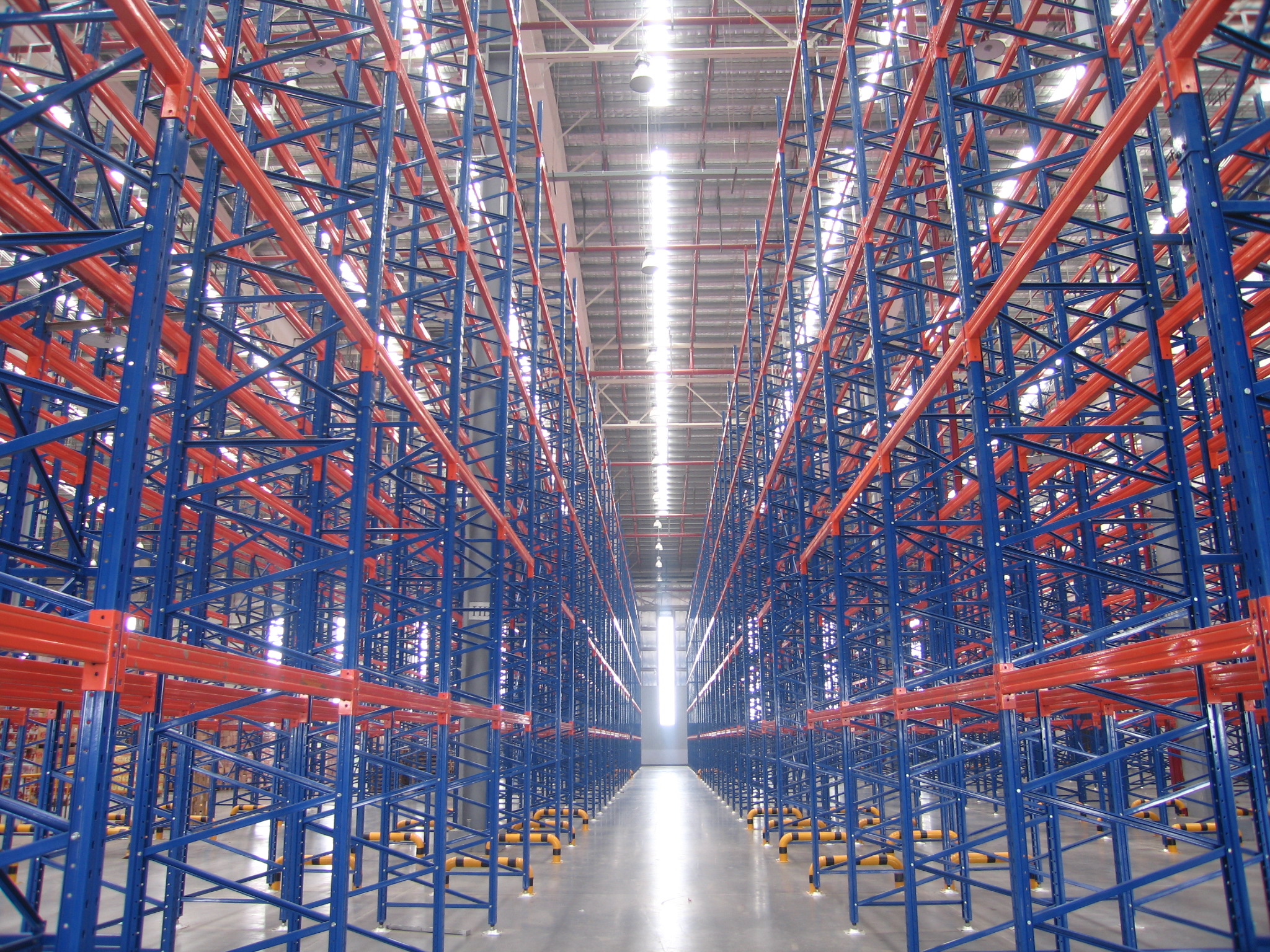

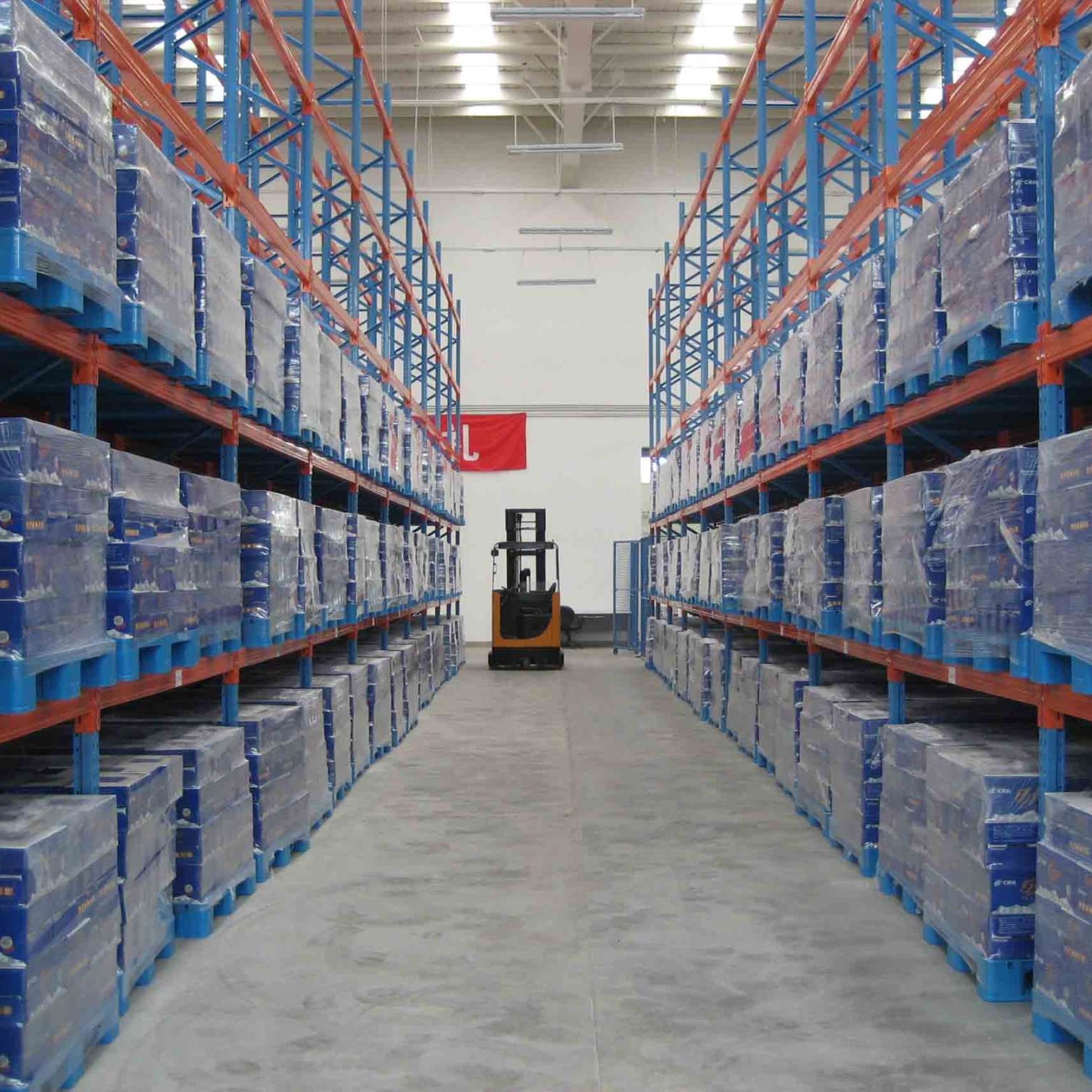

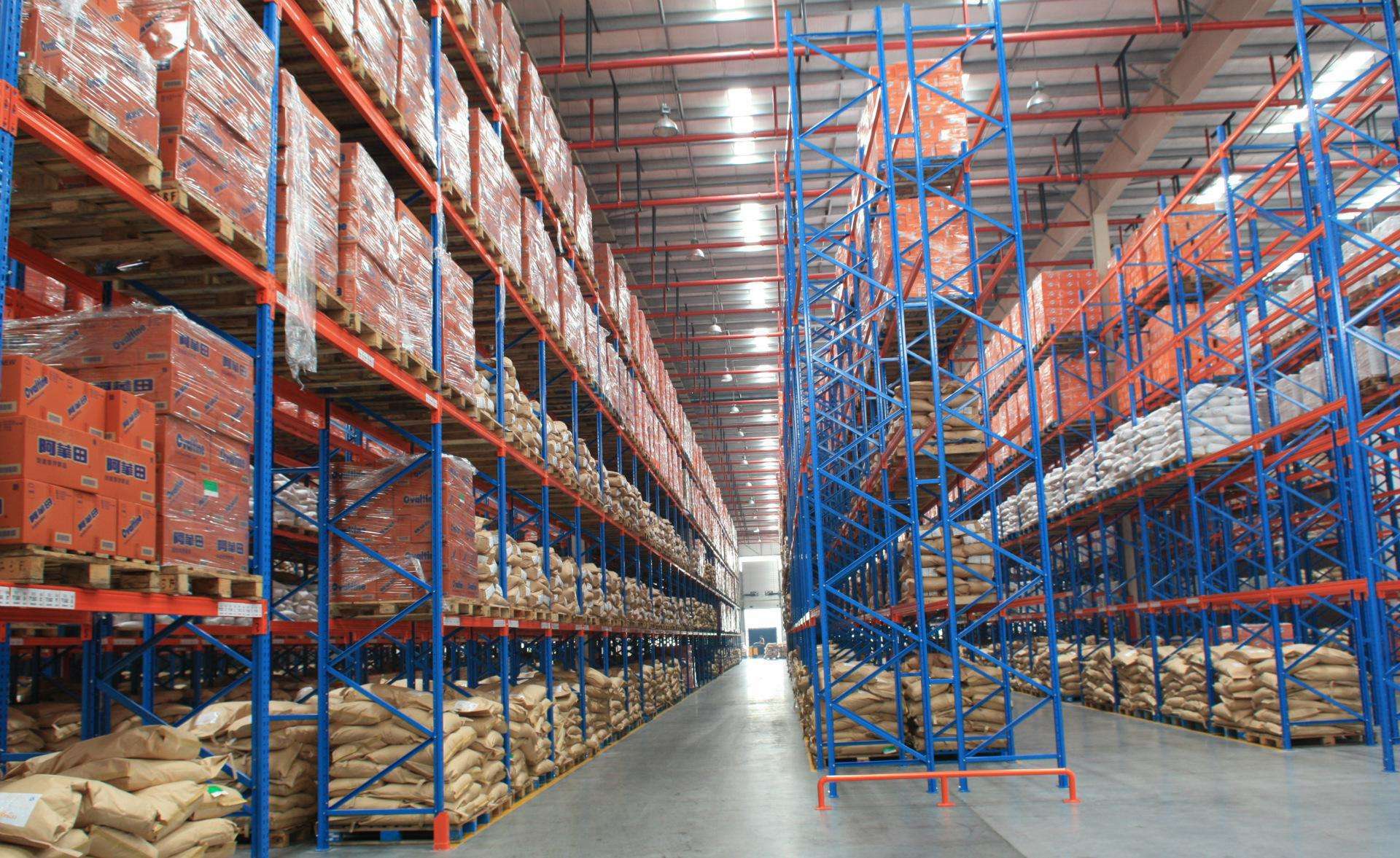

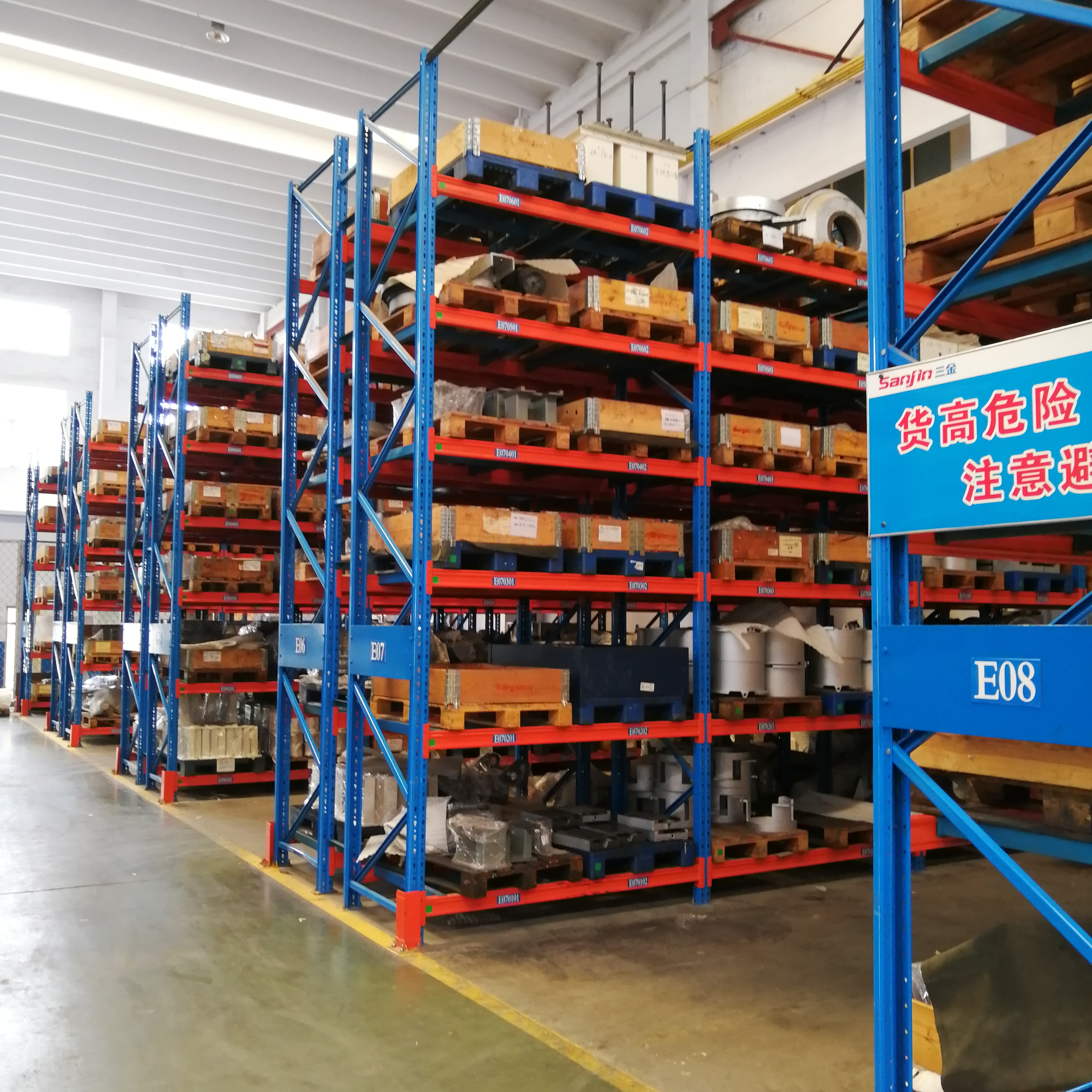

Industrial pallet racks can easily store large individual items and palletized goods, providing a effective storage system that can be widely used in warehouses and factory environments. The key to a successful storage operation is an effective storage layout, which contains enough storage capacity to meet the demand during busy periods, then enhance the company profits. Our standard pallet racking system provides a cost effective way to store large amounts of inventory in a warehouse.

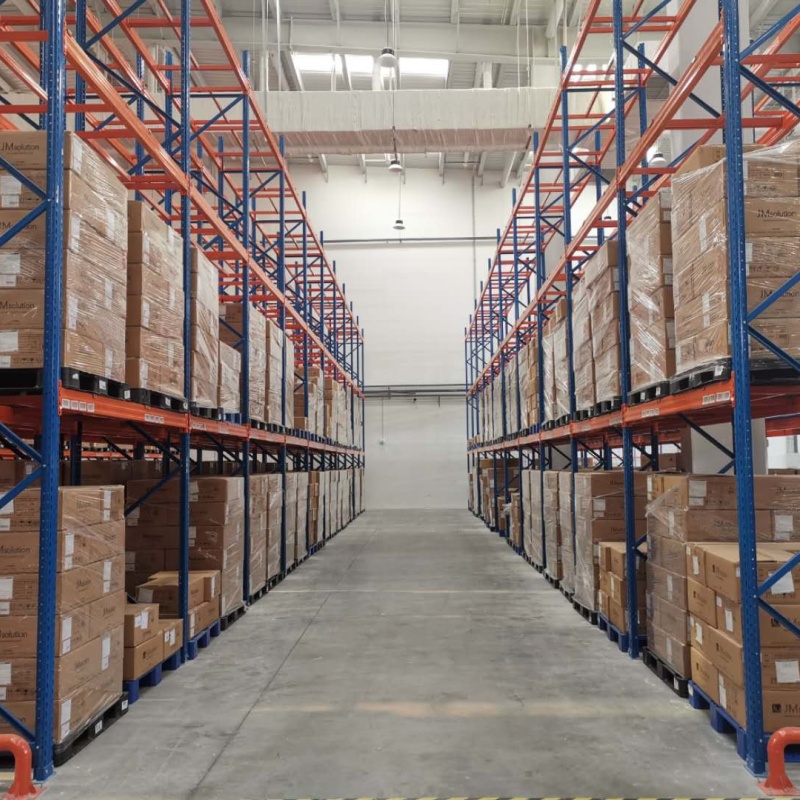

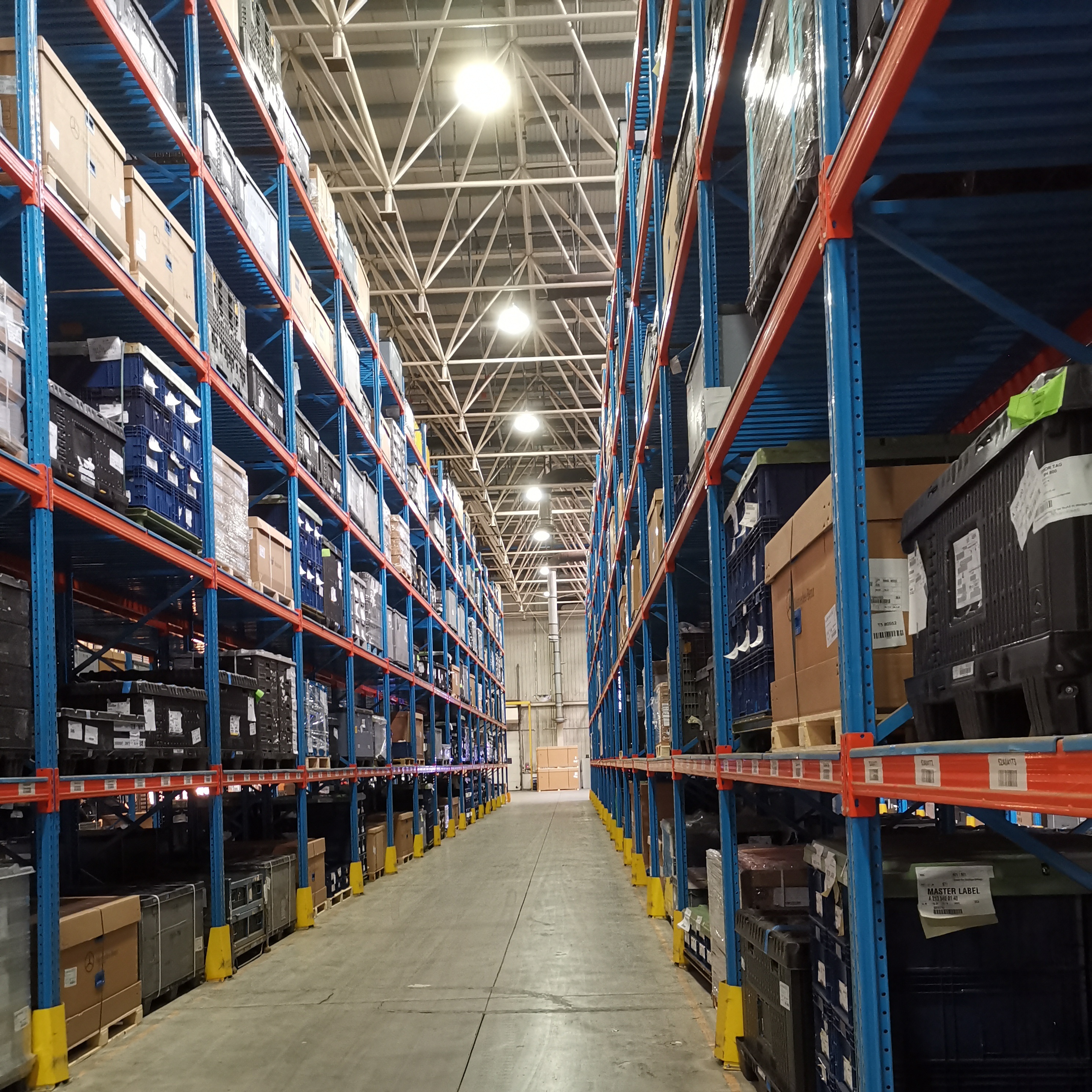

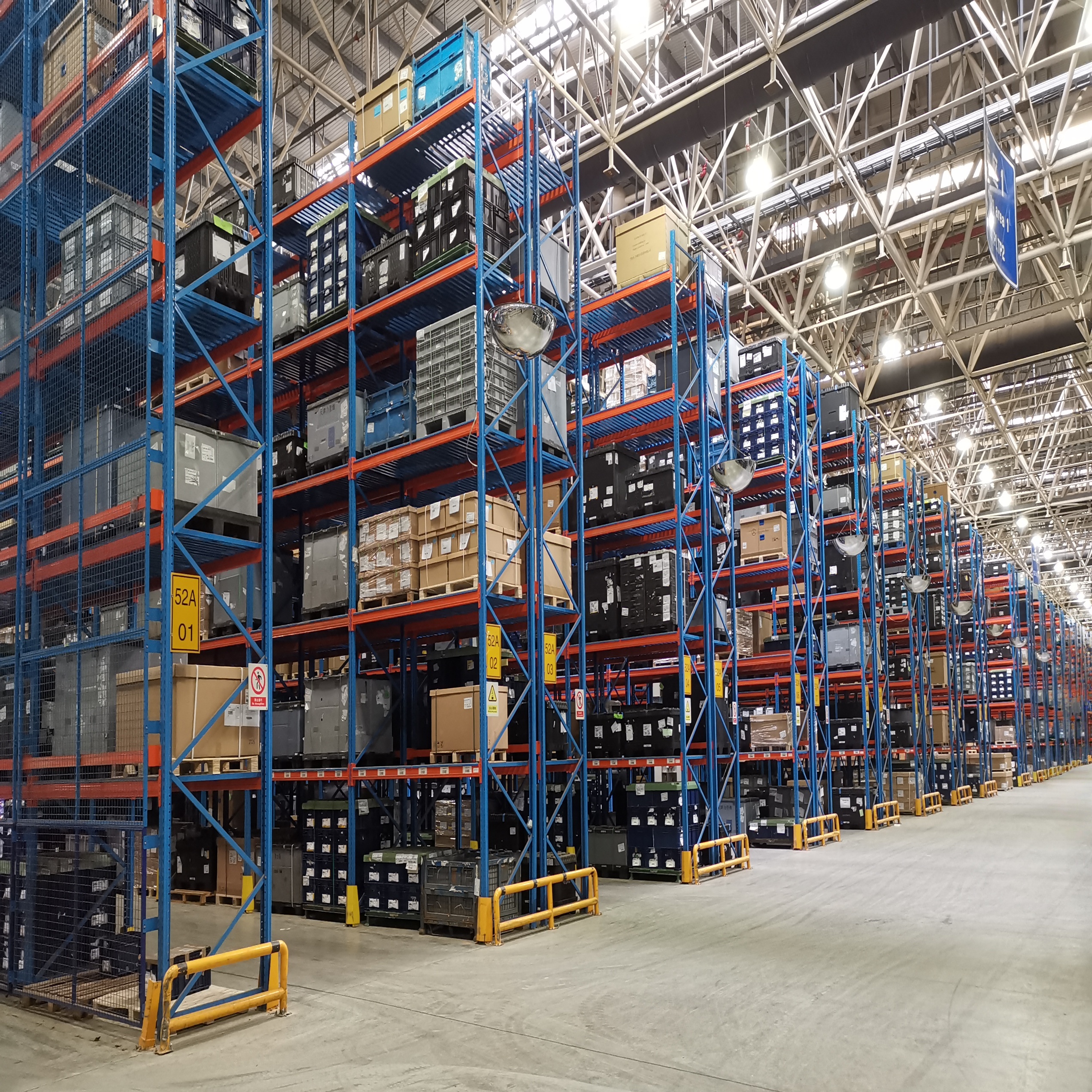

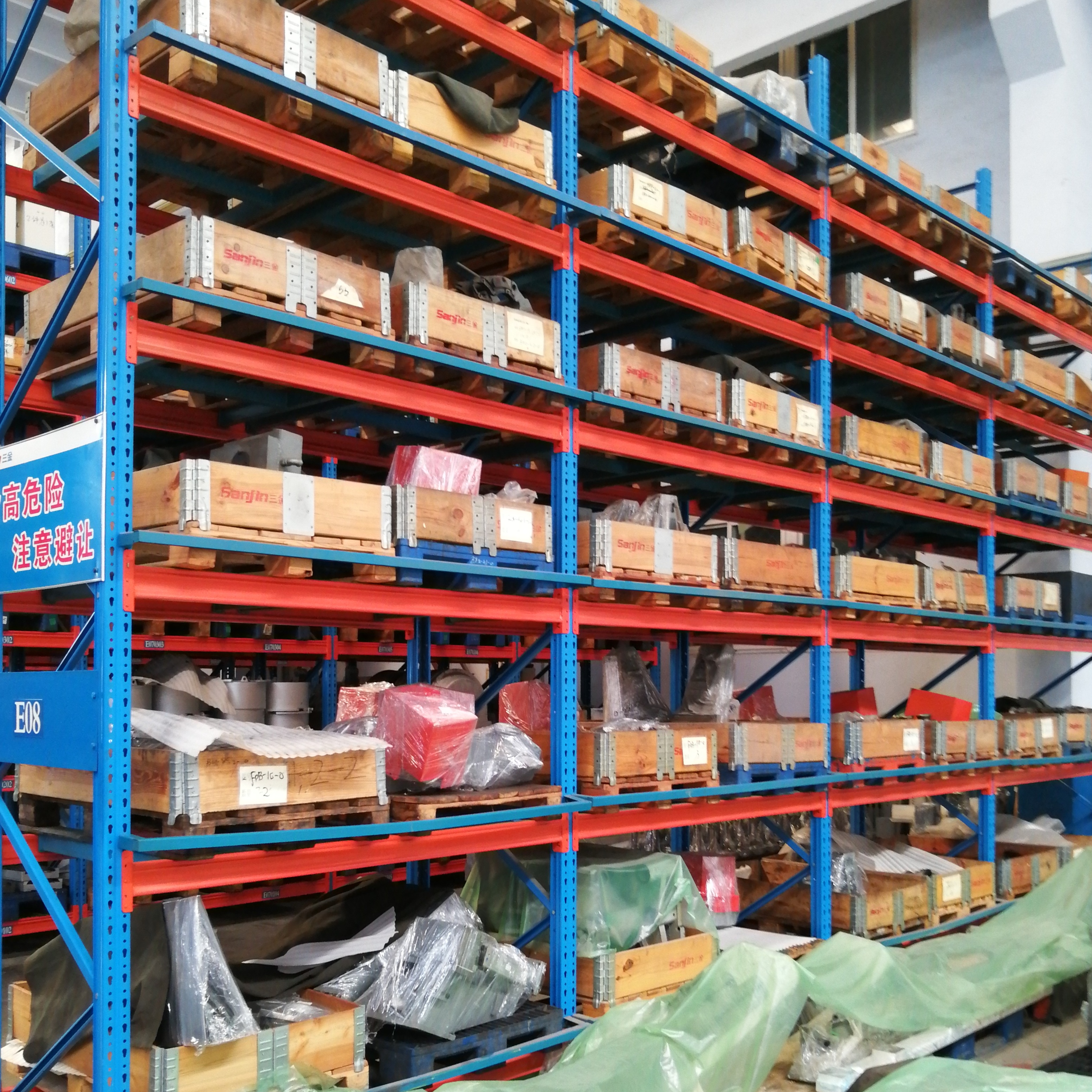

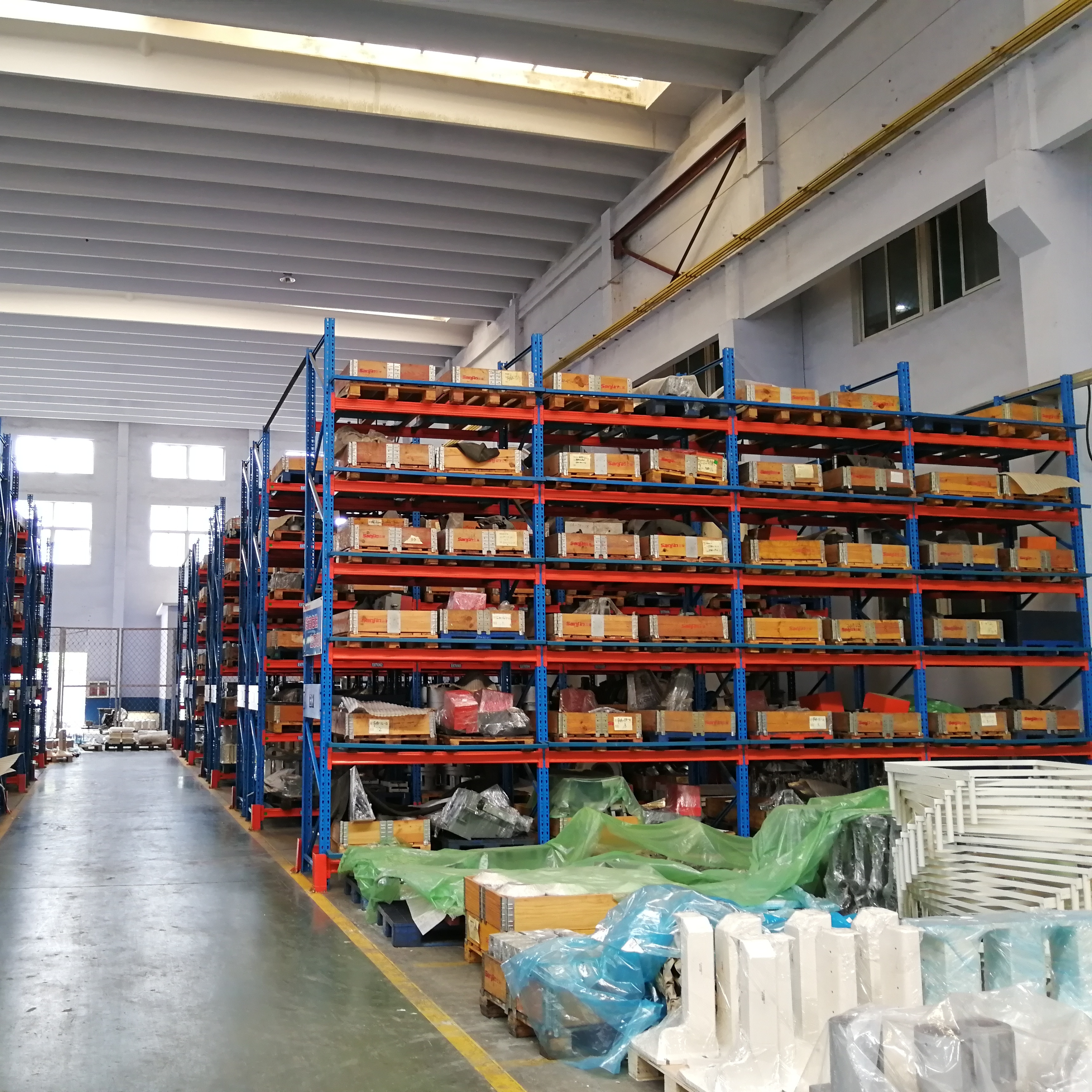

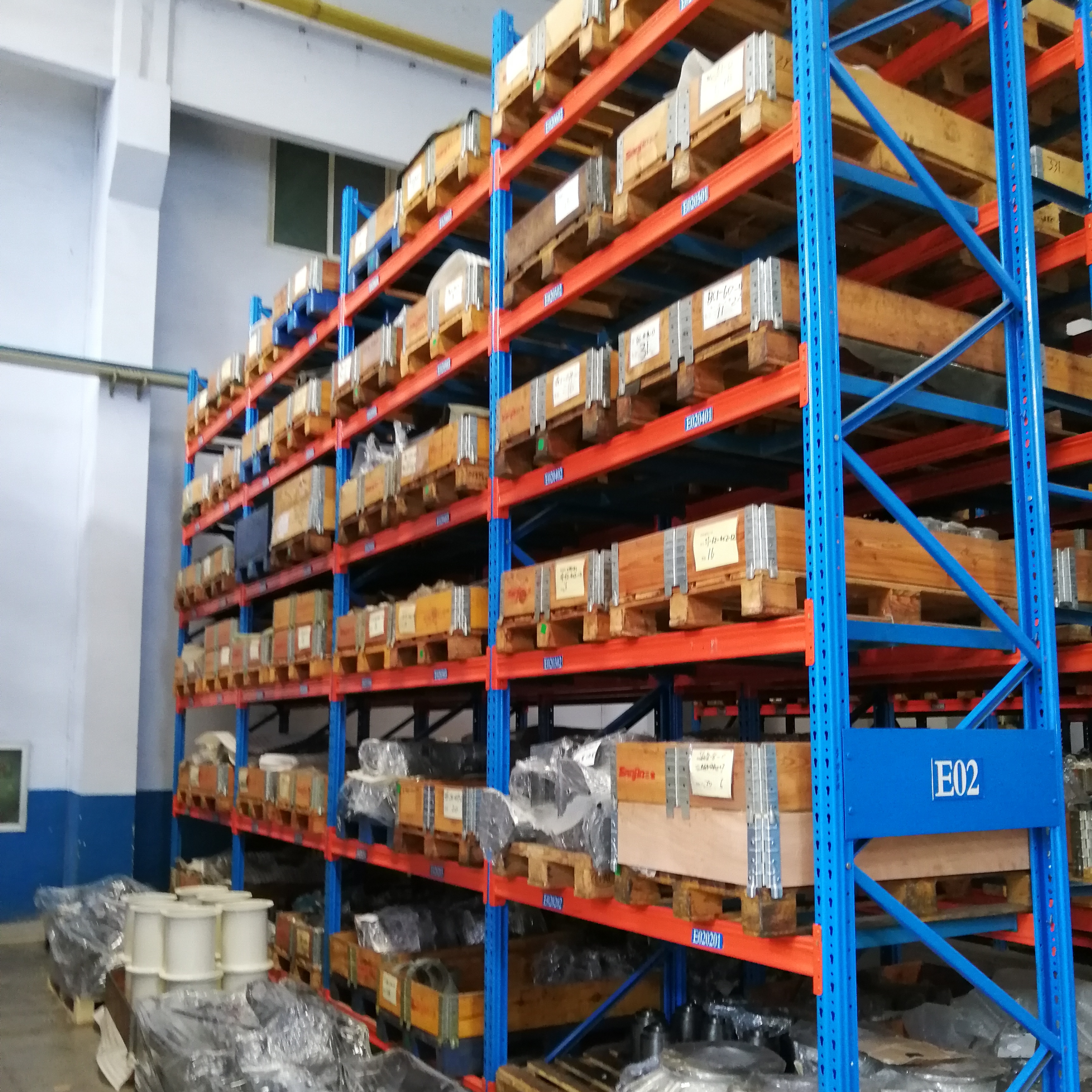

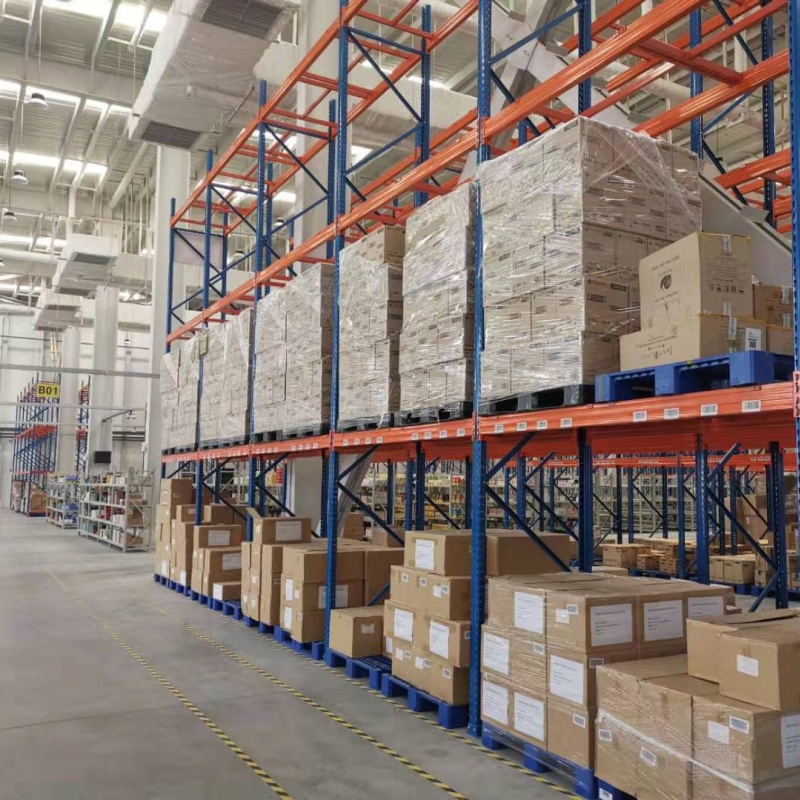

Selective pallet racking is the most commonly and popular heavy duty warehouse storage racking system. Heavy duty pallet racking system can store goods of various specifications and sizes. Its size is flexible and can be changed according to the pallet and product, thus greatly increasing the storage capacity of the warehouse.

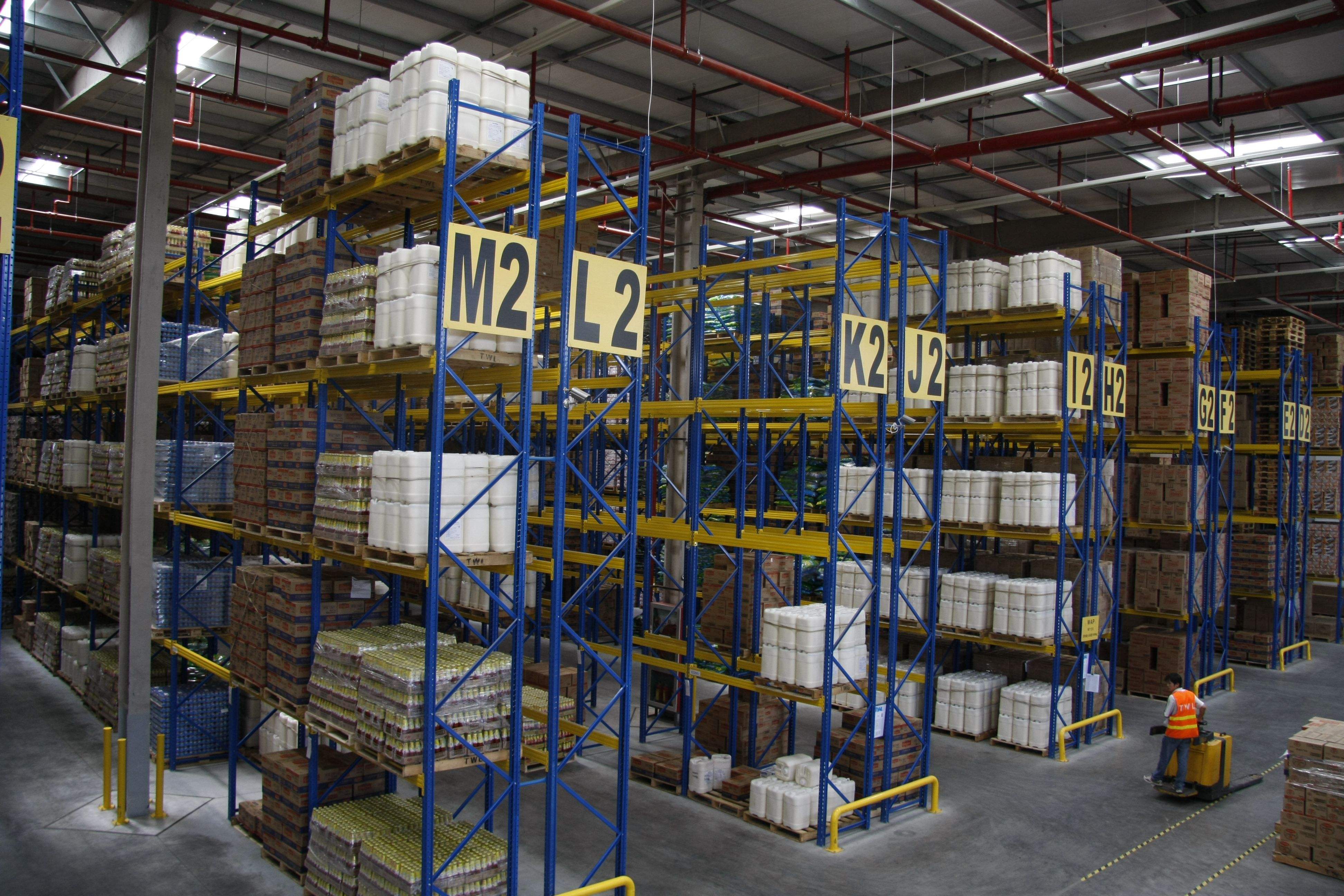

The forklift can directly access the individual pallets you need to load or unload. This makes the transportation process fast and convenient. Inventory management is also very simple.

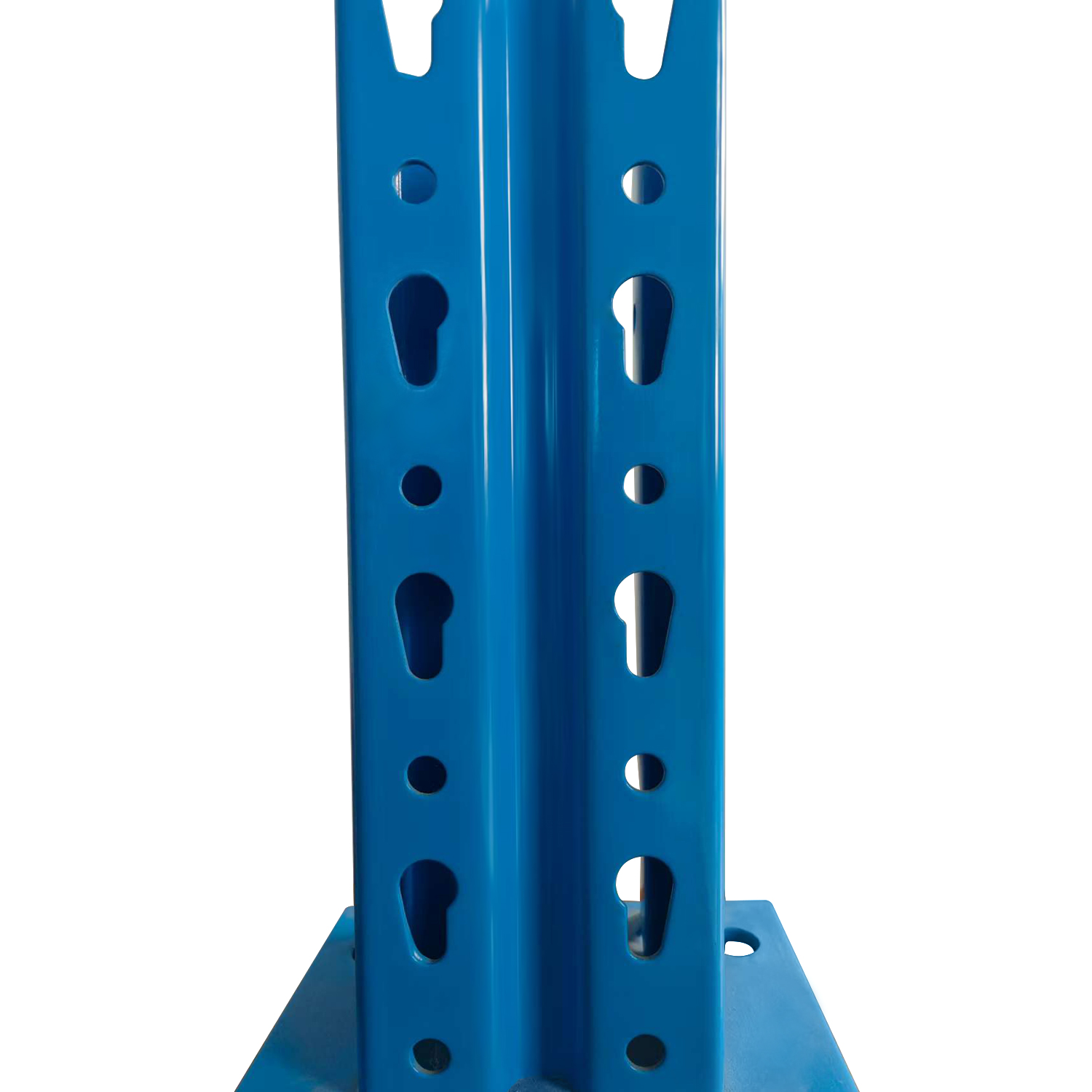

Teardrop Hole
Rhombus-shaped hole

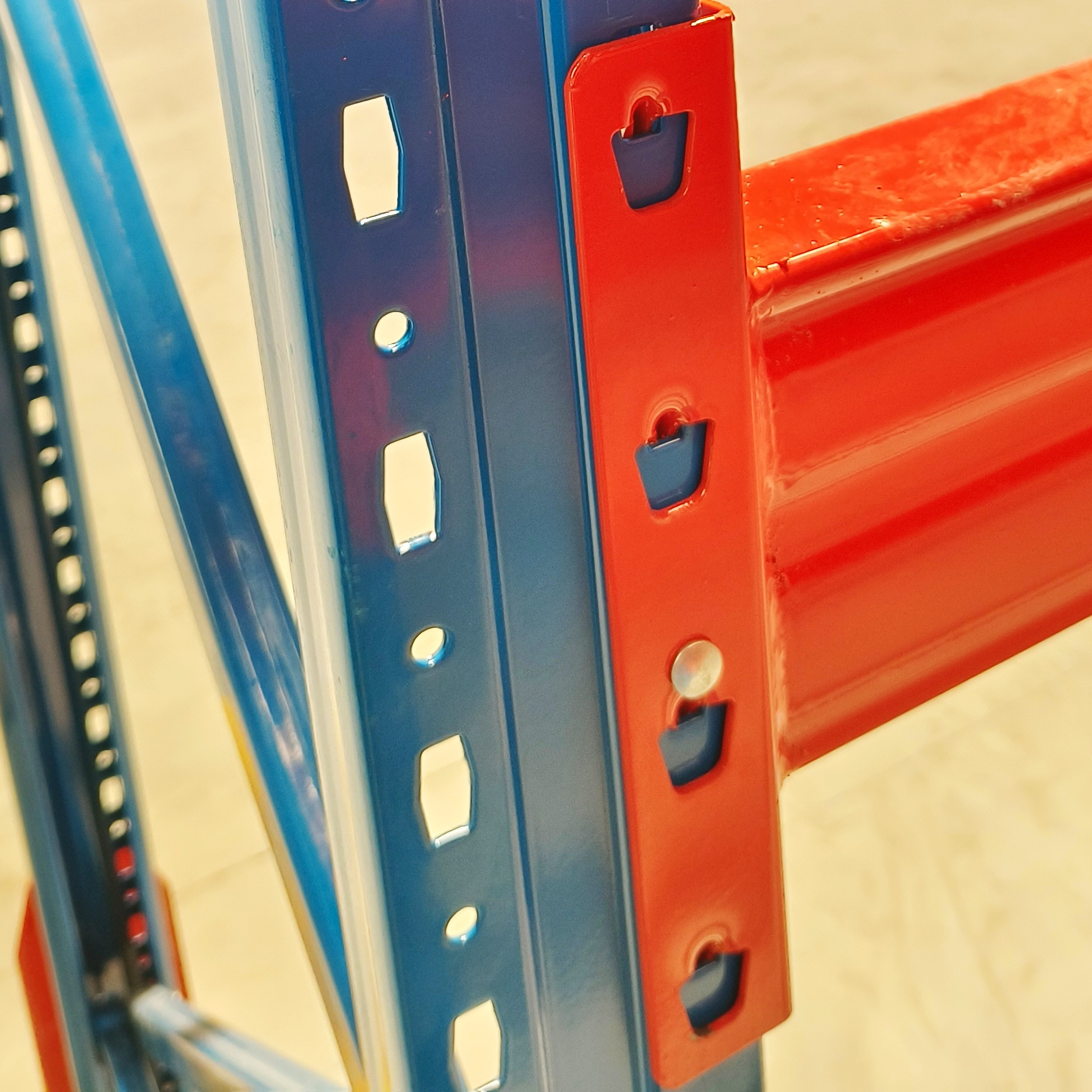

The double-locking structure—after the hooks are inserted into the column holes, they are locked again with bolts. To prevent the crossbeam from falling off due to impact or vibration.

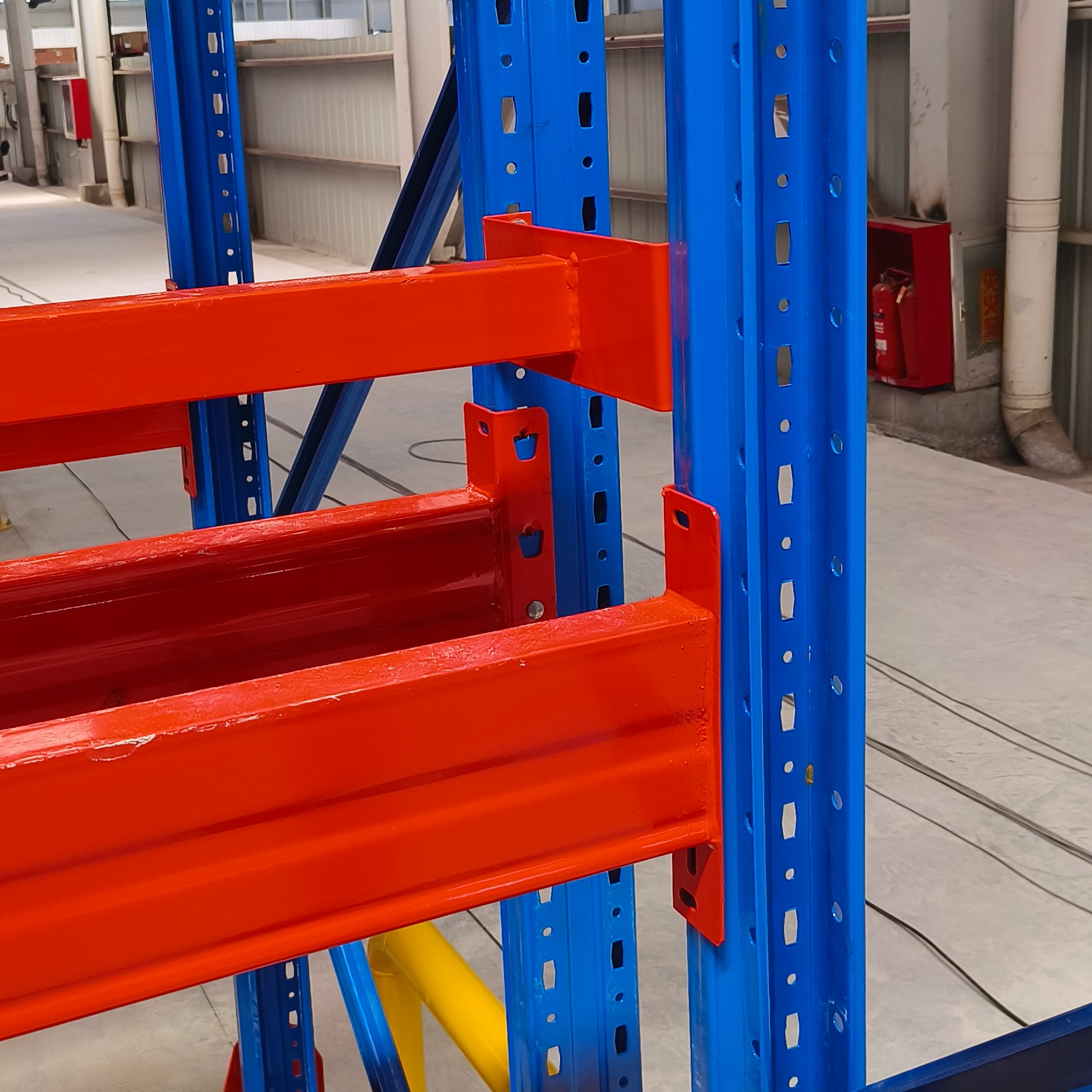

The beam structure is mainly a welded beam structure. The columns are cold-formed steel with a "C" or "U" shaped cross section.

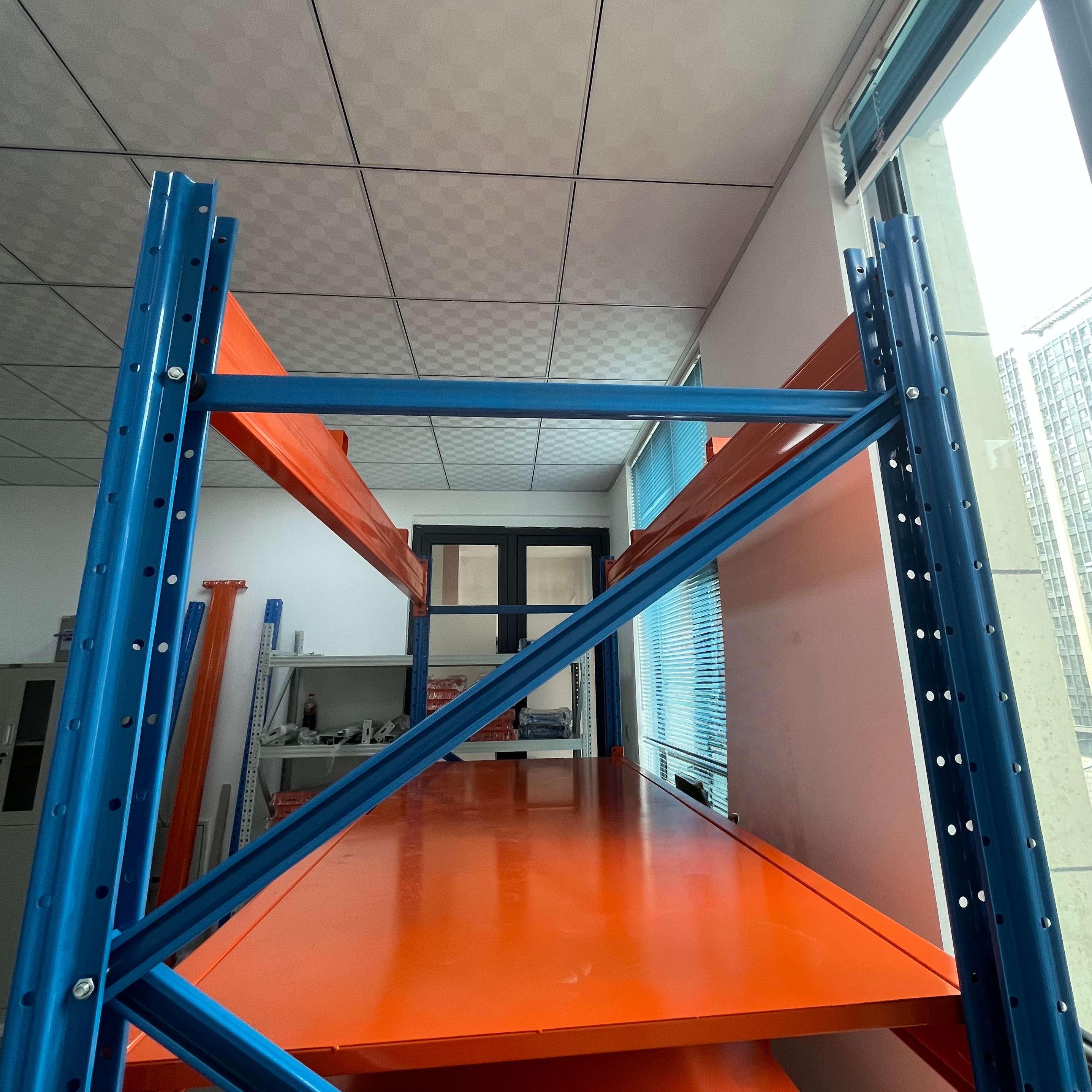

Horizontal supports and diagonal braces are installed between the uprights every 2-3 layers to form a stable triangular structure and prevent the shelves from tipping over.

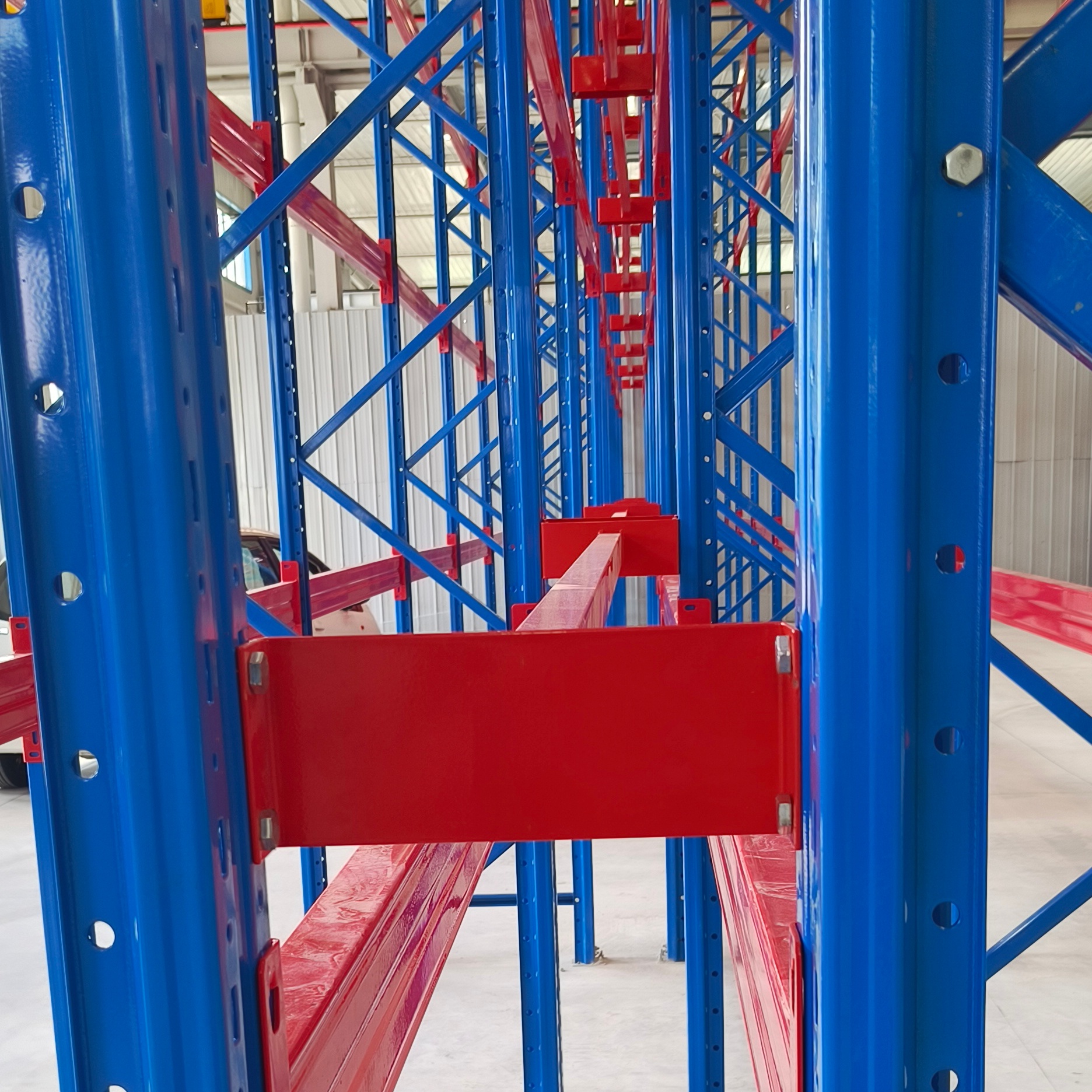

Connecting rods are installed between each group of shelves to enhance the stability of multiple groups of shelves, maintain regular spacing, distribute stress, and improve warehouse safety.
| Specification | Details |
|---|---|
| Material | Carbon steel Q235b, or customizable according to needs. |
| Load Capacity | Typically 1,000 kg to 3,000 kg per level |
| Rack Height | Customizable, typically 2000mm to 12000mm |
| Beam Length | 2,000mm(79in) to 3,500mm(138in), adjustable |
| Rack Depth | 1,000mm(40in) to 1,500mm(60in) |
| Column Size | 90mm x 70mm to 120mm x 120mm |
| Forklift Access | Double-deep forklift required for rear pallet access |
| Aisle Width | Typically 2.5m to 3.5m |
| Safety Features | Anti-collapse bars, end stops, locking pins, and protection |
| Finish | Powder-coated or galvanized |
| Adjustability | Adjustable in 50mm/75mm increments |
| Suitability | Ideal for ambient temperature and low-temperature storage |
✔ Monthly production capacity up to 3,000 tons.
✔ Professional technical team providing optimal solutions, drawings, and installation guidance.
✔ Customized services with diverse materials to meet load-bearing requirements.
✔ Extensive export experience and professional product knowledge.
✔ Certified with SGS, ISO9001, and numerous technical patents.
1 Cargo securing: Steel strapping ties and ropes are used to secure the shelving components. Heavy loads are reinforced with multiple layers.
2 Protection: Cardboard boxes and plastic film wrapping prevent collisions. Shock-absorbing devices protect the structure and coating.
3 Weather-proof: Covered with high-quality waterproof tarpaulins and desiccants to keep them rainproof and moisture-proof.
Integrating R&D, design, production, and installation of modern logistics technologies. Recognized as a specialized, innovative, and high-tech enterprise, we boast advanced equipment such as cold-rolling lines, automated powder coating lines, and automatic continuous punching lines.
Our diverse portfolio includes pallet racking, heavy-duty racking, medium-duty racking, ASRS racking, drive-through racking, mezzanine racking, cantilever racking, wireless shuttle racking, and more. Annual production capacity exceeds 20,000 tons.
