What is Selective Pallet Racking?
Selective pallet rack, also named beam rack or heavy-duty rack, is very common in various kinds of warehouse racks. The main components are an upright frame and beams, creating a structure that is both concise and effective. This is the most diversified warehouse rack and works seamlessly with forklifts for efficient pallet handling. It is widely used by many manufacturers, E-commerce warehouses, third-party logistics, and distribution centers. It is suitable for both a variety of small bulk items and uniform stock.
Key Technical Features
✨
Surface Treatment
The surface is treated with electrostatic spraying, offering advantages such as corrosion resistance, rust prevention, and an extended service life.
🏗️
High-Spec Crossbeams
Utilizing a C-shaped steel double-beam welded structure, it boasts superior bending strength compared to ordinary single beams.
🦾
Robust Uprights

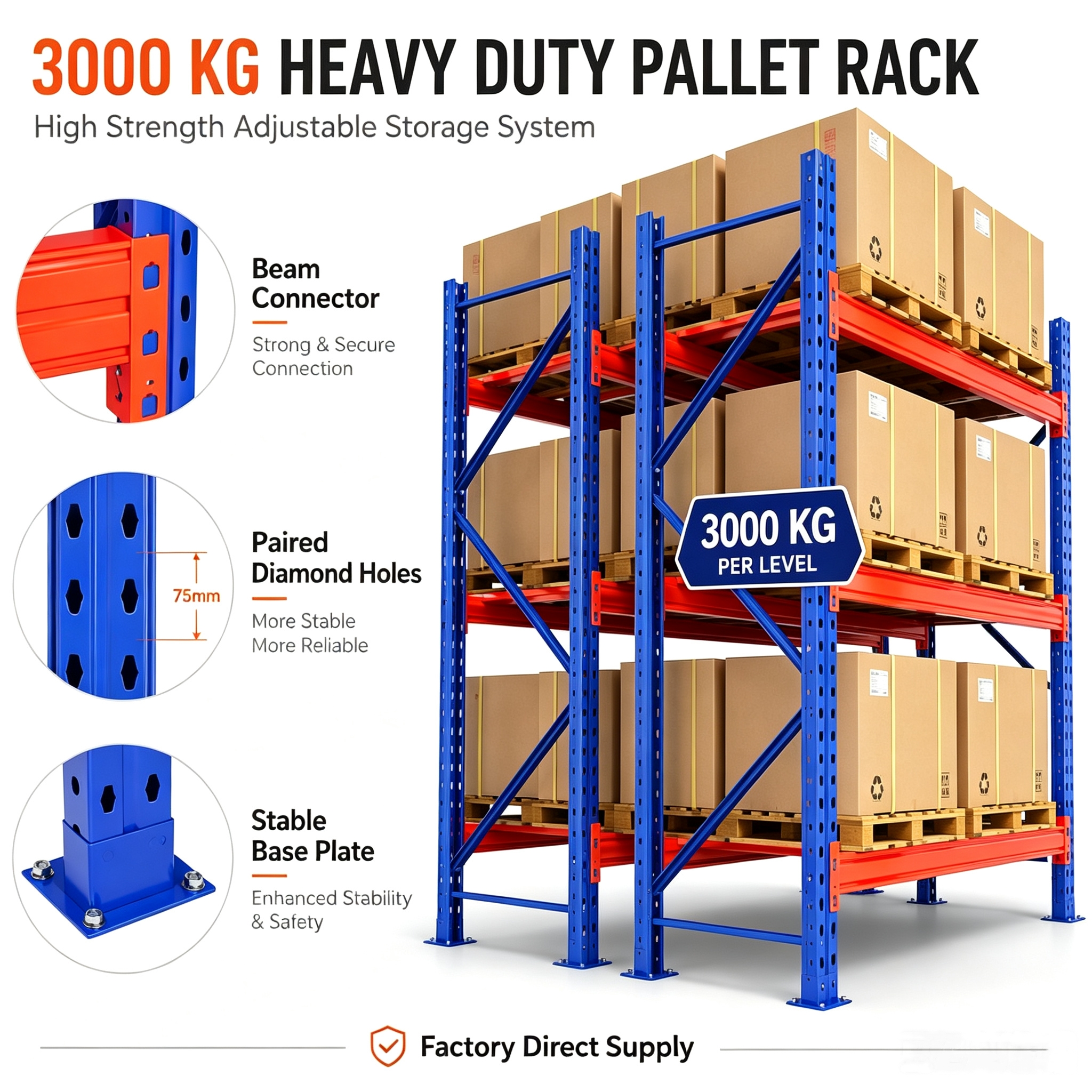

Made of cold-formed steel plate with 21 folds for stronger load-bearing capacity. Features adjustable diamond-shaped or teardrop holes.
⚙️
Adjustable Height
Diamond holes (75mm spacing) or Teardrop holes (50mm spacing) allow customers to adjust the height of each layer as needed.
🔒
Double-Locking Structure
Hooks are inserted into column holes and locked with bolts, effectively preventing beams from falling due to impact or vibration.
🛡️
Impact Protection
High-strength steel protectors are installed at column bottoms and passageway sides to absorb forklift impact and prevent deformation.
Stabilization & Reinforcement
Horizontal supports and diagonal braces are installed every 2-3 layers of uprights, forming a triangular stability structure to prevent the shelving from tipping over.
Advantages of Warehouse Pallet Rack
- Heavy-duty pallet racking systems are the simplest and most cost-effective storage racks globally.
- Customizable to support various weights and sizes of palletized goods.
- Maximizes vertical storage utilization, saving valuable warehouse space.
- Ensures direct access to all pallets for efficient storage and retrieval (FIFO support).
- Modular structure allows for quick assembly with simple tools.
- Compatible with various material handling equipment like forklifts and reach trucks.
Product Parameters
| Type | Heavy-Duty Selective Pallet Rack |
| Material | Q235B Steel, Cold Rolled Steel |
| Certifications | CE, ISO9001, GOST |
| Color | Blue, Orange, Customizable |
| Beam Length | Customizable, Typically 2,000mm to 3,500mm |
| Rack Depth | Customizable, 1,000mm to 1,500mm |
| Rack Height | Customizable, 2,000mm to 12,000mm+ |
| Column Size | 100x70mm, 90x80mm, 90x70mm, etc. |
| Aisle Width | Typically 2.5m to 3.5m |
| Environment | Normal Temperature or Cold Room (Max -40°C) |
Success Stories & Capacity Improvement
Comparison of warehouse capacity improvement before and after implementation:
Application Scenarios
Heavy-Duty Steel Racks are suitable for manufacturing warehouses, e-commerce fulfillment centers, 3PL distribution centers, cold storage, food and beverage, hardware, pharmaceutical warehouses, and auto parts facilities.
Our Manufacturing Expertise
With over 17 years in the warehouse racking industry, we have provided solutions to over 12,000+ users worldwide. Our mission is to solve warehousing challenges and maximize space utilization across Europe, South America, Asia, and the Middle East.
Why Choose Us
- Monthly Production: Up to 3,000 tons capacity for large-scale projects.
- Professional Support: Technical team providing optimal solutions, drawings, and on-site guidance.
- Customization: Diverse materials to meet specific load-bearing requirements.
- Certifications: Holder of SGS, ISO9001, and multiple design patents.
Product Packaging
1. Project Packaging: Palletized and stacked for direct unpacking and installation.
2. Trader Packaging: Uprights and crossbeams packaged separately on pallets.
3. Custom Packaging: Bubble wrap, cartons, or wooden crates available upon request.
Frequently Asked Questions
What is the raw material used for your products?
We use carbon steel Q235B for normal temperature warehouses. For cold storage (-18°C or lower), we use Q345D or other customized steel types to ensure structural integrity.
Do you have MOQ (minimum order quantity) limitations?
For most warehouse racks, we do not set a minimum order quantity. However, due to shipping costs and volume, ordering a single set is often not cost-effective.
What is the typical delivery time?
Since our products are bespoke, we do not keep stock. However, our 15 advanced production lines allow for a fast lead time, usually between 15 to 18 days.
How many pallets can fit on a single rack?
This depends on beam length and pallet dimensions. For safety and economy, it is standard to store two pallets per layer on a selective pallet rack.
What are the standard sizes for selective pallet racking?
L2500*D800*H4500mm is a very common size. However, since pallet standards vary (Euro: 1200x800mm, US: 1200x1000mm, Asia: 1100x1100mm), most products are customized to the client's specific needs.
How much does selective pallet racking cost?
Costs are primarily based on steel material volume and processing. Final pricing depends on current raw material costs, transportation, and installation requirements. Contact our sales for an accurate quote.
