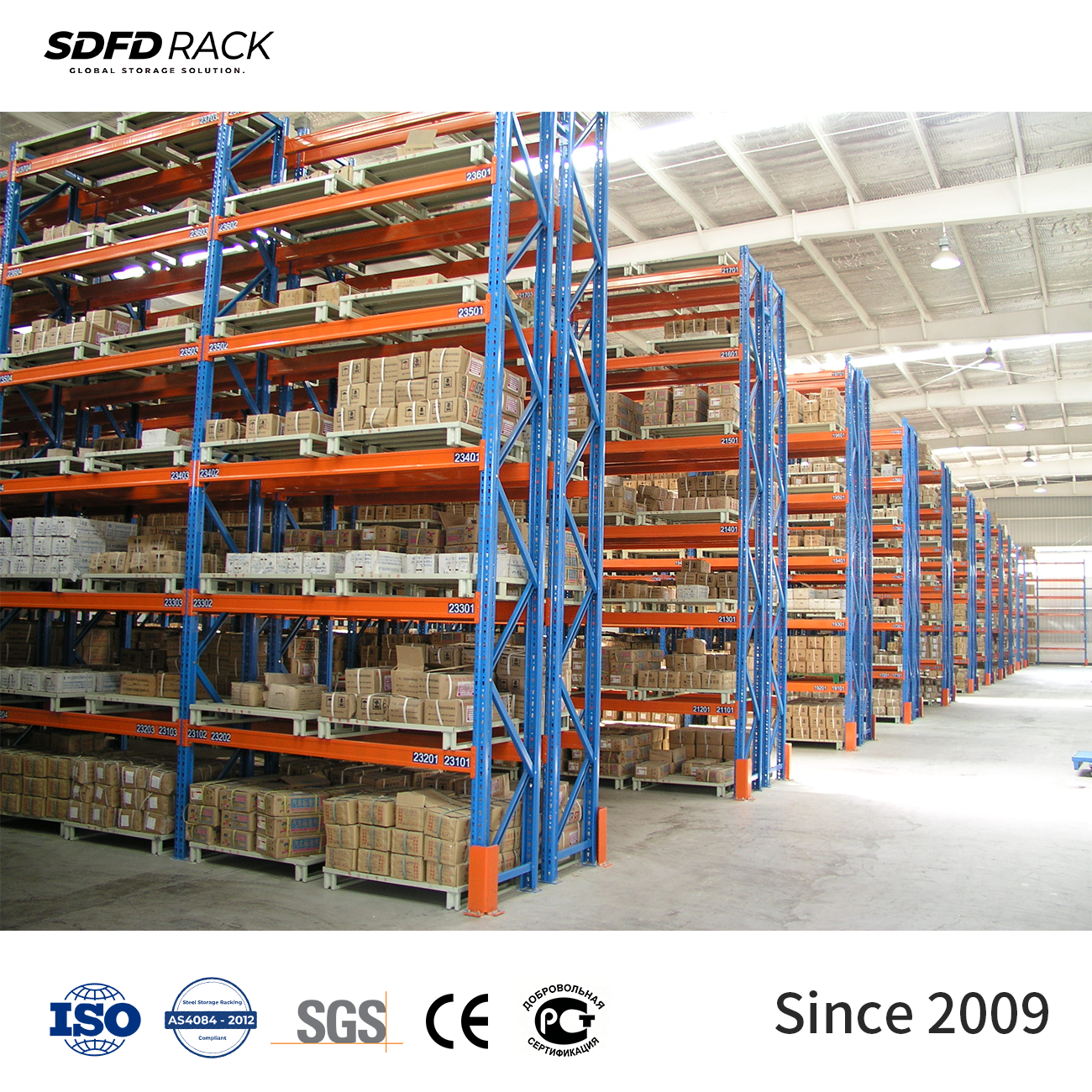

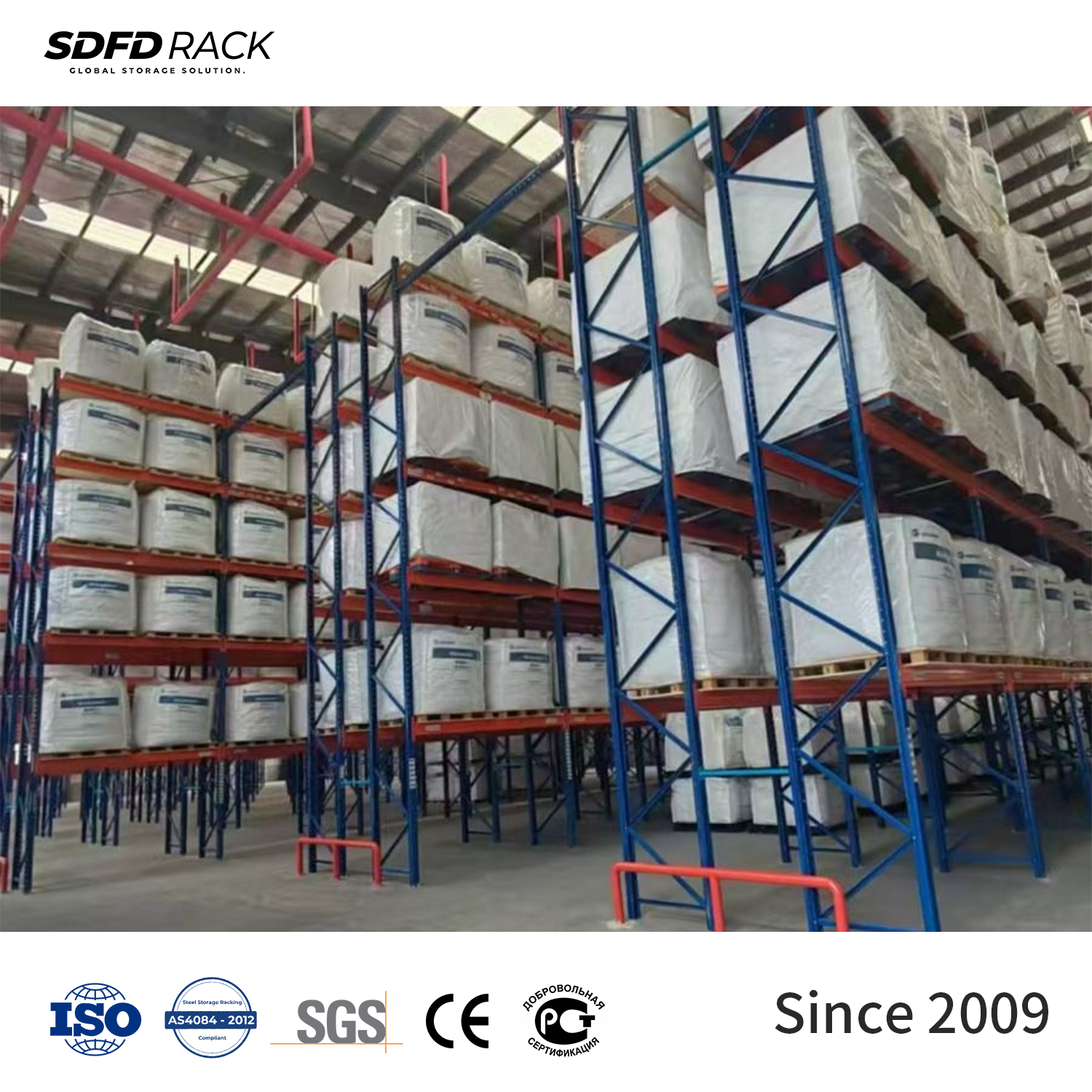

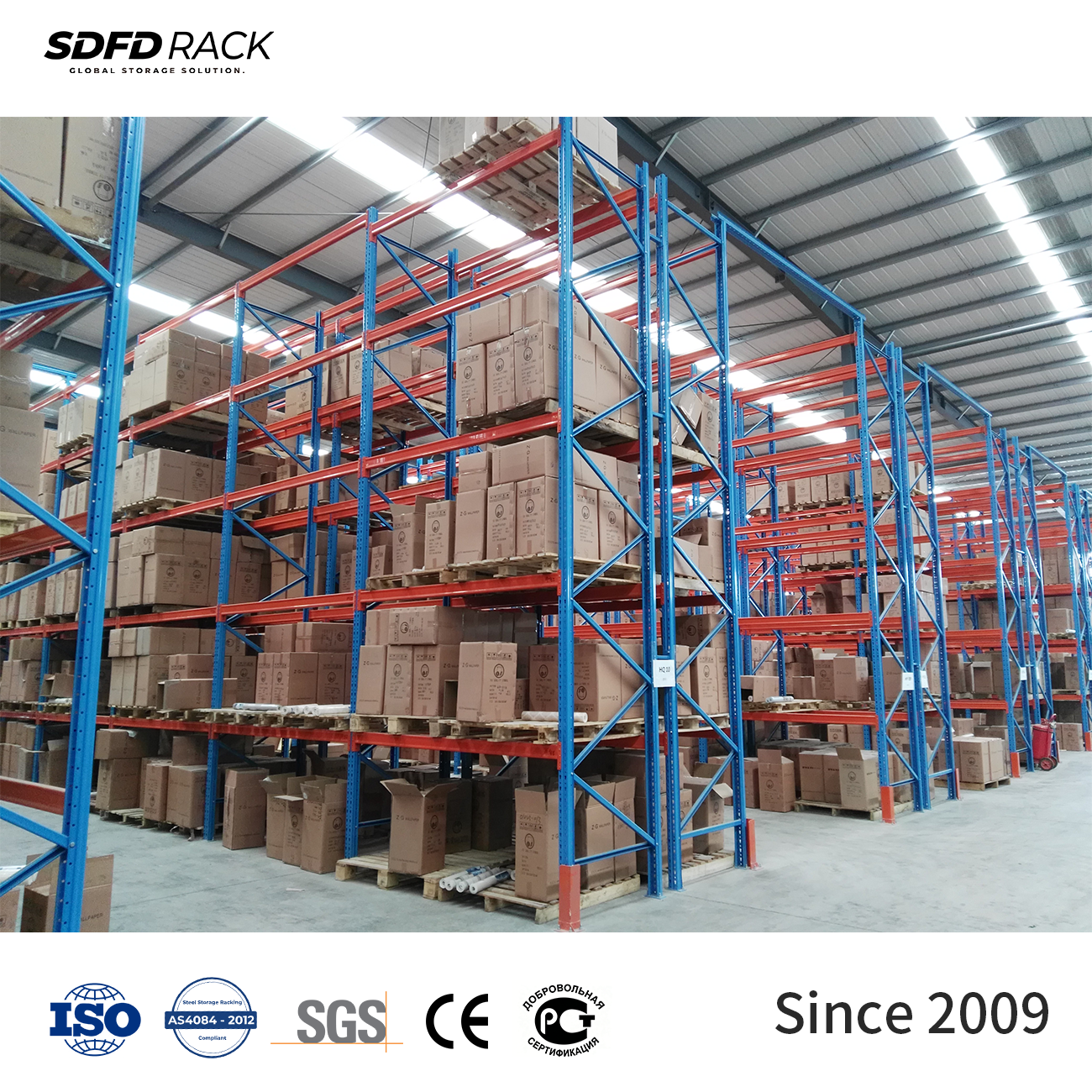

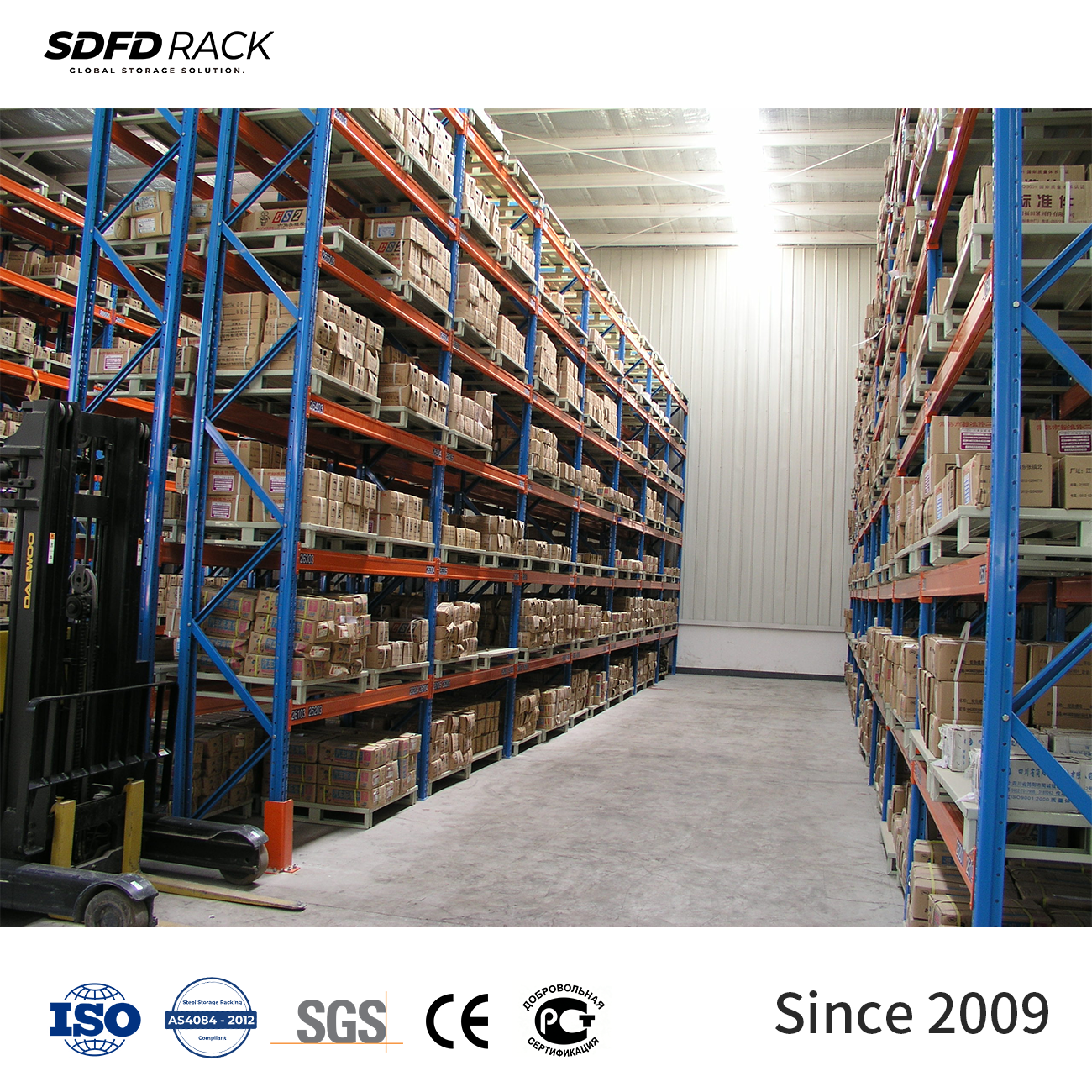

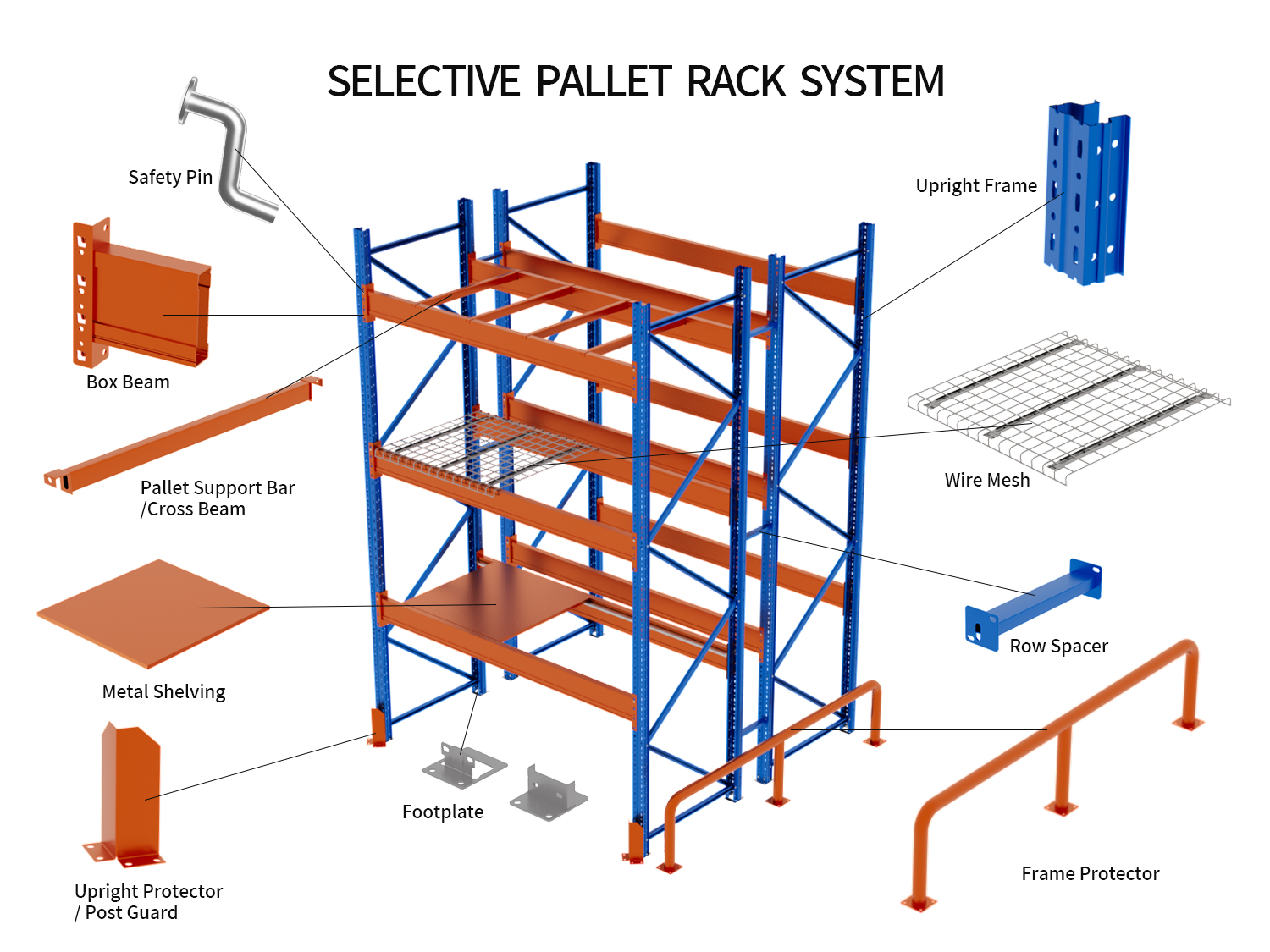

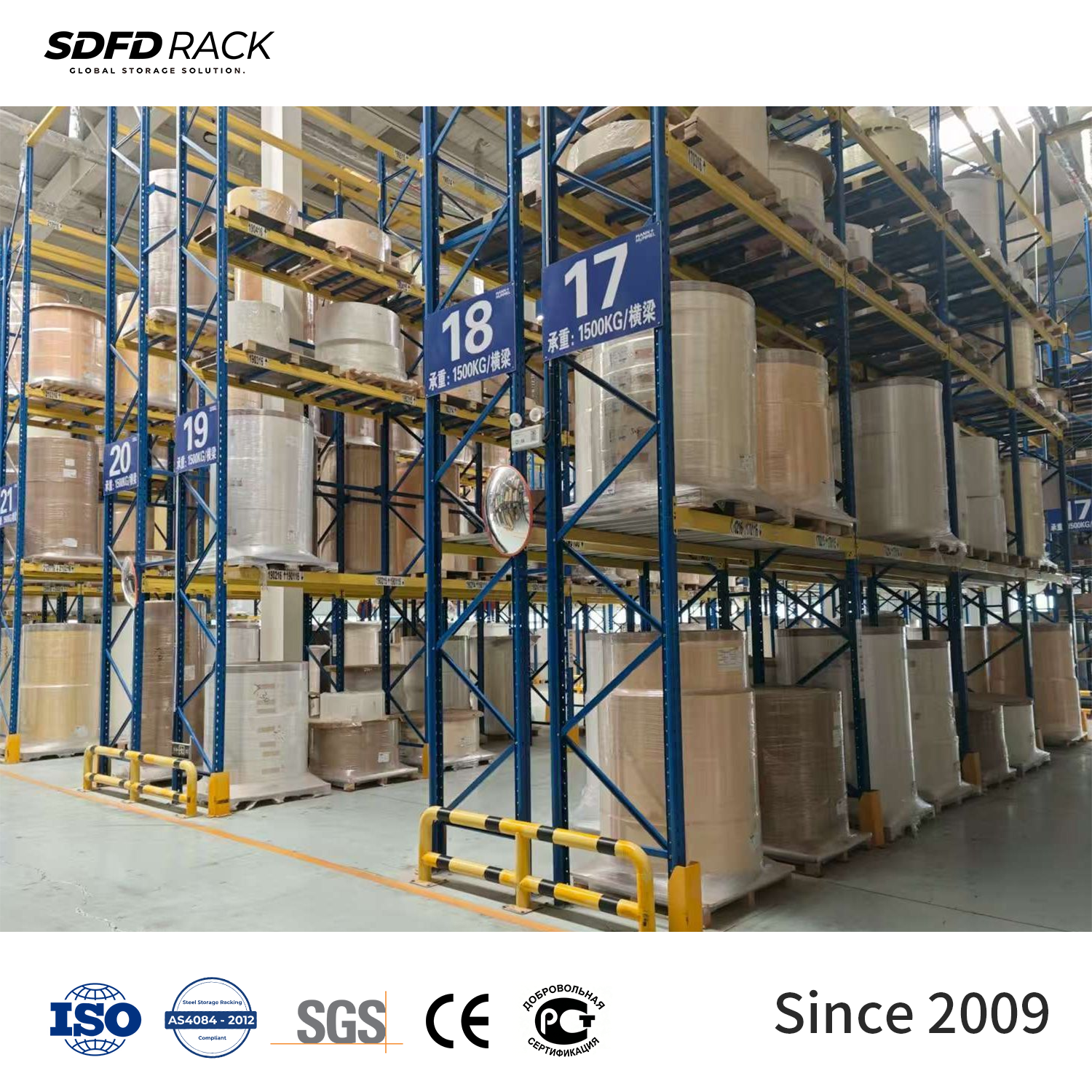

Selective pallet rack, also named beam rack or heavy-duty rack, is very common in various kinds of warehouse racks. The main components are an upright frame and beam; the structure is concise and effective. This is the most diversified warehouse rack and works with forklifts for pallets up and down. It is widely used by many manufacturers, E-commerce warehouses, third-party logistics, and distribution centers. It is suitable for many kinds of small bulk items and a variety of inventory.
The surface is treated with electrostatic spraying, offering advantages such as corrosion resistance, rust prevention, and a long service life.
Utilizing a high-specification C-shaped steel double-beam welded structure, it boasts superior bending strength compared to ordinary single beams.
Made of cold-formed steel plate with 21 folds for stronger load-bearing capacity. The surface features evenly distributed diamond-shaped or teardrop-shaped adjustable holes.
Diamond-shaped holes provide 75mm fixing hole spacing, while teardrop-shaped holes provide 50mm spacing. Customers can adjust the height of each layer as needed for maximum flexibility.
After the hooks are inserted into the column holes, they are locked again with bolts. This effectively prevents the crossbeam from falling off due to impact or vibration.
Horizontal supports and diagonal braces are installed every 2-3 layers of uprights, forming a triangular stability structure to prevent the shelving from tipping over.
High-strength steel anti-collision upright protectors are installed at column bottoms and passageway sides to absorb forklift impact, preventing column deformation.
| Type | Heavy-Duty Selective Pallet Rack |
| Material | Q235B Steel, Cold Rolled Steel |
| Certifications | CE, ISO9001, GOST |
| Color | Blue, Orange, Customizable |
| Beam Length | Customizable, Typically 2,000mm to 3,500mm |
| Rack Depth | Customizable, 1,000mm to 1,500mm |
| Rack Height | Customizable, typically 2,000mm to 12,000mm+ |
| Column Size | Customizable based on load requirements |
| Aisle Width | Typically 2.5m to 3.5m |
| Adjustability | Beams adjustable in 50mm/75mm increments |
| Environment | Normal Temperature or Cold Room (Max -40°C) |
Comparison of warehouse capacity improvement before and after implementation:
Our heavy-duty steel racks are suitable for manufacturing warehouses, e-commerce fulfillment centers, 3PL distribution centers, cold storage, food and beverage, hardware, auto parts, and pharmaceutical facilities.
With 16 years of experience in the warehouse racking manufacturing industry, we have provided professional warehousing solutions to over 12,000+ users worldwide. Our products are recognized across Europe, South America, Asia, and the Middle East.
