Customized Modular ASRS Storage Racking with High Load Capacity Optimizing Space in Automotive Parts Warehouses

Chinese Shuttle Rack Manufacturer Factory Metal Shelves Vertical Storage ASRS Warehouse Racking System Shelving Units

What is Automated Stacking Crane ASRS

The Industrial Pallet Racking System with Automated Stacking Cranes is a cutting-edge warehouse automation solution designed to optimize storage space and streamline operations. This system, equipped with a Stacker Crane ASRS, efficiently loads and unloads heavy items, providing high-density vertical storage for increased efficiency.

With a maximum capacity of 1500 kg per pallet load, it offers precise real-time inventory tracking through its WCS/WMS module. The Stacker Crane ASRS is highly adaptable and compatible with various equipment and locations, making it a versatile solution for warehouses of all sizes. Whether you need to store raw materials, finished products, or components, this system can meet your needs with ease. Upgrade your warehouse with this automated stacking crane system and experience improved productivity and organization.

Key Benefits of ASRS

Space Efficiency: By utilizing vertical space and reducing the number of access aisles, these systems can significantly increase the storage capacity within the same footprint.
Increased Productivity: The automation of storage and retrieval operations leads to faster throughput and improved productivity.
Reduced Labor Costs: With less reliance on manual labor for handling goods, companies can save on labor expenses.
Enhanced Accuracy and Traceability: Automated systems reduce the risk of errors in inventory management and provide better traceability of goods.
Customization and Scalability: Automated shelving systems can be customized to fit specific storage needs and can be scaled up or down as business requirements change.
Energy Efficiency: Many automated shelving systems are designed with energy-saving features, which can lead to lower operational costs.

Product Showcase

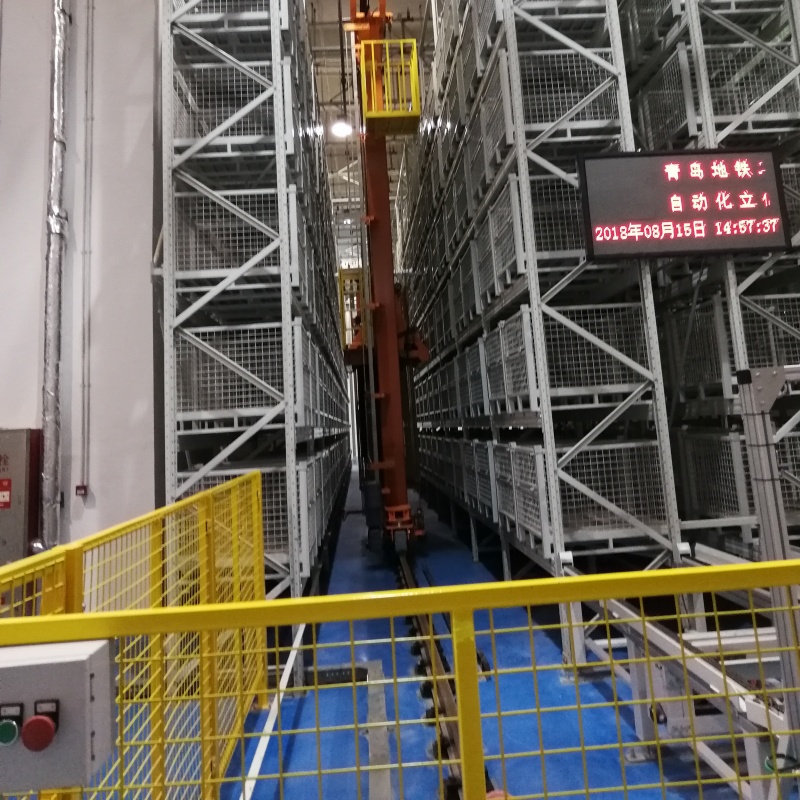

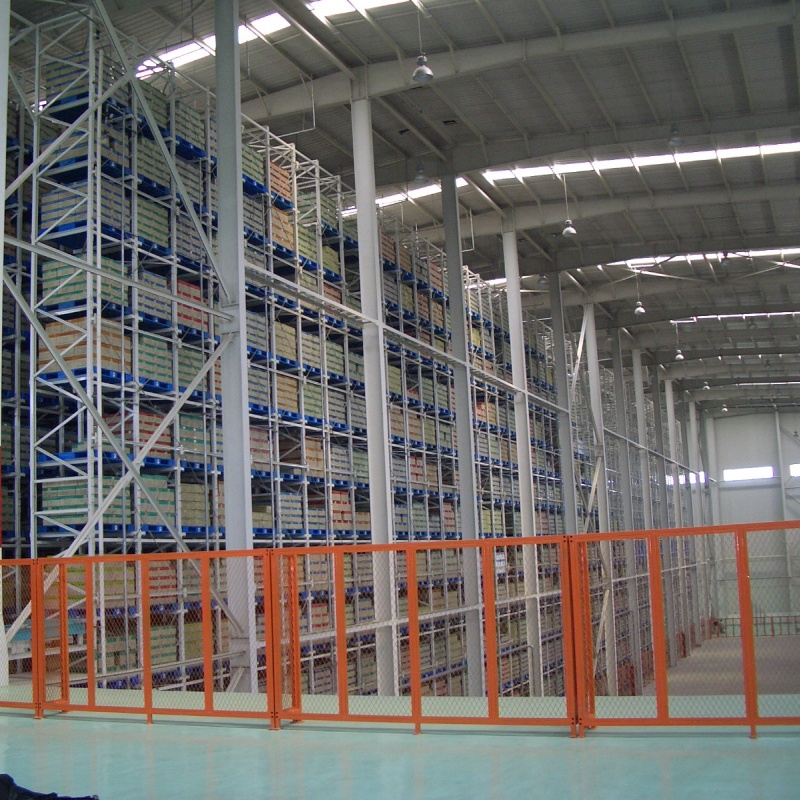

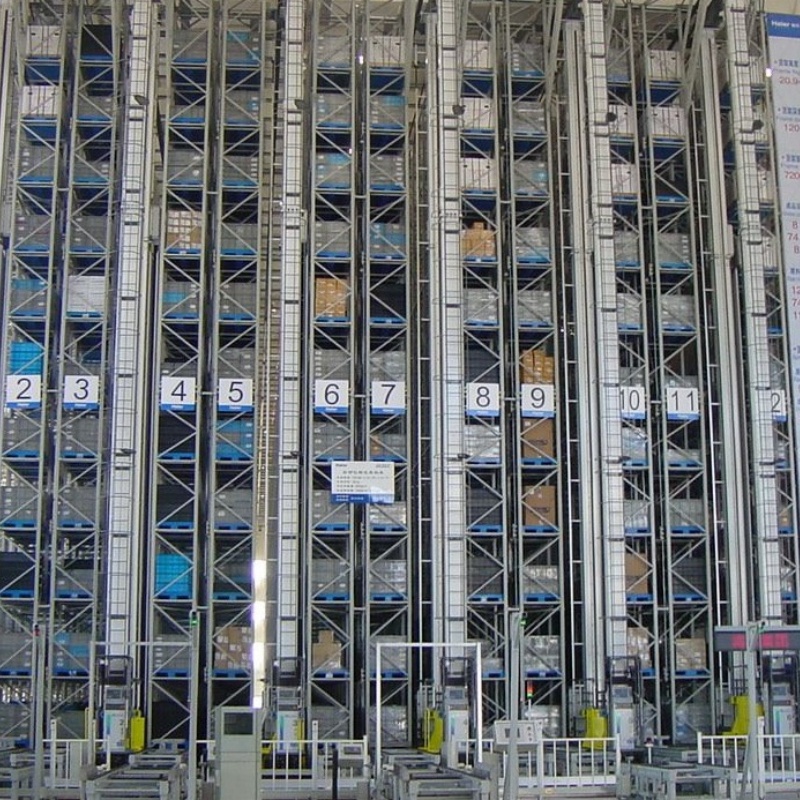

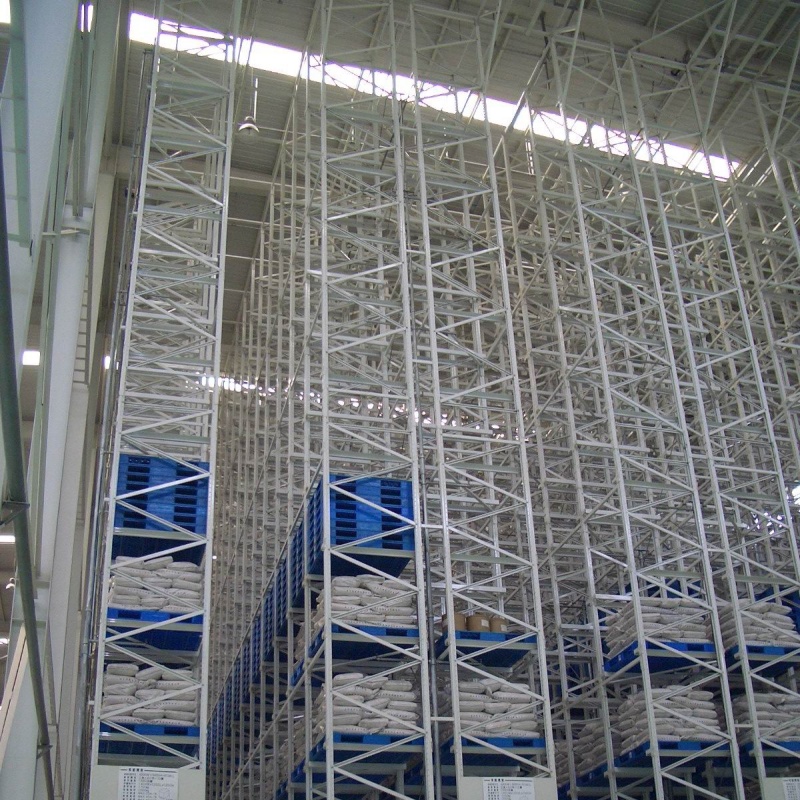

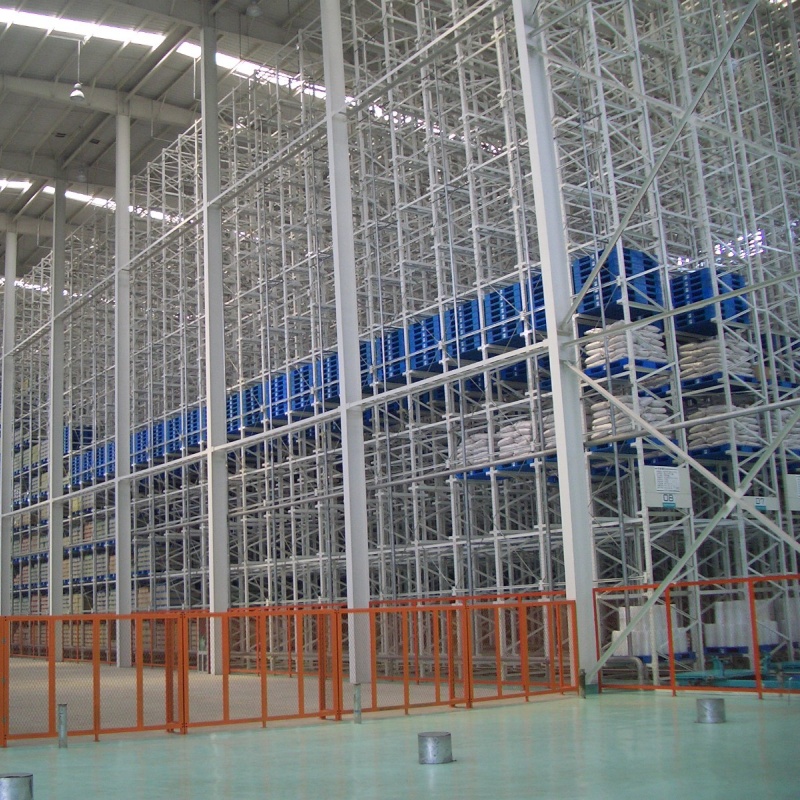

Automated Rack Warehouse

Automated warehouse system (AS/RS) consists of three-dimensional shelf, rail roadway stacker, pallet conveyor system, size detection for ins and outs of barcode reading system, communication system, automatic control system, computer monitoring and control system, computer management systems, and other auxiliary equipment such as wire and cable tray distribution cabinets, tray, adjustment platform, and steel structure platform.

Integrated Logistics Concept

Using the first-class integrated logistics concept, the use of advanced control, bus, communication and information technology, through the coordination of the above equipment for warehouse operations.

The shelves used in automated stereoscopic warehouse are usually beam shelves, ox legs shelves, mobile shelves, etc., which can be reasonably selected according to the shape size, weight and other related factors of the goods unit.

The pallet can use steel pallet with strong bearing capacity and good rigidity or plastic pallet. The beam can be designed according to the bearing size of the pallet. If the shelf is small, the beam can be removed and the plastic box can be placed on the leg. The laneway stacking crane runs through the laneway between the shelves to complete the work of storing and taking goods.

Heavy Duty Rack Applications

Automatic stereo library is widely used, mainly used in pharmaceutical, machinery, electronics, tobacco, food, chemical, printing, aerospace, logistics system, rail transit and other fields.

Product Parameters

Place of Origin	China Shandong
Type	ASRS Rack
Material	Q235B Steel
Use	Warehouse Rack
Guarantee period	Guaranteed
Product name	Heavy Duty Warehouse Shelves Racks
Usage	Warehouse Storage
Color	Orange, blue, can be customized.
Application	goods storage
Surface treatment	Powder Coating
Size	Customer Size
Packing	customize
Certification	ISO9001/CE

Purchasing Note

The following three points must be considered for the design of the racking system:

1. You must know your pallet size, into the cross direction, the pallet capacity, each pallet position requires the maximum weight of stored goods.
2. Your warehouse storage size, height, location of fire hydrants, exits, and so on.
3. Your forklift comprehensive data, the largest held high, the largest weighed, fork width.

Goods from the shelves and out of the same side, after the first deposit to take, take after the first deposit. It is relatively low investment costs for long horizontal size, fewer species, quantity, used to store a large number of the same pallets of goods, and thus a larger storage density higher utilization of space on the ground.

Factory Capabilities

With a monthly production capacity of up to 3,000 tons, we are the ideal choice for clients with large-scale projects and strict delivery requirements.
Our professional technical team can quickly provide you with the optimal solution, providing drawings, on-site measurements, and installation guidance.
We offer customized services. With a variety of materials, we can meet diverse specifications and load-bearing requirements based on your warehouse size and pallet conditions.

Standards & Quality

We hold SGS, ISO9001, and grinding test certifications, as well as numerous patents. We are a fully-fledged factory with strong R&D capabilities.
Our principles are sustainable development, integrity management, and safety first.
Our product quality, delivery time, and service have been recognized by customers worldwide.

Packaging & Shipping

Cargo Fixation

Ropes, straps, frames and other devices secure mezzanine rack components in transport to avoid movement/collision. Heavier parts use multi-layer reinforcement.

Vibration Damping

Rubber pads, foam boards and other shock absorbers are placed to absorb transit vibration, protecting the rack's surface coating from damage.

Rain & Moisture Protection

High-quality waterproof tarpaulins cover goods from rain. Desiccants are added during long trips to keep metal components dry and rust-free.

Company Profile

Founded in 2008, we are a professional manufacturer integrating the R&D, design, production, and installation of modern logistics technologies. Recognized as a specialized, innovative, and high-tech enterprise, the company boasts not only strong technical expertise and product development capabilities, but also advanced equipment such as cold-rolling lines for steel sections, automated powder coating lines, and automatic continuous punching lines for strip steel.

Our diverse product portfolio includes various types of racking, including pallet racking, heavy-duty racking, Medium-Duty Racking, asrs racking, drive-through racking, mezzanine racking, cantilever racking, wireless shuttle racking, vna racking, platform racking, flow racking, and long material racking. The company also provides comprehensive after-sales maintenance services. Our annual production capacity exceeds 20,000 tons, with an annual output value of 200 million RMB.

Our Factory

Our Office

Our Warehouse

Our Equipment

Our Services

Before Order

• Provide detailed free CAD drawing & quotation.
• Revise the solution until it suits you perfectly.
• Resolve your doubts during communication.
• Handle storage rack layout from simple to complex designs.

During Order

• Direct payment transaction support.
• Third-party transaction protection to protect customer interest.
• Order modifications remain negotiable before production begins.

After Order

• Detailed packing information and item lists provided.
• Loading process images and details shared on dispatch day.
• Installation drawings and step-by-step guidance manuals.
• Optional dispatch of professional installation crews for on-site setup.

Frequently Asked Questions

Are you a factory or trading company?

We are a manufactory specialized in producing high-quality storage racks.

What raw materials do you use for your products?

The standard raw material for normal temperature warehouses is carbon steel Q235B. For cold storage systems operating at minus 18 degrees Celsius or lower, we adopt high-strength Q345D steel. Other steel grades can be customized to suit your requirements.

Do you have a minimum order quantity (MOQ) limitation?

No, we do not require a strict MOQ for most of our standard products. However, a 1x20ft container order is typically recommended to optimize transportation cost efficiency.

What packaging standards do you use?

We use standard export packaging. Components are bundled with packing tape in secure stacks and covered with protective plastic film. Steel panels for medium-sized shelves are packed in cartons and reinforced with structural straps.

What are your accepted terms of payment?

We welcome both T/T (Telegraphic Transfer) and L/C (Letter of Credit) payment methods.

How is the racking installation handled?

We provide comprehensive installation videos and detailed structural drawings. If required, we can send technical engineers to assist with installation guidance or assign an expert crew to execute the installation on-site.
