The Industrial Pallet Racking System with Automated Stacking Cranes is a cutting-edge warehouse automation solution designed to optimize storage space and streamline operations. This system, equipped with a Stacker Crane ASRS, efficiently loads and unloads heavy items, providing high-density vertical storage for increased efficiency. With a maximum capacity of 1500 kg per pallet load, it offers precise real-time inventory tracking through its WCS/WMS module.

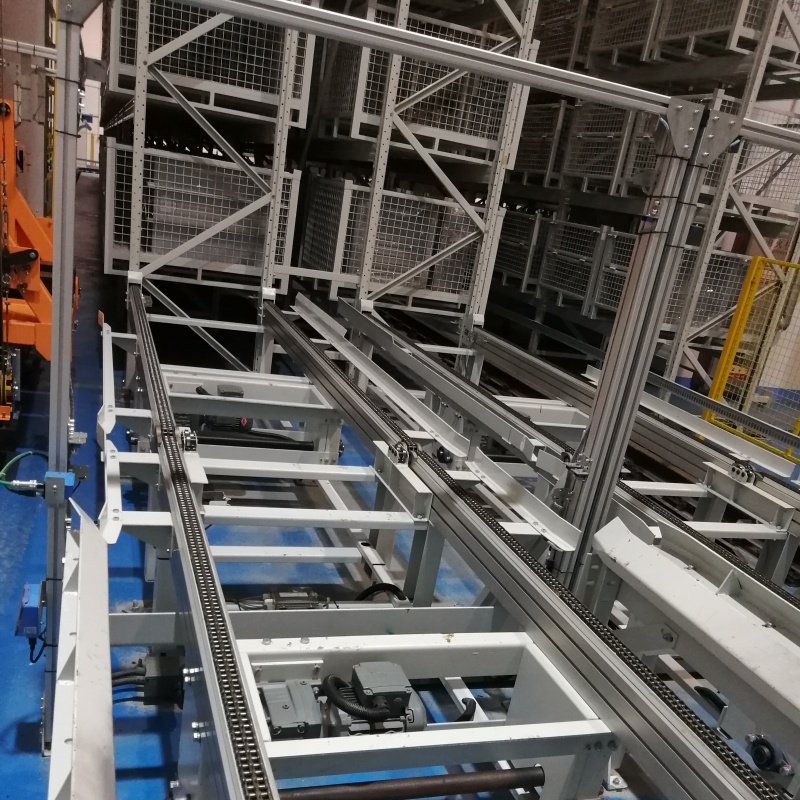

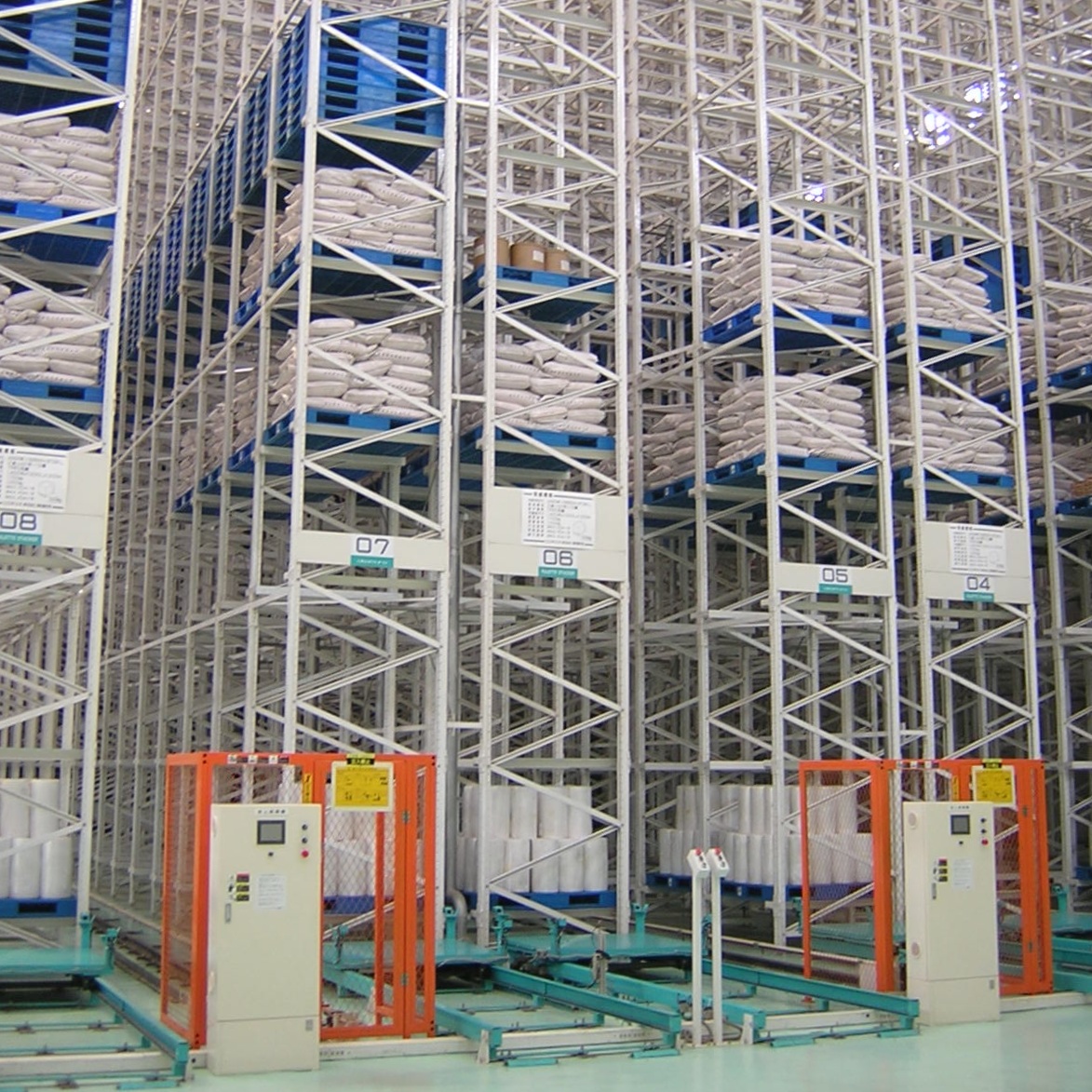

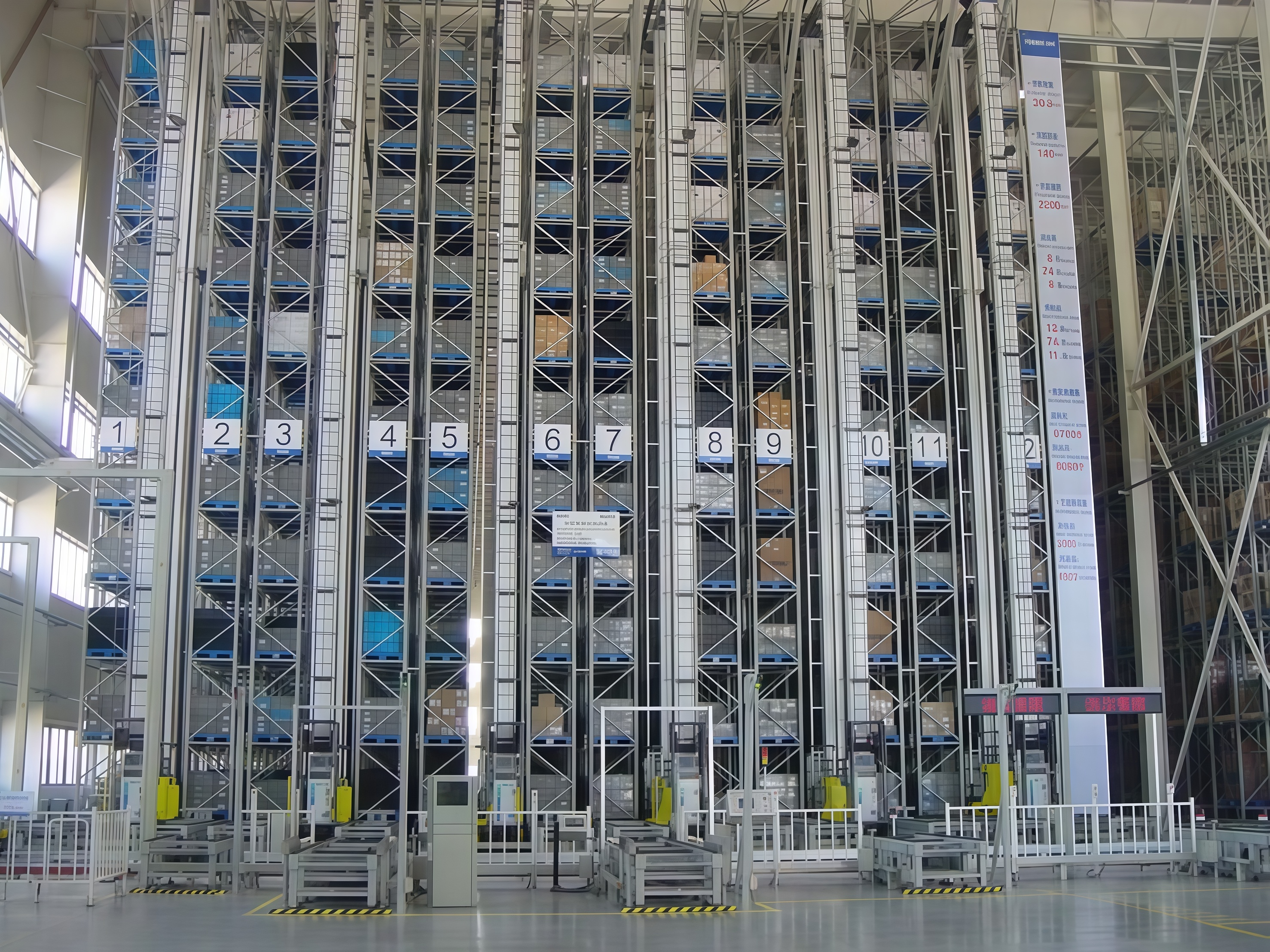

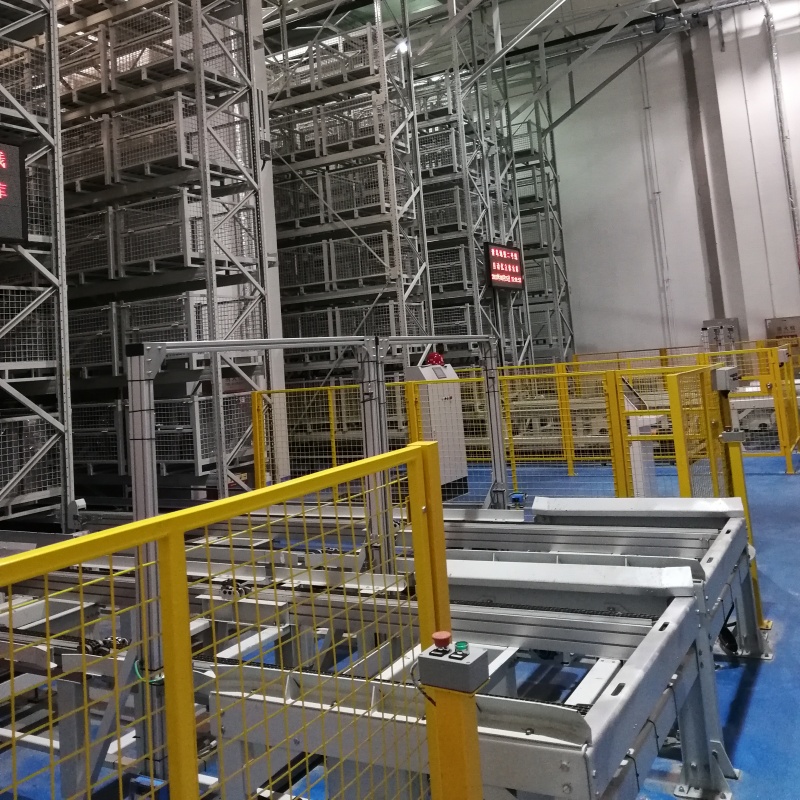

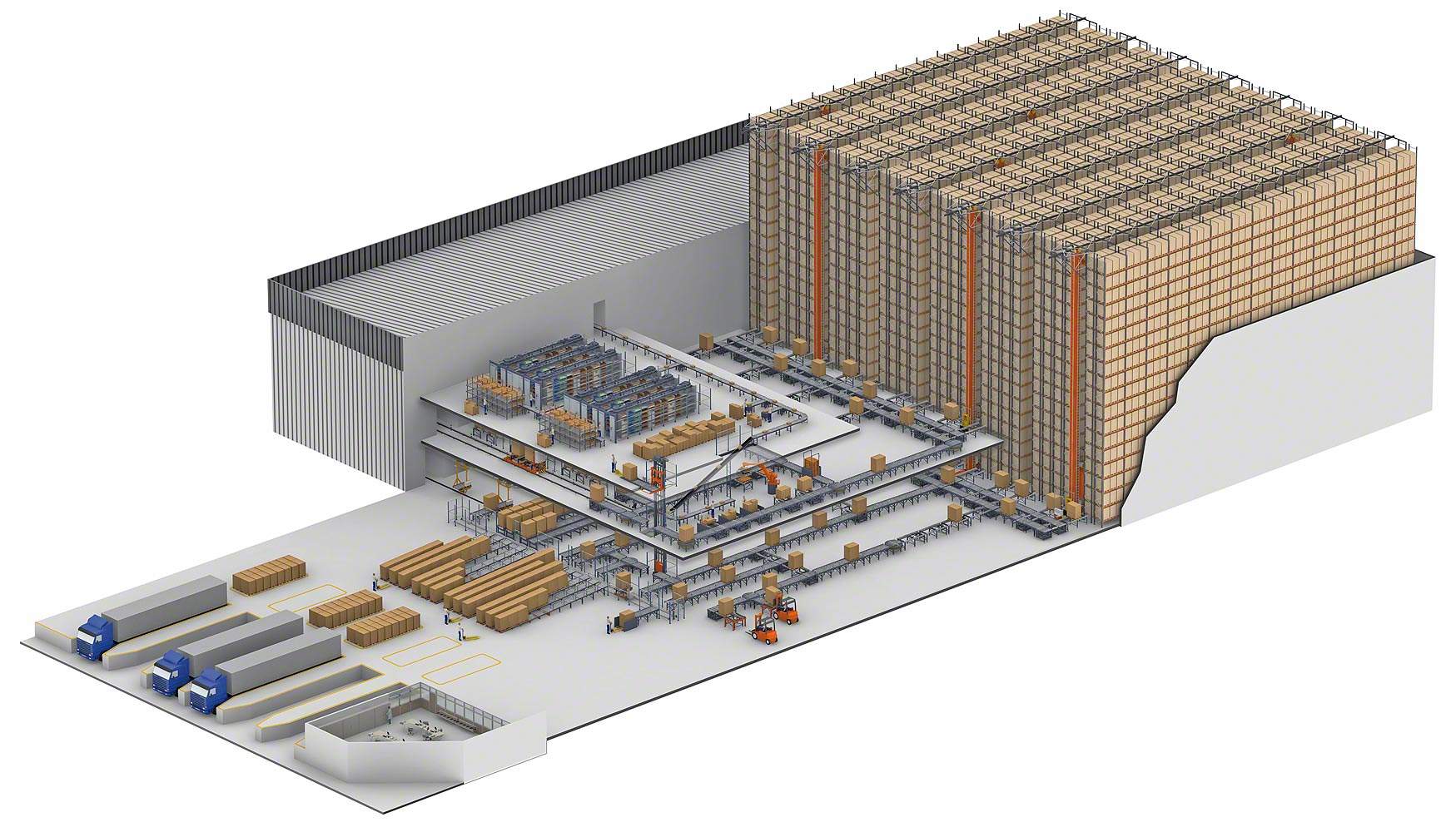

Automated warehouse system (AS/RS) consists of three-dimensional shelf, rail roadway stacker, pallet conveyor system, size detection for ins and outs of barcode reading system, and automated control systems. It integrates computer monitoring and management modules with auxiliary equipment like wire trays and adjustment platforms to form a complex automation system.

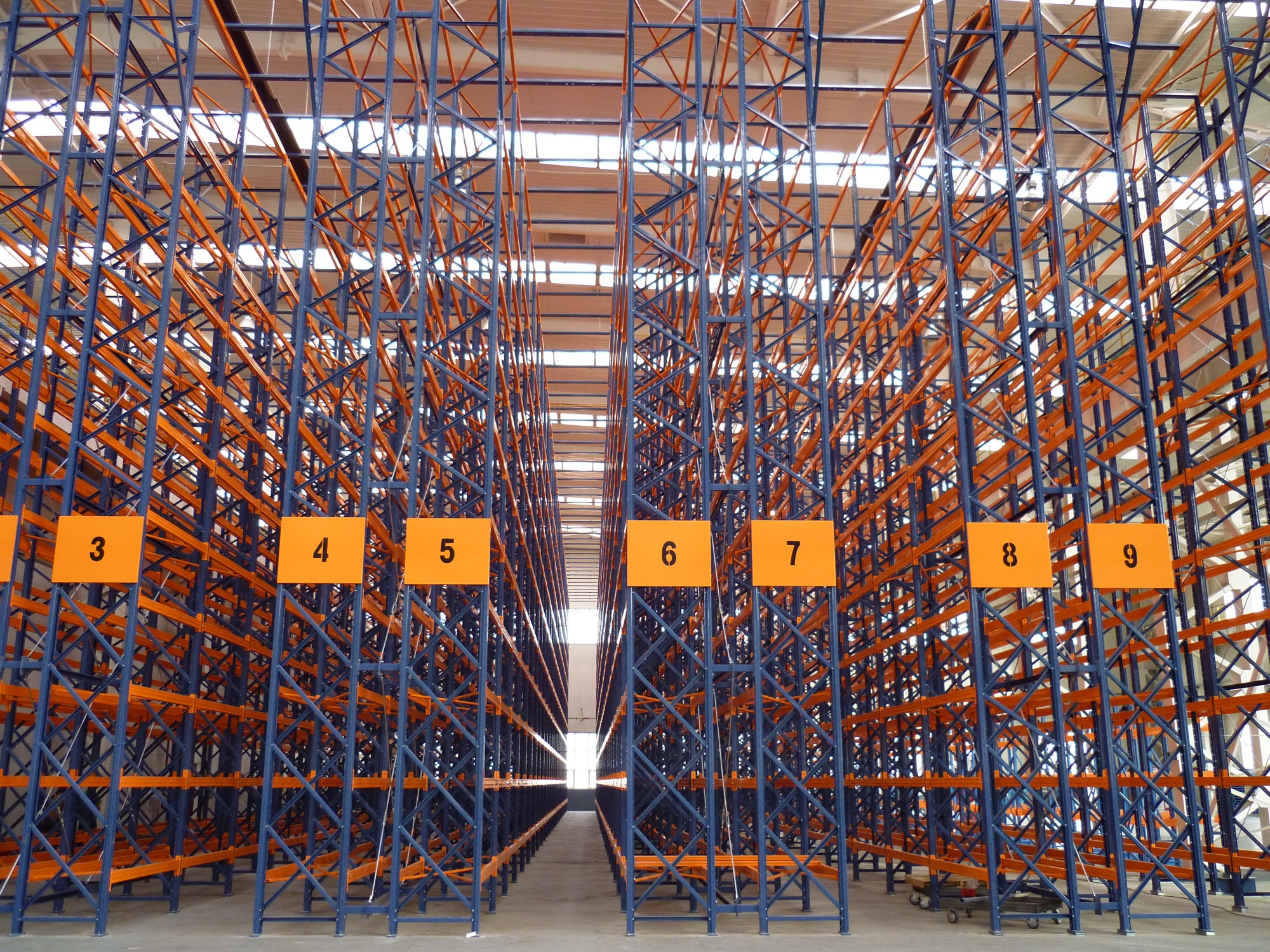

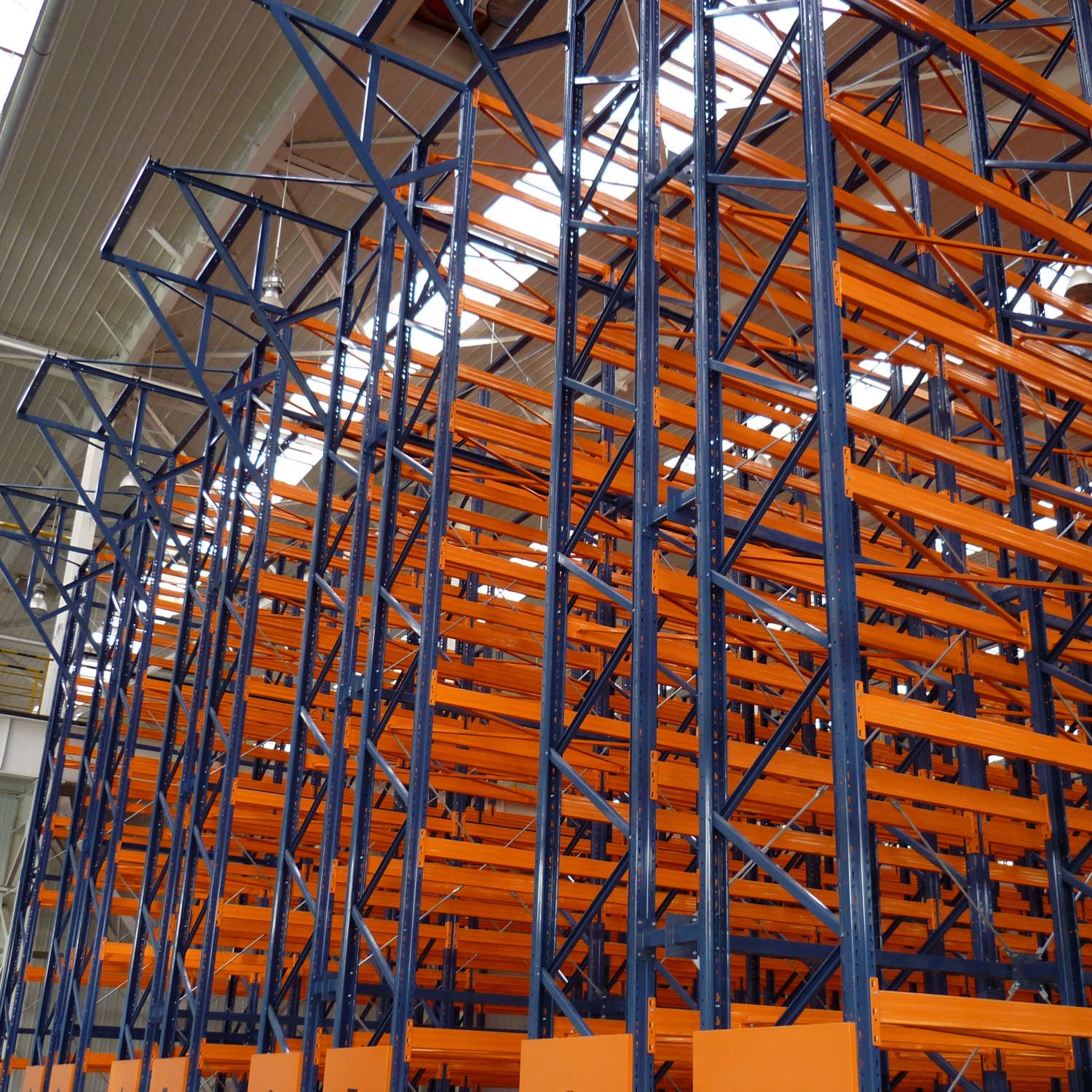

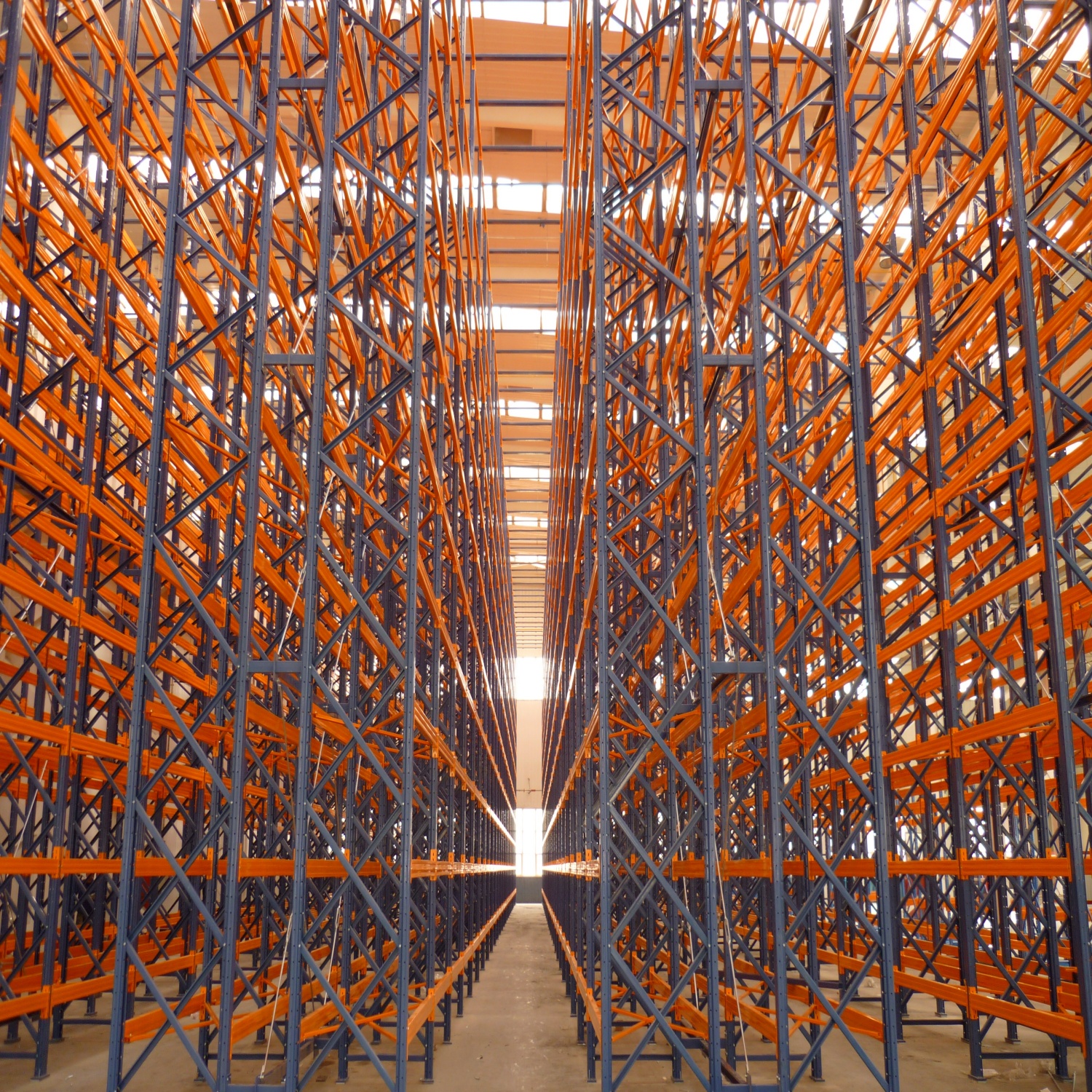

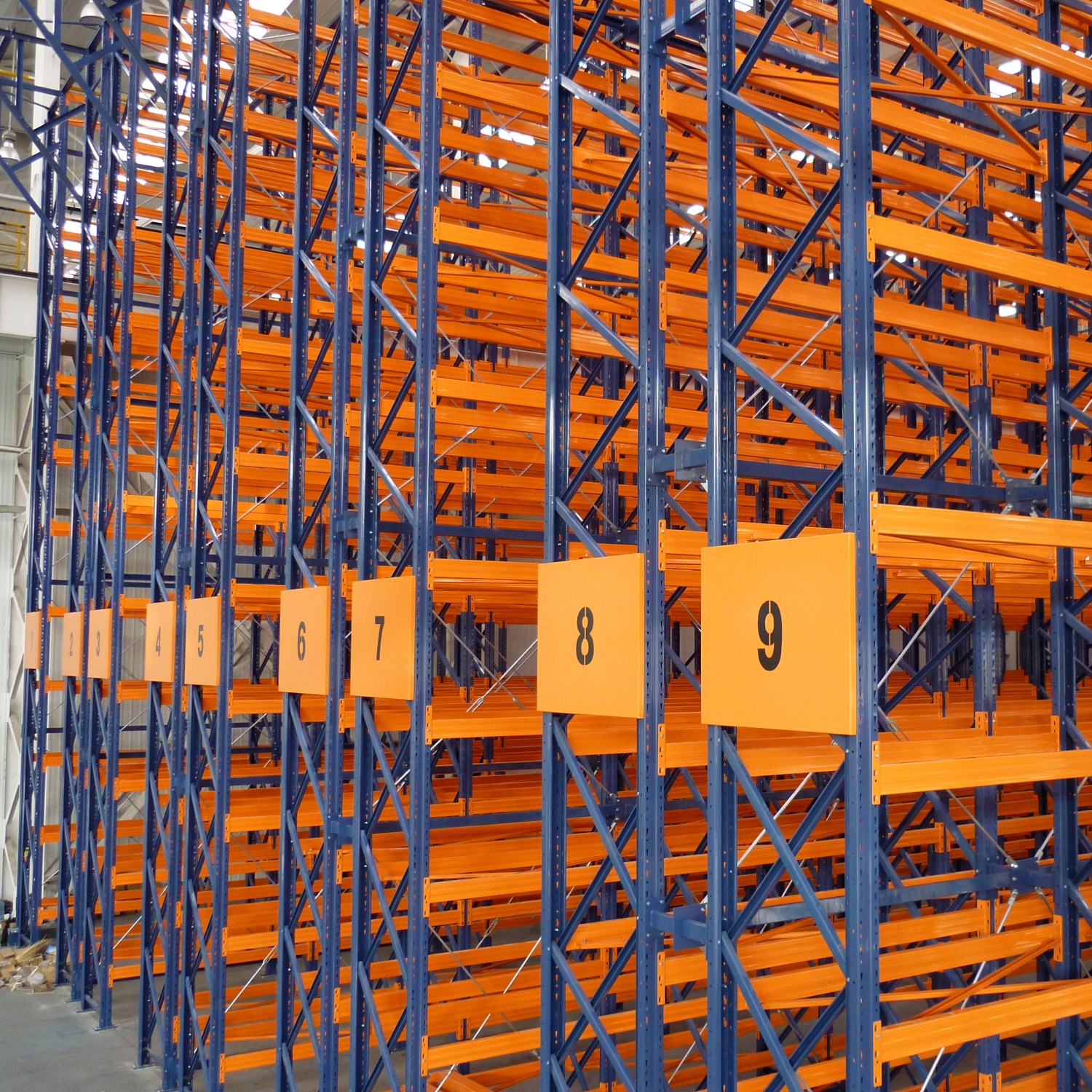

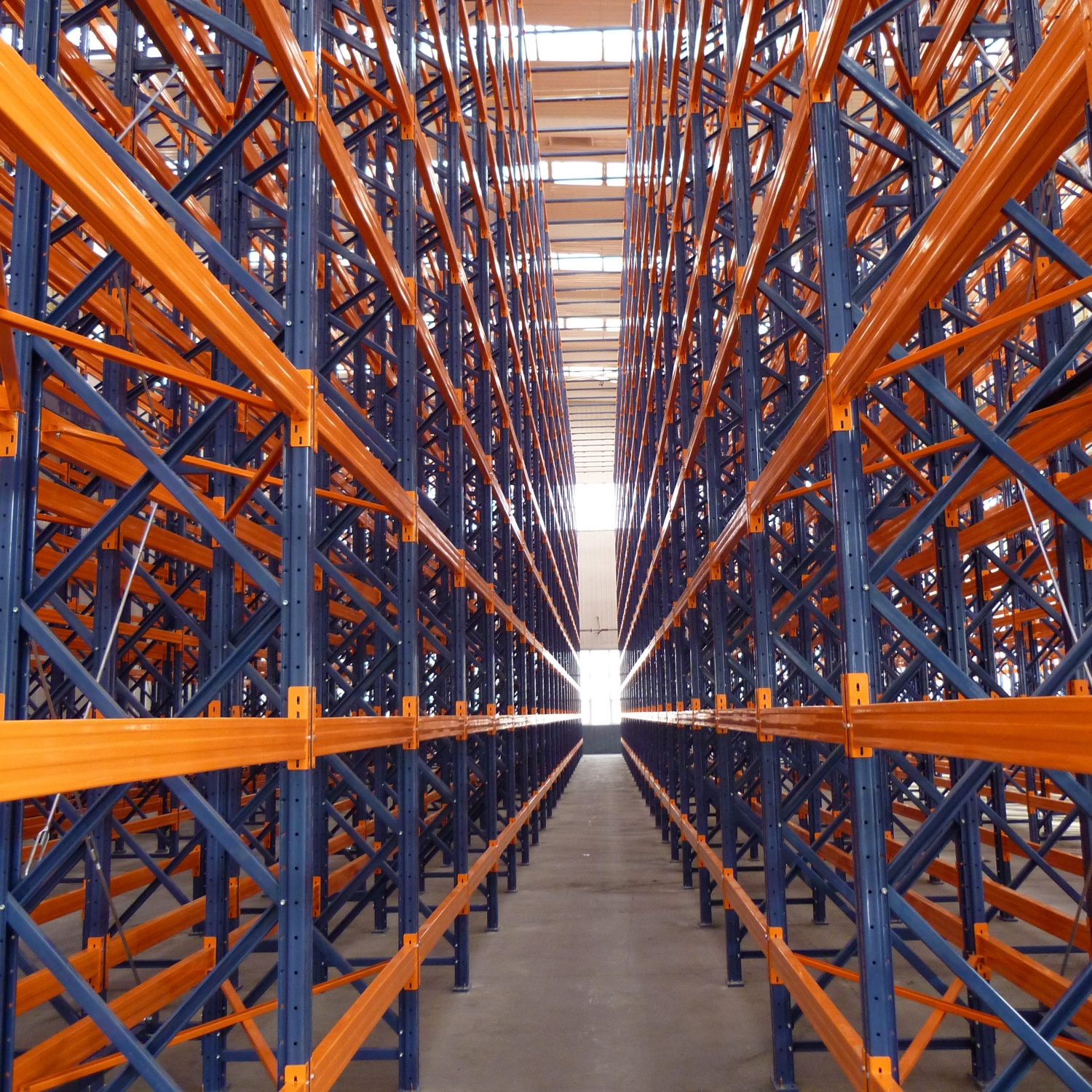

The shelves used in automated stereoscopic warehouse are usually beam shelves, ox legs shelves, or mobile shelves, selected based on the size and weight of the goods. Advanced bus communication and information technology coordinate the equipment for seamless warehouse operations.

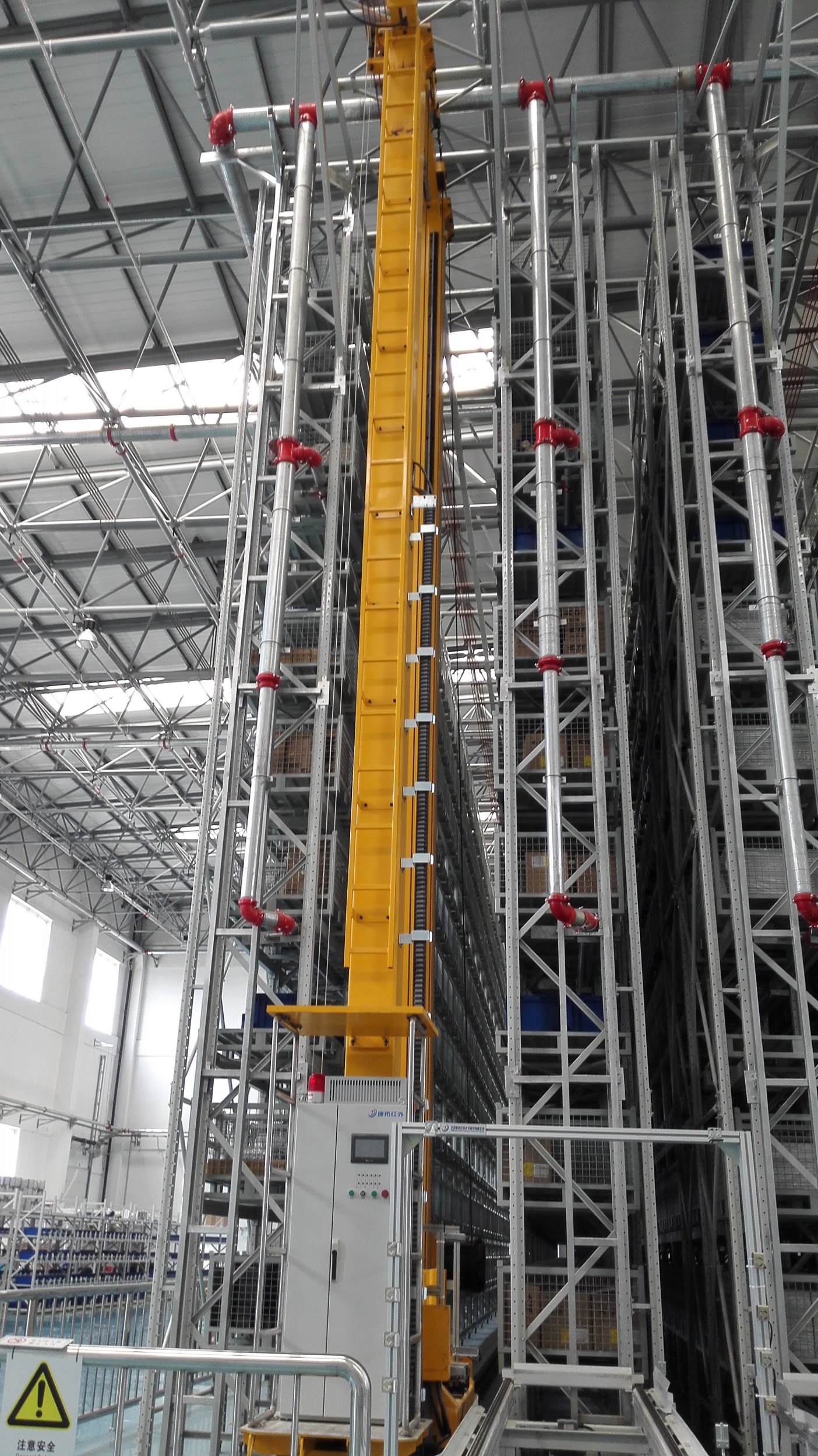

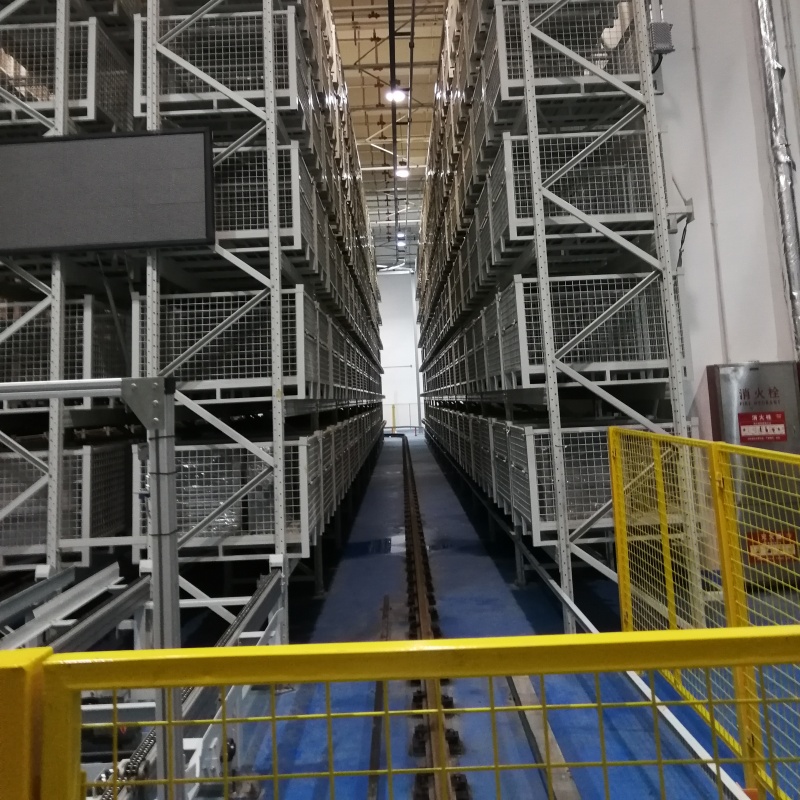

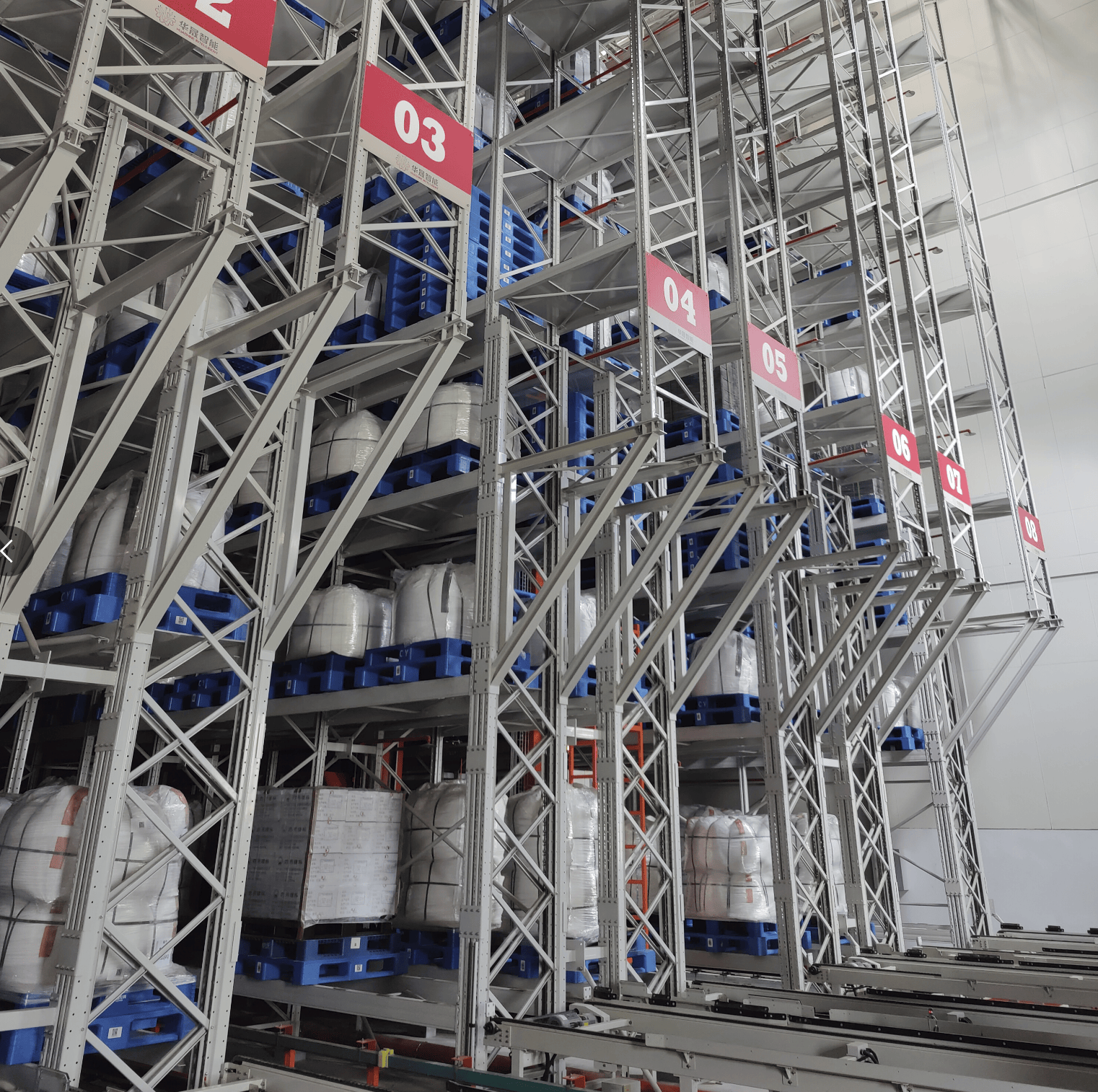

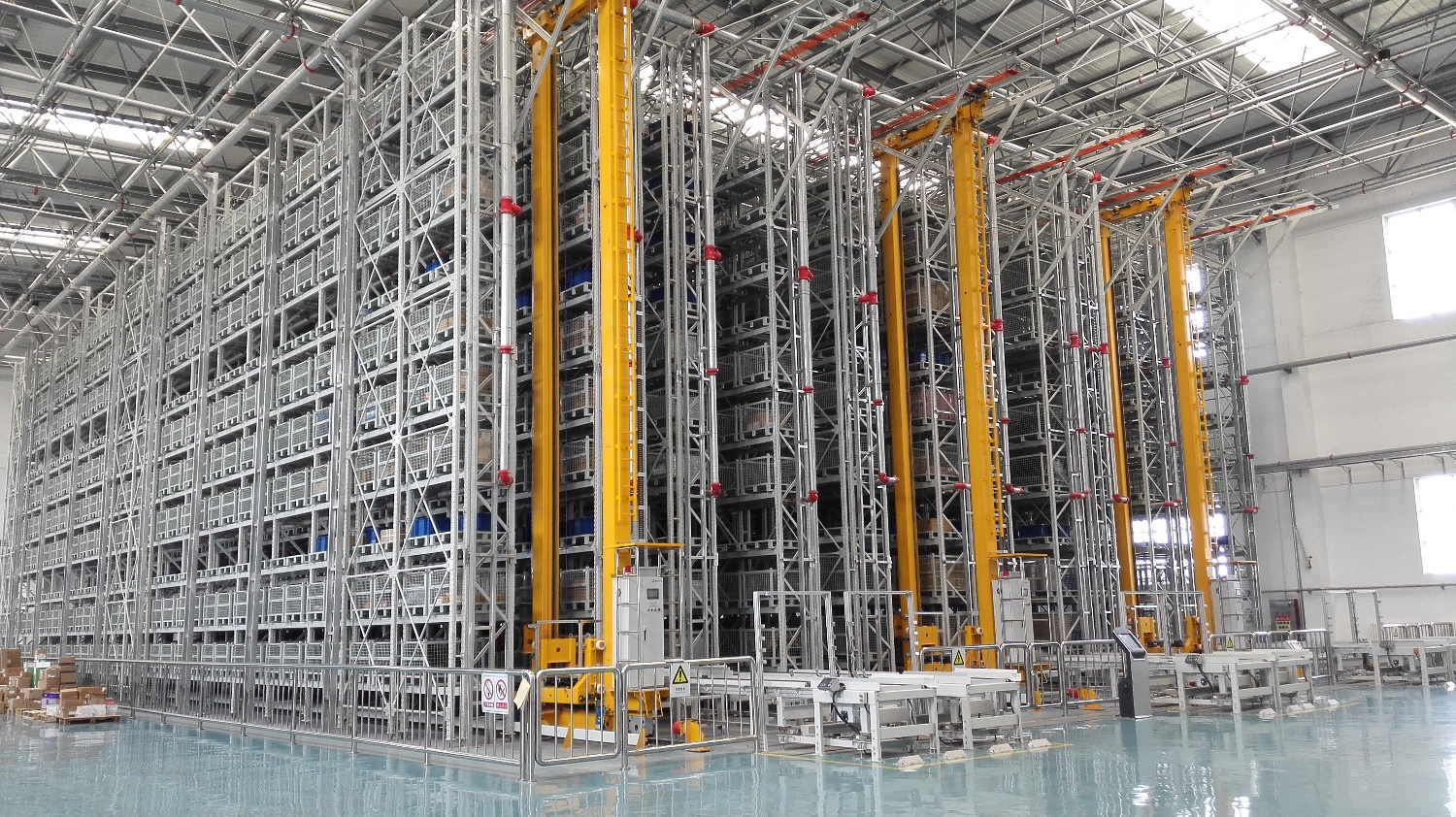

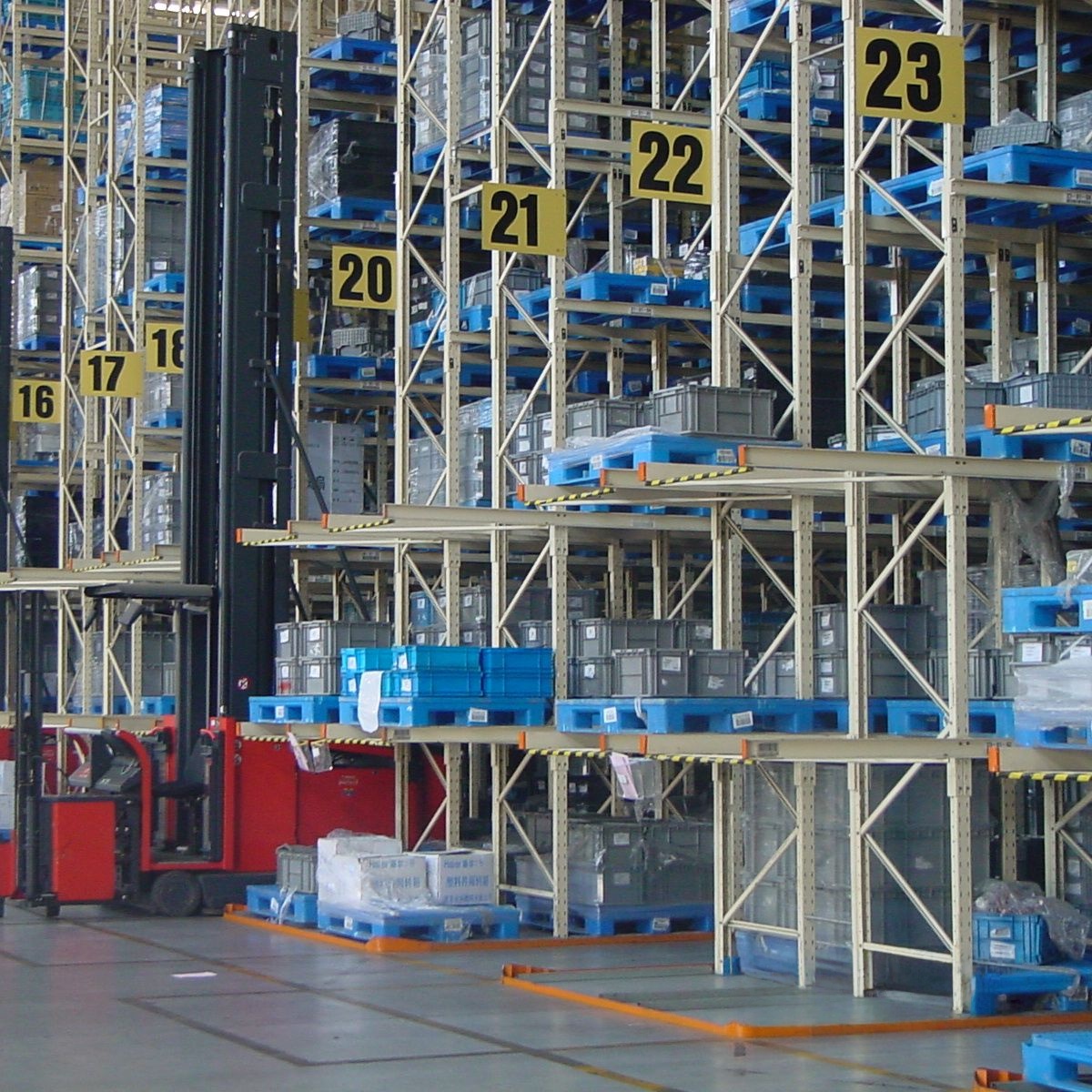

Pallets can be high-bearing steel or rigid plastic. For smaller units, beams can be replaced by specialized plastic boxes. The laneway stacking crane runs between shelves to complete high-speed storage and retrieval tasks.
Automatic stereo libraries are widely used in pharmaceutical, machinery, electronics, tobacco, food, chemical, printing, aerospace, logistics systems, and rail transit fields.
| Type | ASRS Rack |
| Material | Q235B Steel |
| Use | Warehouse Storage |
| Load Capacity | Up to 1500kg per pallet |
| Surface treatment | Powder Coating |
| Color | Orange, Blue, or Customized |
| Size | Customized to Requirements |
| Certification | ISO9001 / CE |
1. Must provide pallet size, cross direction, pallet capacity, and maximum weight per position.
2. Warehouse storage dimensions (height, hydrants, exits) are required.
3. Forklift data (lift height, weight capacity, fork width) is essential for design.
Cargo Fixation: Ropes and frames secure components to avoid collision.
Vibration Damping: Foam and rubber pads absorb transit shocks.
Moisture Protection: Waterproof tarpaulins and desiccants prevent rust.
