Durable Steel VNA Pallet Rack Heavy Duty 5-Layer Custom 800-3000kg High Load Capacity Narrow Aisle Racking System for Warehouse

1 / 5

Durable Steel VNA Pallet Rack Heavy Duty 5-Layer Custom 800-3000kg High Load Capacity Narrow Aisle Racking System for Warehouse

Send Inquiry

Product Description

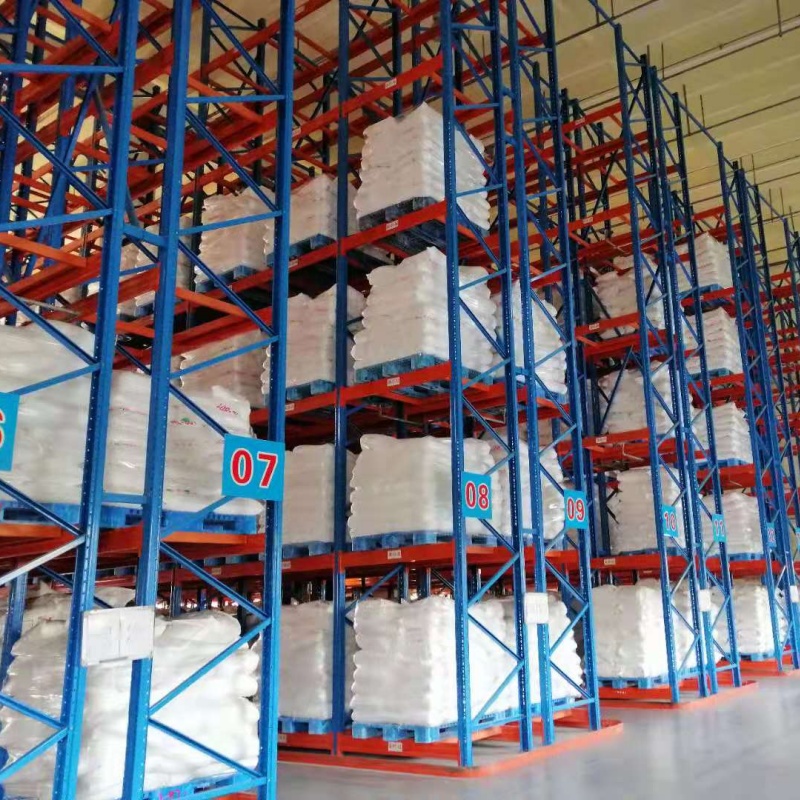

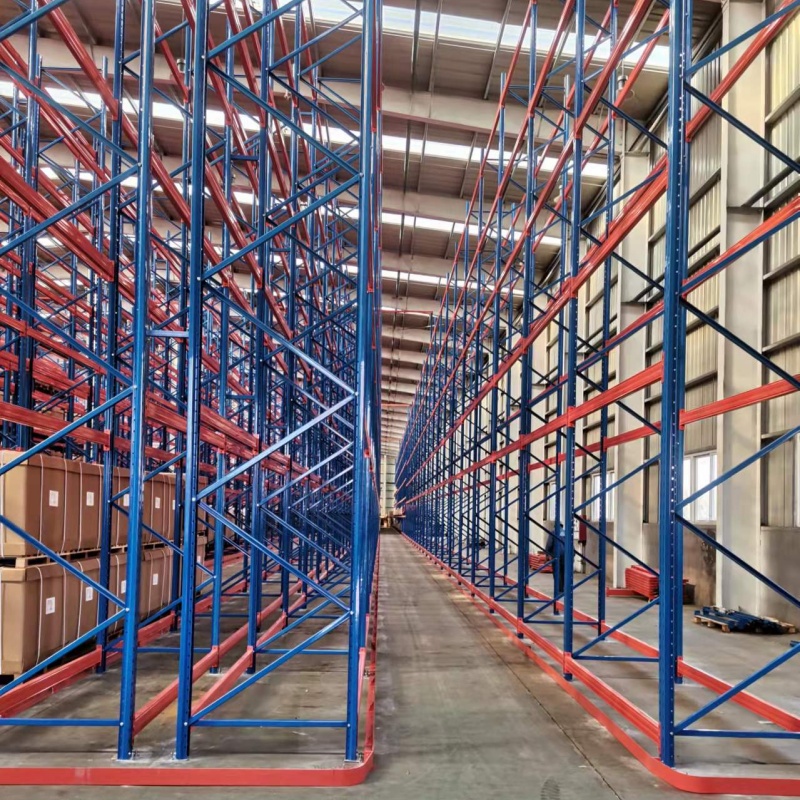

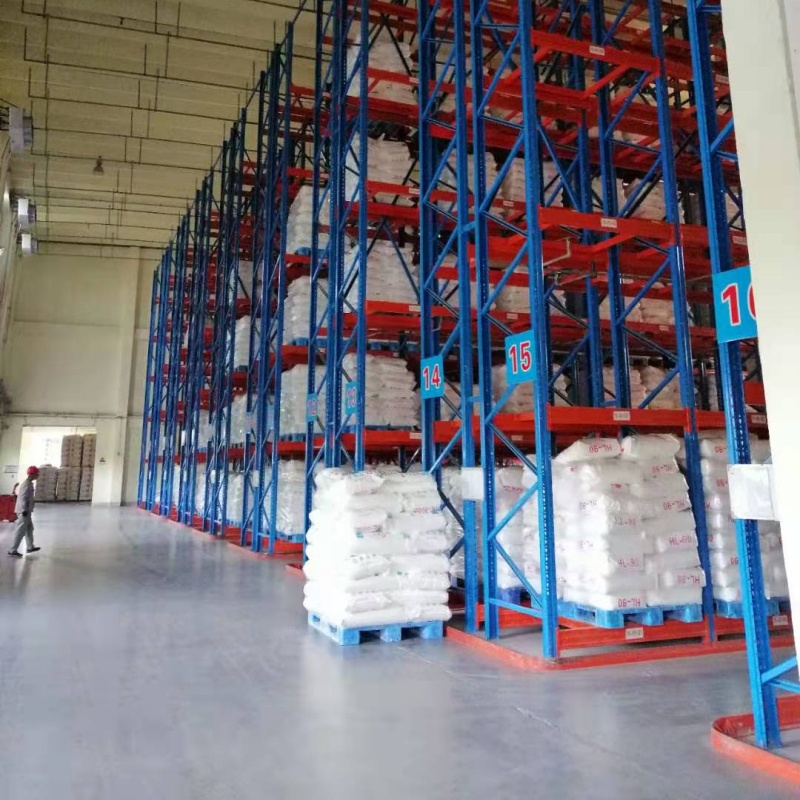

Vertical VNA Racking System

The narrow aisle racking system is a specialized warehouse storage pallet racking solution. Its forklift handling channel is significantly narrower than traditional systems, often referred to as a VNA (Very Narrow Aisle) pallet racking system. This design provides rapid storage efficiency and exceptionally high storage density, delivering significant production efficiency and cost-effectiveness for industrial users.

Narrow aisle racking is a high-density storage system designed specifically for warehouses with large spaces, utilizing three-way stacker trucks for operation.

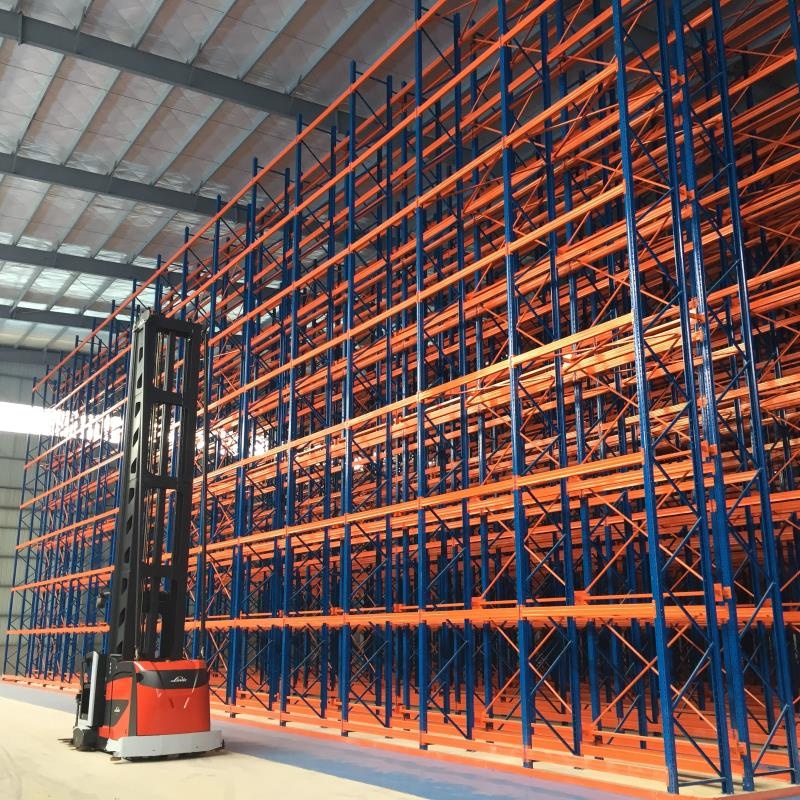

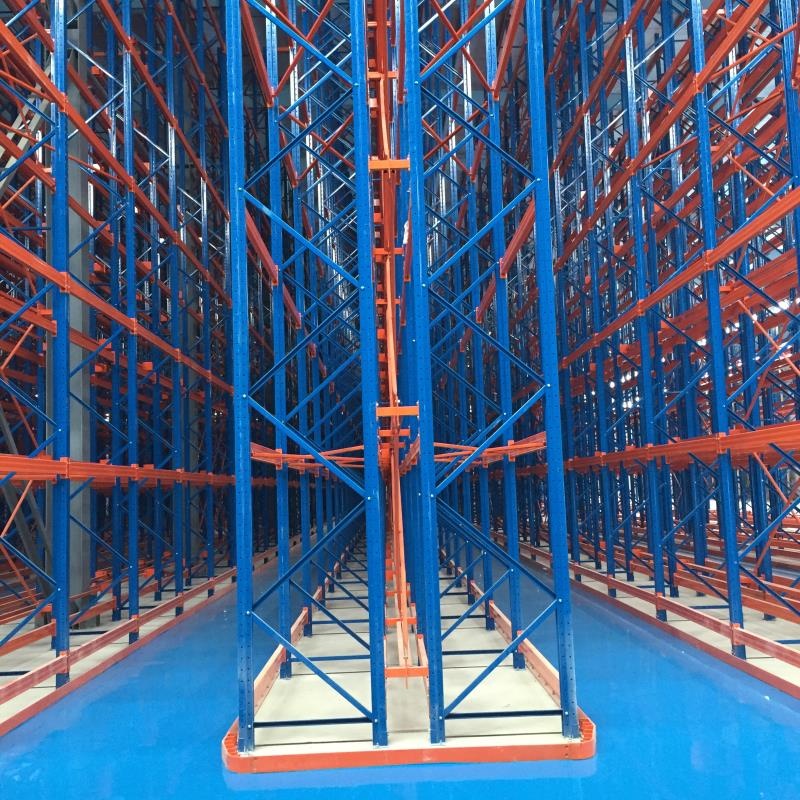

The three-way stacker truck's moving rails are installed on the floor below the racking. The aisle width is only 1.6-2.4 meters, much narrower than the 3-4 meters required for traditional racking. It can reach heights of 8-15 meters, fully utilizing vertical space and achieving a storage density 30%-50% higher than traditional systems. It supports a first-in, first-out (FIFO) inventory flow, ideal for food, daily chemical, e-commerce, and manufacturing industries.

Advantages of Narrow Aisle Racking

Optimized Density: Narrow aisles significantly improve overall warehouse storage capacity.
Cost Efficiency: Reduces aisle space and lowers unit storage costs.
FIFO Support: Facilitates first-in, first-out access to prevent inventory backlog.
Vertical Maximization: Fully utilizes vertical space up to 15 meters, eliminating the need for warehouse expansion.
Safety & Precision: Dedicated forklift assistance ensures smoother access to goods in narrow spaces.

Product Parameters

Place of Origin	China
Material	Q235B Steel
Type	Multi-Level / VNA
Application	Warehouse Storage & Logistics
Load Capacity	100 ~ 1000 kgs per level
Height/Width	Customized as per request
Surface Treatment	Professional Powder Coating
Upright Column	Structural H Steel, Roll-formed Post
Floor Type	Interlock Powder Coated / Galvanized Grating
Certifications	ISO9001 / CE

Why Choose Our Solutions

Massive Capacity: Monthly production up to 3,000 tons for large-scale projects.
Expert Technical Team: Quick optimal solutions including drawings and installation guidance.
Full Customization: Diverse materials to meet specific load-bearing and size requirements.
Certified Quality: Holding SGS, ISO9001, and multiple design patents.

Packaging & Shipping

Cargo Fixation

Ropes, straps, and frames secure components to prevent movement or collision during transport. Multi-layer reinforcement is used for uprights and beams.

Vibration Damping

Rubber pads and foam shock absorbers are used to protect the rack's surface and structure from transit vibrations.

Moisture Protection

High-quality waterproof tarpaulins and desiccants keep metal components dry and rust-free during long-distance shipping.

Manufacturing Excellence

Founded in 2008, the facility is a professional manufacturer integrating R&D, design, production, and installation of modern logistics technologies. Equipped with automated cold-rolling lines, powder coating lines, and continuous punching lines, the annual production capacity exceeds 20,000 tons.

Our Professional Services

Before Order

Free CAD drawings and detailed quotations. Flexible solution revisions to perfectly suit your warehouse requirements.

During Order

Secure transaction options. Professional production management and transparent communication on progress.

After Order

Detailed packing lists, loading photos, and full installation support including drawings and site guidance.

Frequently Asked Questions

Q1: What is the main advantage of VNA racking compared to standard racking? VNA (Very Narrow Aisle) racking reduces aisle width to 1.6-2.4m, increasing storage density by 30-50% while maintaining 100% selectivity.

Q2: What raw materials are used for the racks? We primarily use high-quality carbon steel Q235B. For cold storage environments (-18°C or lower), we utilize Q345D steel.

Q3: How are the products packaged for international shipping? Items are stacked regularly, secured with packing tape, covered in plastic film, and protected with shock absorbers to prevent transit damage.

Q4: What is the typical delivery time for an order? Delivery usually takes 15 to 30 days after receiving the deposit, depending on the order quantity and specific racking types.

Q5: Do you provide installation support? Yes, we provide detailed installation drawings and videos. We can also send engineers or installation teams to guide the process on-site if needed.

Q6: Is there a Minimum Order Quantity (MOQ)? We do not have a strict MOQ for most products, but a 20ft container is recommended to optimize shipping costs.
