The narrow aisle racking system is a specialized warehouse storage solution designed to maximize space efficiency. Known as the Very Narrow Aisle (VNA) pallet racking system, it features handling channels that are significantly narrower than traditional systems. This high-density storage configuration delivers exceptional production efficiency and cost-effectiveness by utilizing vertical space and reducing wasted aisle areas.

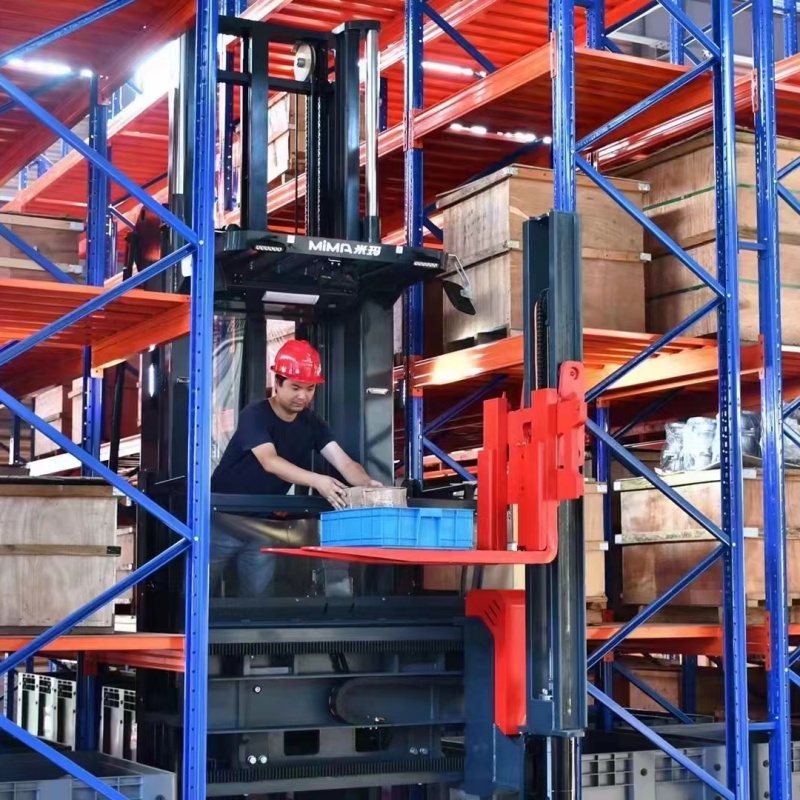

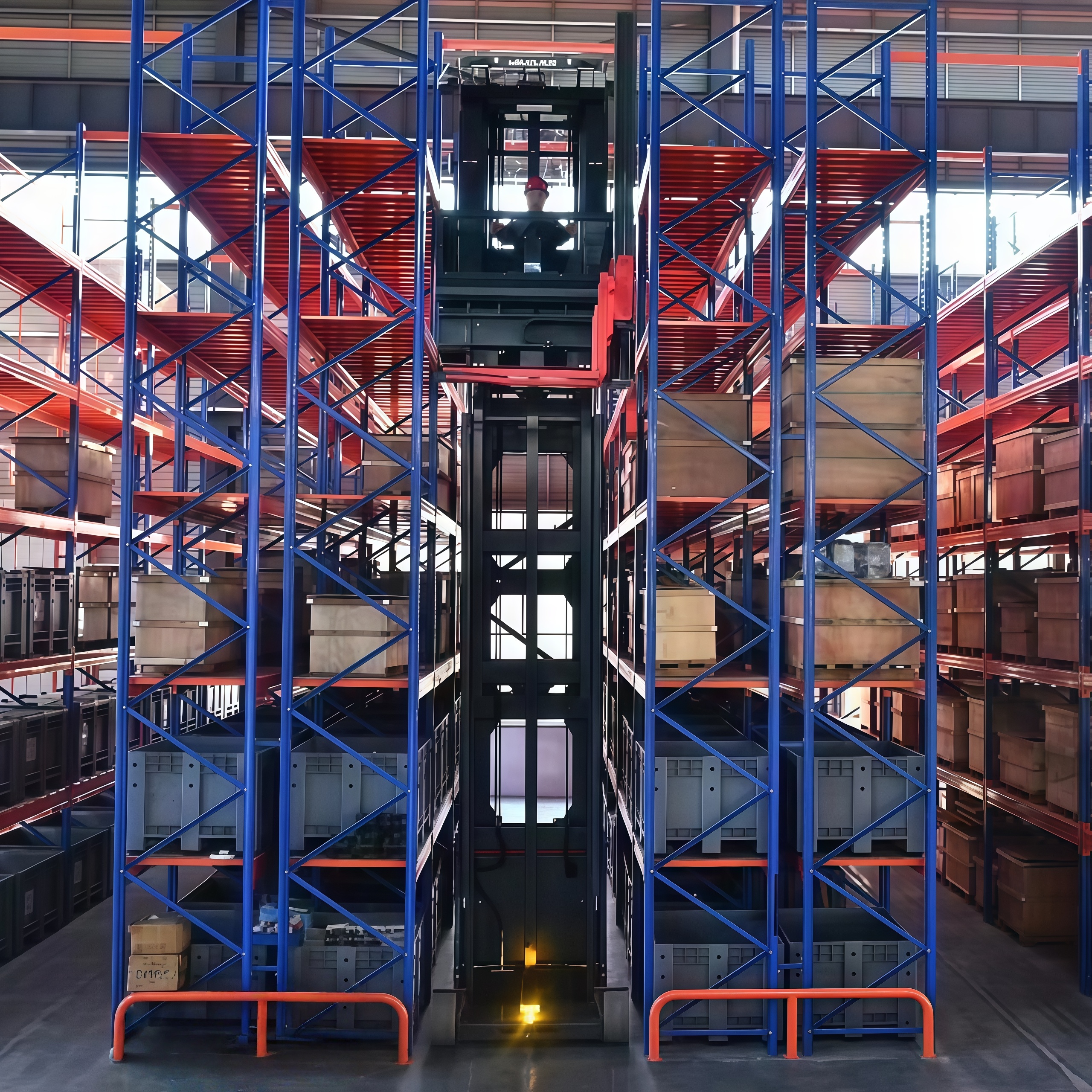

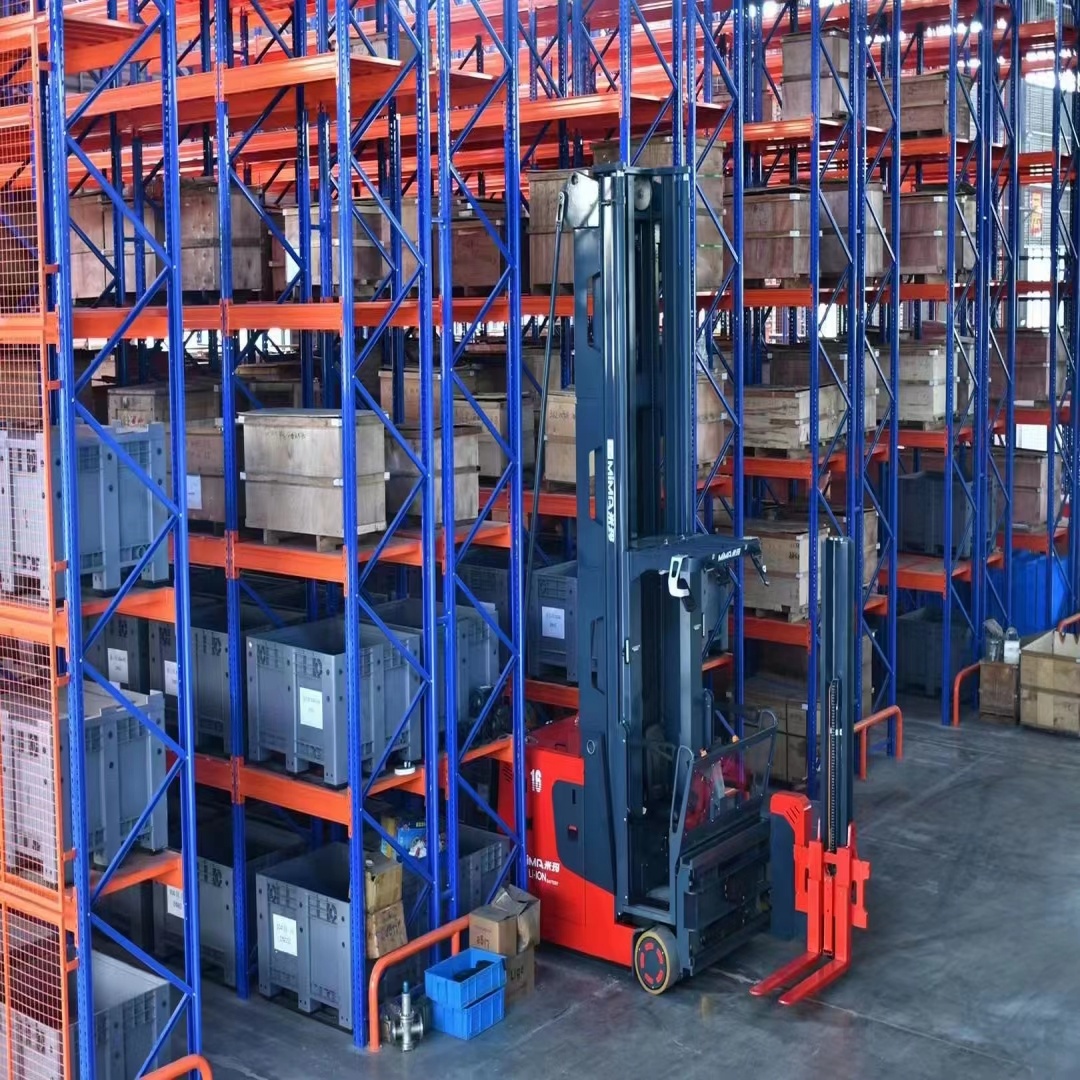

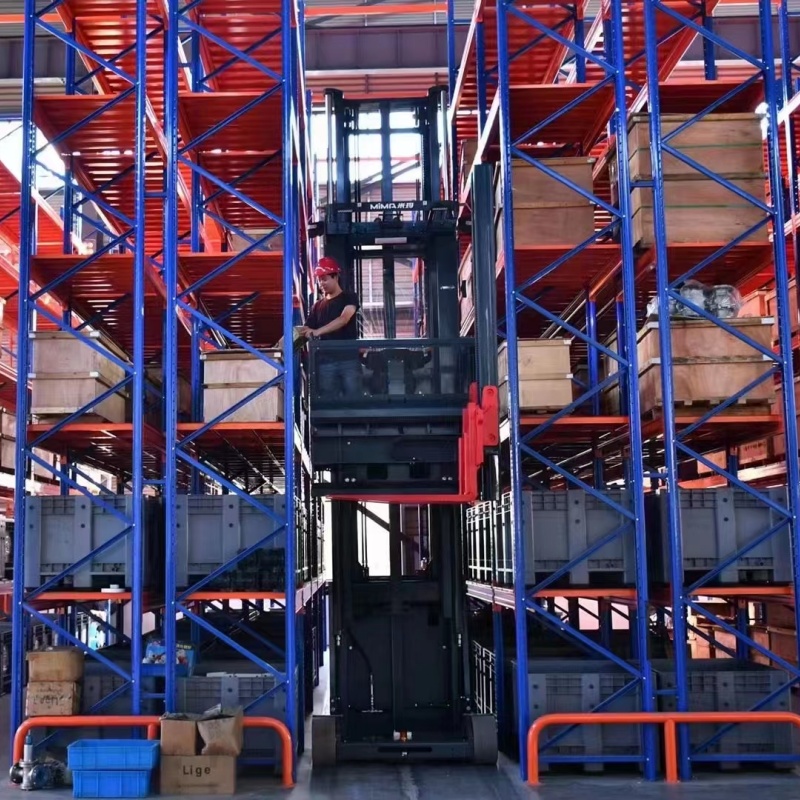

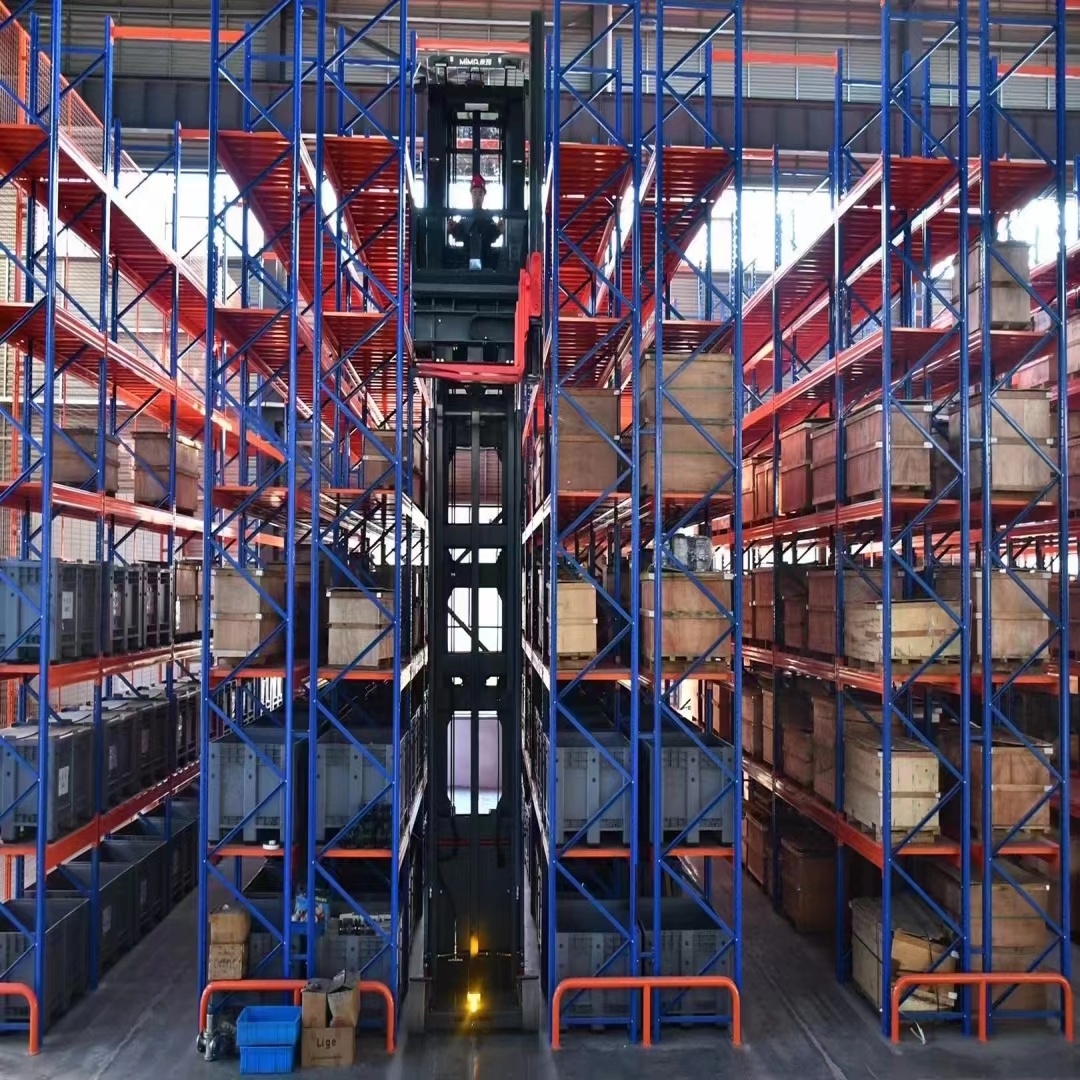

Designed specifically for warehouses with large vertical clearance, this system requires a three-way stacker truck for operation. The moving rails are floor-installed, allowing aisles to be reduced to just 1.6-2.4 meters wide. Reaching heights of up to 8-15 meters, VNA racking achieves a storage density 30%-50% higher than traditional racking while supporting a first-in, first-out (FIFO) inventory system.
| Feature | Specification Details |
|---|---|
| Material | High-Quality Q235B Steel |
| Type | Multi-Level Narrow Aisle System |
| Height | Customizable (Up to 15 meters) |
| Load Capacity | 100kg ~ 1000kg per level |
| Surface Treatment | Durable Powder Coating |
| Upright Column | Structural H Steel / Roll-formed Post |
| Floor Type | Interlock Powder Coated / Galvanized Grating |
| Handling Method | Three-way Forklift, Pallet Jack, Cargo Lift |
| Safety Features | Anti-seismic, Industrial Safety Class |
| Certification | ISO9001 / CE Approved |
With a monthly production capacity of up to 3,000 tons, we support large-scale projects with strict delivery timelines. Our technical team provides optimal solutions, including CAD drawings, measurements, and installation guidance tailored to your warehouse size.
Free detailed CAD drawings, solution revisions, and professional consultation to resolve all design doubts.
Transparent transaction process, third-party protection options, and flexible negotiation on order changes.
Detailed packing lists, loading photos, installation drawings, and professional onsite installation support.
A: We are a professional manufactory specializing in high-density storage racking systems with advanced production lines.
A: We primarily use carbon steel Q235B. For cold storage environments (-18°C or lower), we utilize Q345D steel or other customized grades.
A: No, we do not have a strict MOQ for most products. However, a 1*20ft container is recommended to optimize shipping costs.
A: It usually takes 15 to 30 days after the receipt of the deposit, depending on the order volume and complexity of the racking type.
A: We provide comprehensive installation videos and drawings. We can also send engineering teams to your site to guide or complete the installation.
A: Our products and processes are certified by SGS, ISO9001, and hold various patents for structural innovation and safety.
