Vertical VNA Racking Multi-tier Metal Shelving Units Stacking Pallet Warehouse Racking Storage Systems

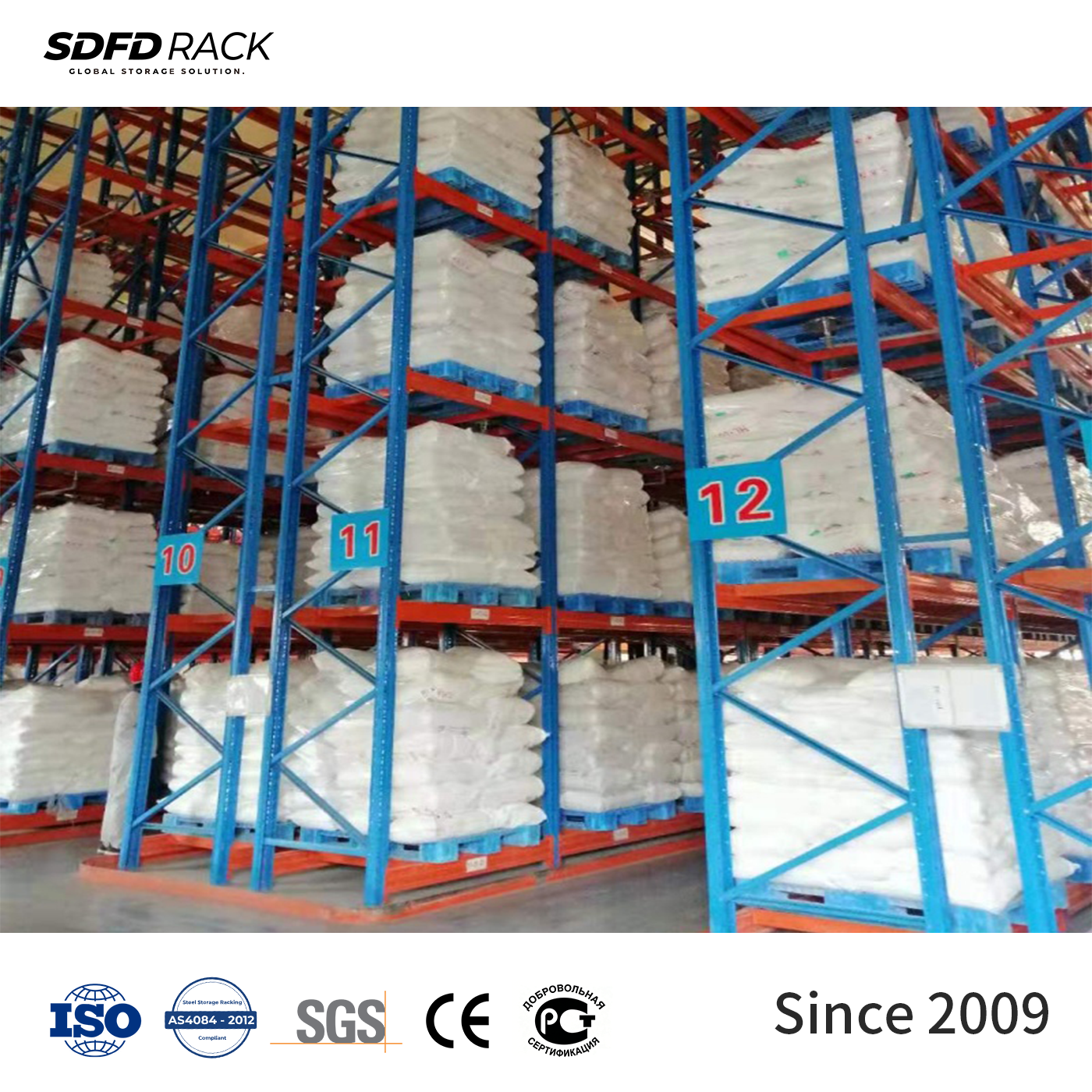

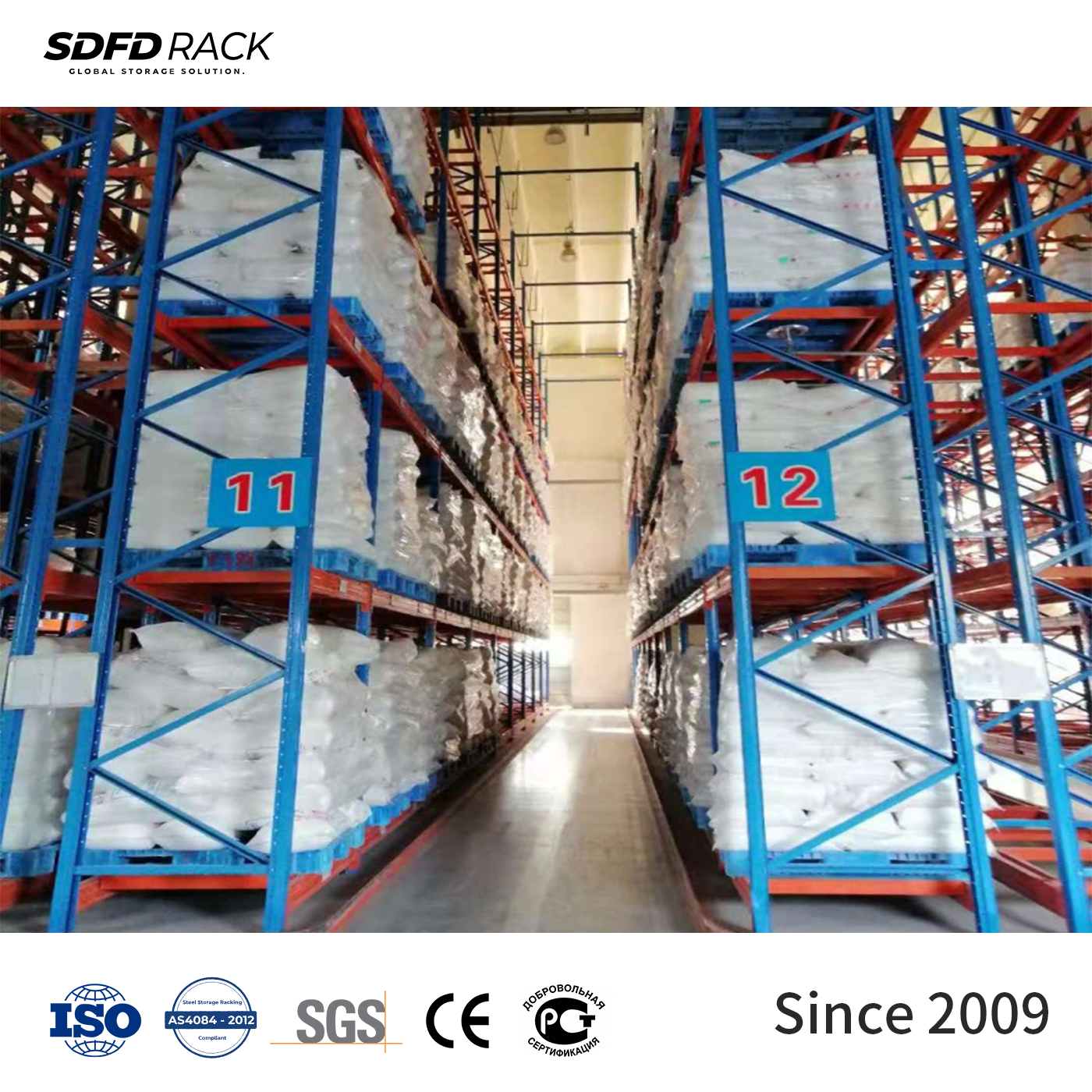

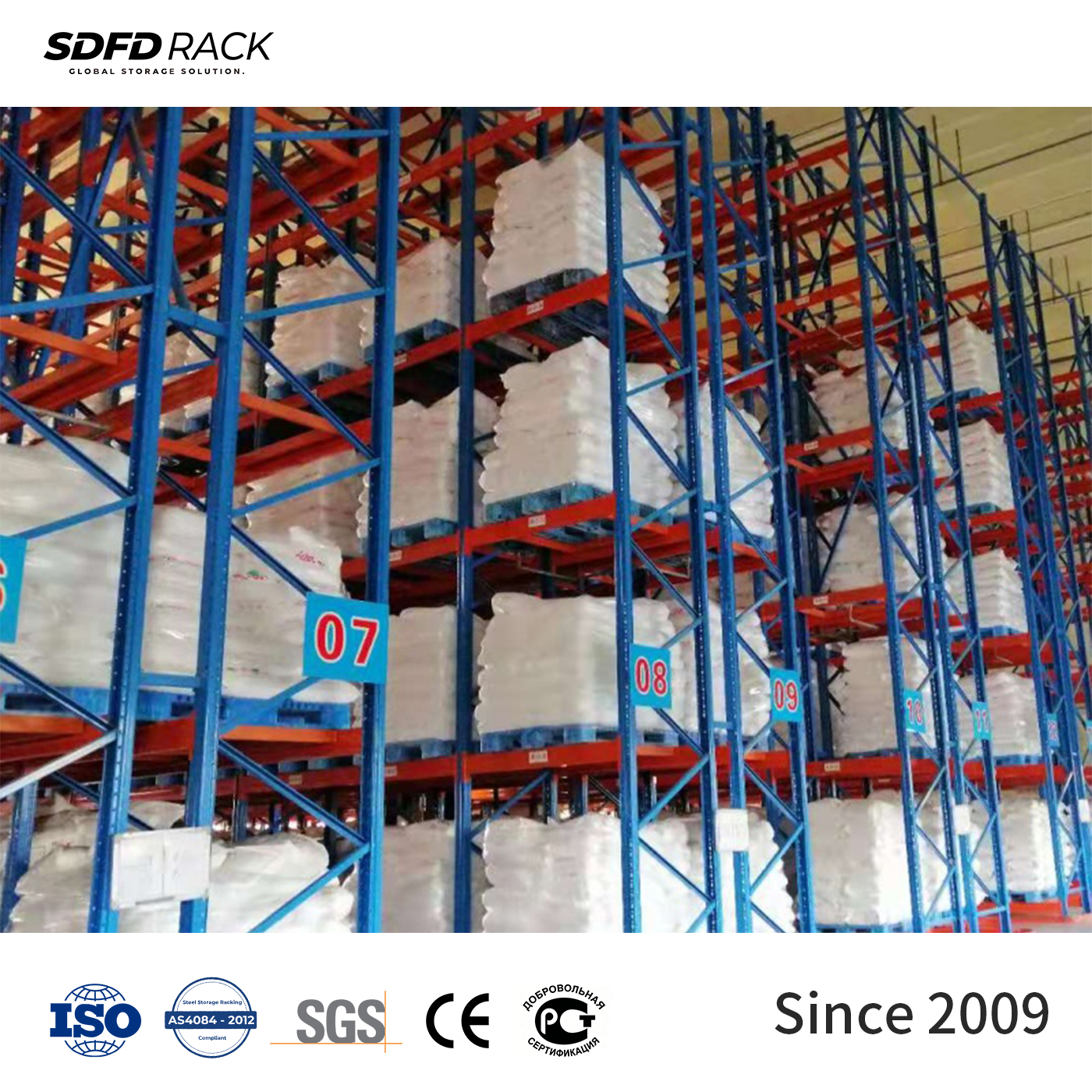

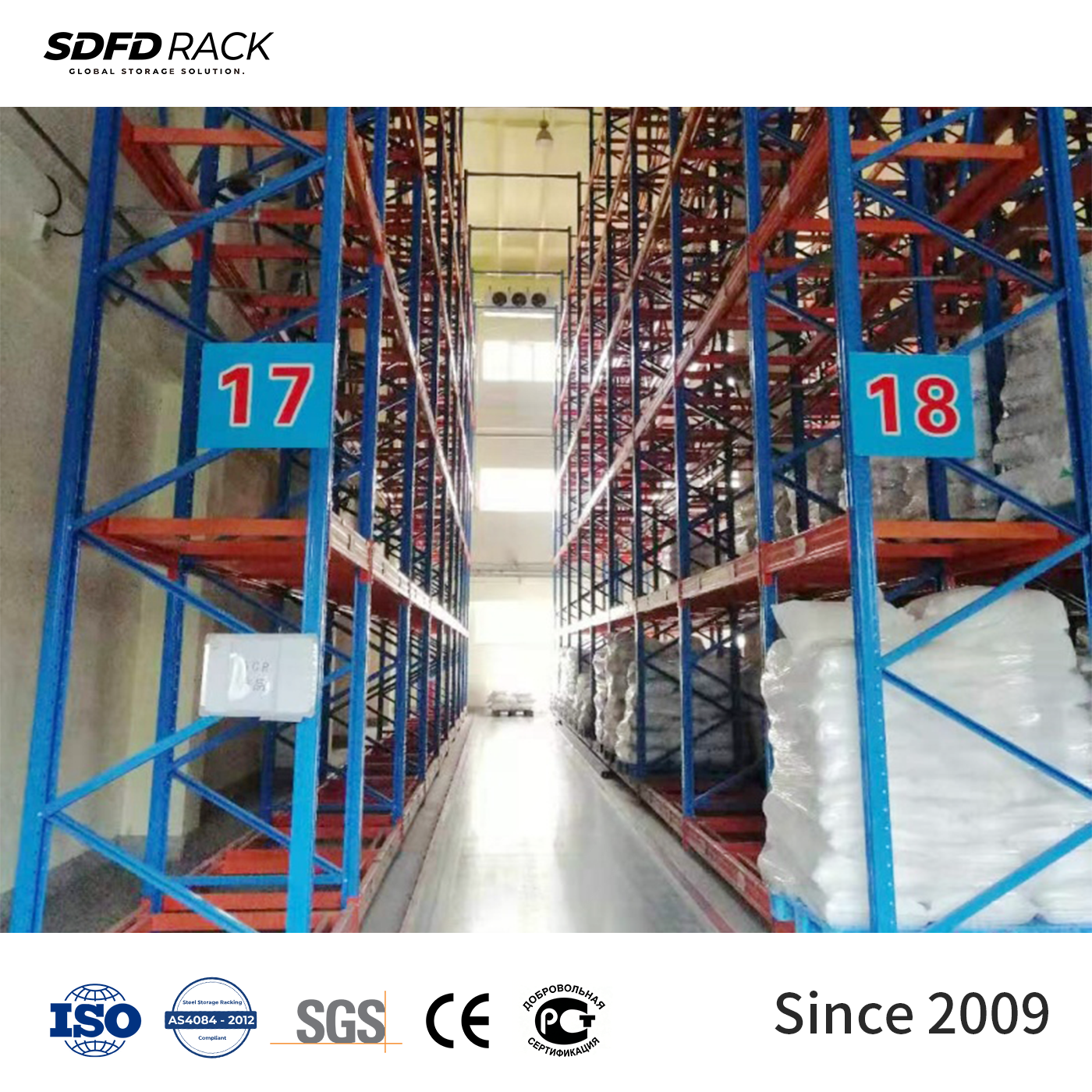

The narrow aisle racking system is a kind of warehouse storage pallet racking. Its forklift handling channel is relatively narrow, so it is called narrow roadway or narrow aisle racking system, which is abbreviated as VNA pallet racking system. Fast storage efficiency and very high storage density bring significant production efficiency and cost-effectiveness to users.
Narrow aisle racking is a high-density storage system designed specifically for warehouses with large spaces and requires a three-way stacker truck for operation. The three-way stacker truck's moving rails are installed on the floor below the narrow aisle racking and are used in conjunction with a three-way forklift. Its aisle width is only 1.6-2.4 meters, much narrower than the 3-4 meters of traditional racking. It can reach heights of 8-15 meters, fully utilizing vertical space and achieving a storage density 30%-50% higher than traditional racking.
It also supports a first-in, first-out (FIFO) system. It is suitable for warehouses with floor heights of 8 meters or more, large batch sizes, and moderate turnover rates, such as food, daily chemical, e-commerce, and manufacturing industries.
| Material | Q235B Steel |
| Type | Multi-Level |
| Use | Warehouse Rack |
| Product Name | Steel Platform, Mezzanine Floor |
| Height / Width | As per your requests |
| Capacity | 100~1000kgs |
| Surface Treatment | Powder Coating |
| Upright Column | Structural H Steel, Round Tubing, Roll-formed Post |
| Certification | ISO9001/CE |
| Design Services | Available |
• Monthly production capacity up to 3,000 tons, ideal for large-scale projects.
• Professional technical team providing optimal solutions, drawings, and installation guidance.
• Customized services with a variety of materials to meet diverse load-bearing requirements.
• Certified quality with SGS, ISO9001, and numerous patents.
Cargo Fixation: Multi-layer reinforcement for stability during transport.
Vibration Damping: Shock absorbers protecting coating and structure.
Rain Protection: High-quality waterproof tarpaulins and desiccants.
Founded in 2008, our company is a professional manufacturer integrating the R&D, design, production, and installation of modern logistics technologies. Recognized as a specialized, innovative, and high-tech enterprise, the company boasts advanced equipment such as cold-rolling lines, automated powder coating lines, and automatic continuous punching lines.
The annual production capacity exceeds 20,000 tons, with a diverse portfolio including pallet racking, heavy-duty racking, ASRS, mezzanine, cantilever, and VNA racking systems.
