Heavy Duty VNA Pallet Rack Adjustable Steel 5 Layer Customized Selective Pallet Rack Industrial Warehouse Storage Racks

1 / 5

Heavy Duty VNA Pallet Rack Adjustable Steel 5 Layer Customized Selective Pallet Rack Industrial Warehouse Storage Racks

Send Inquiry

Product Description

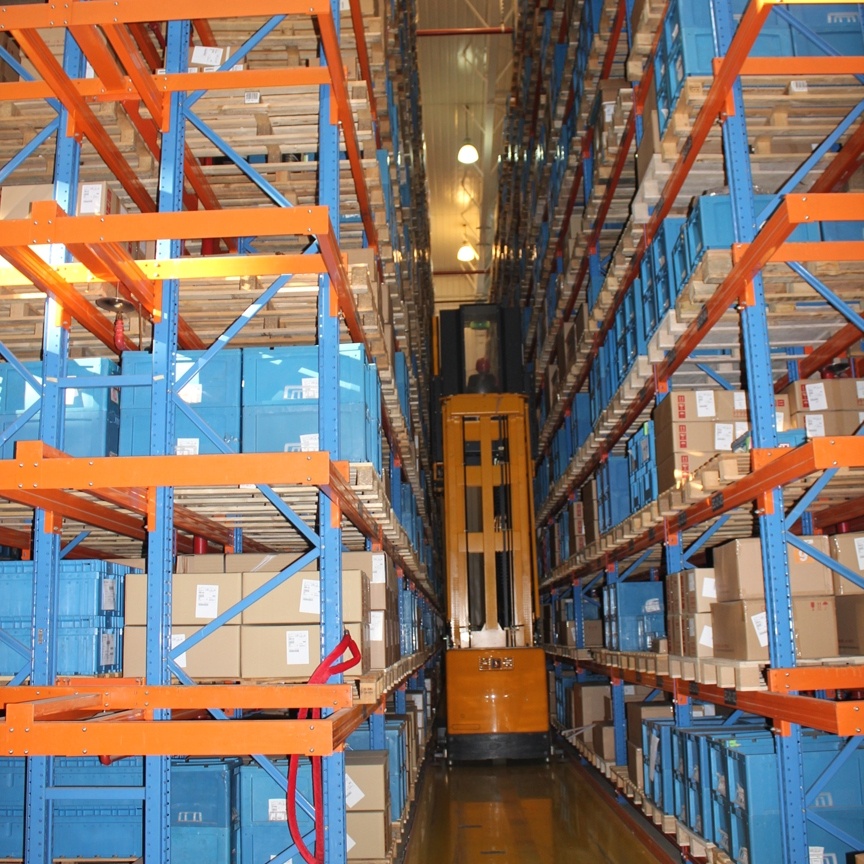

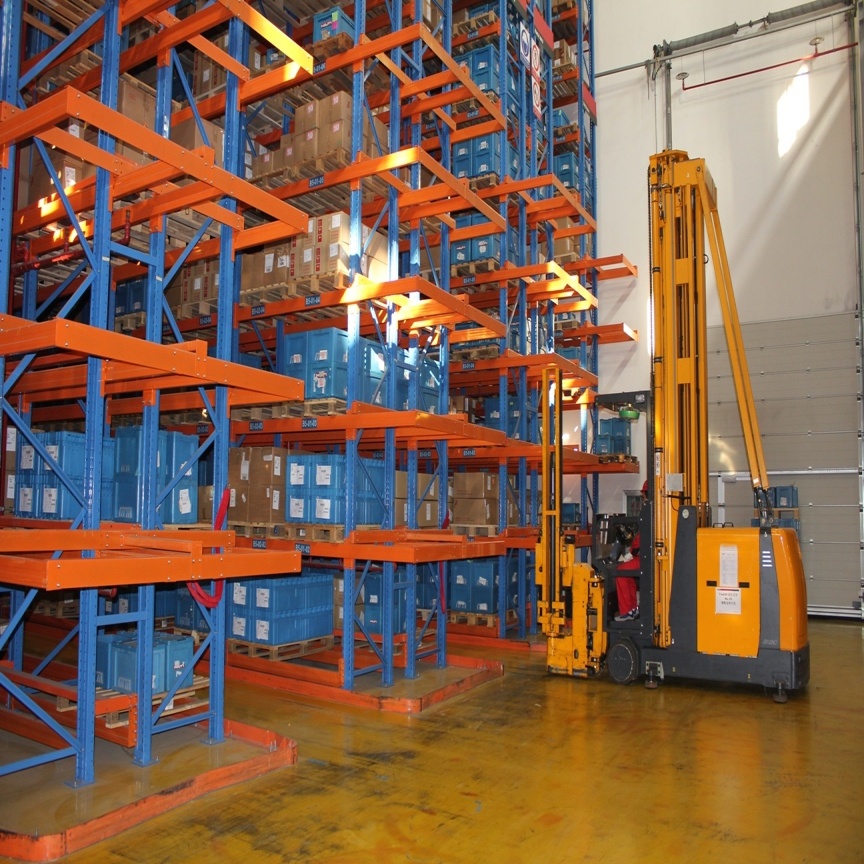

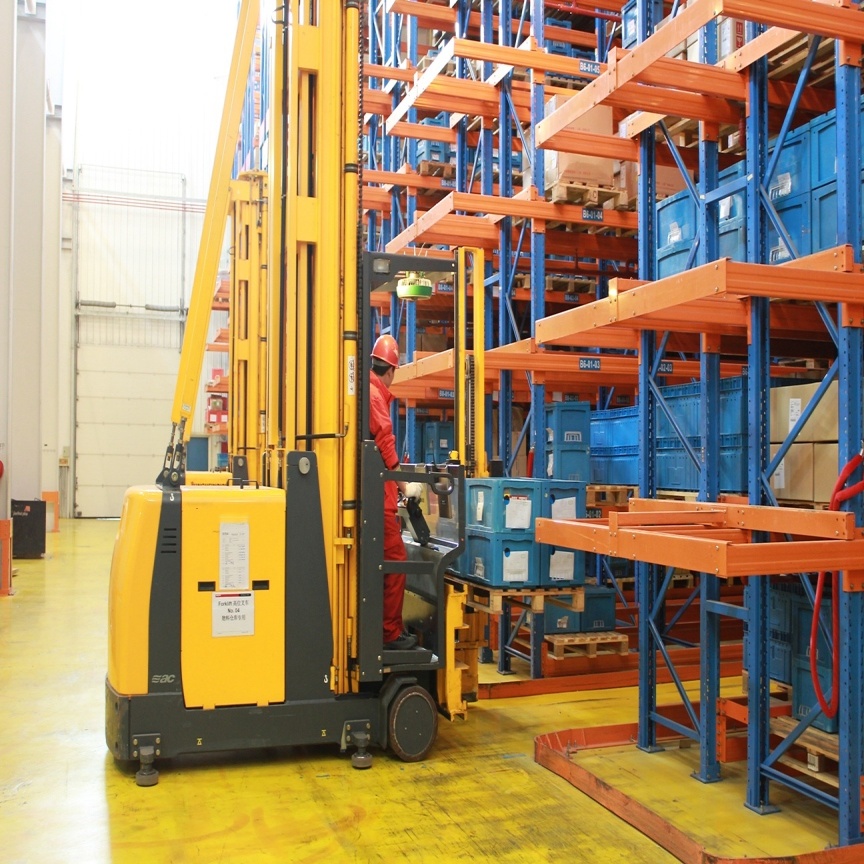

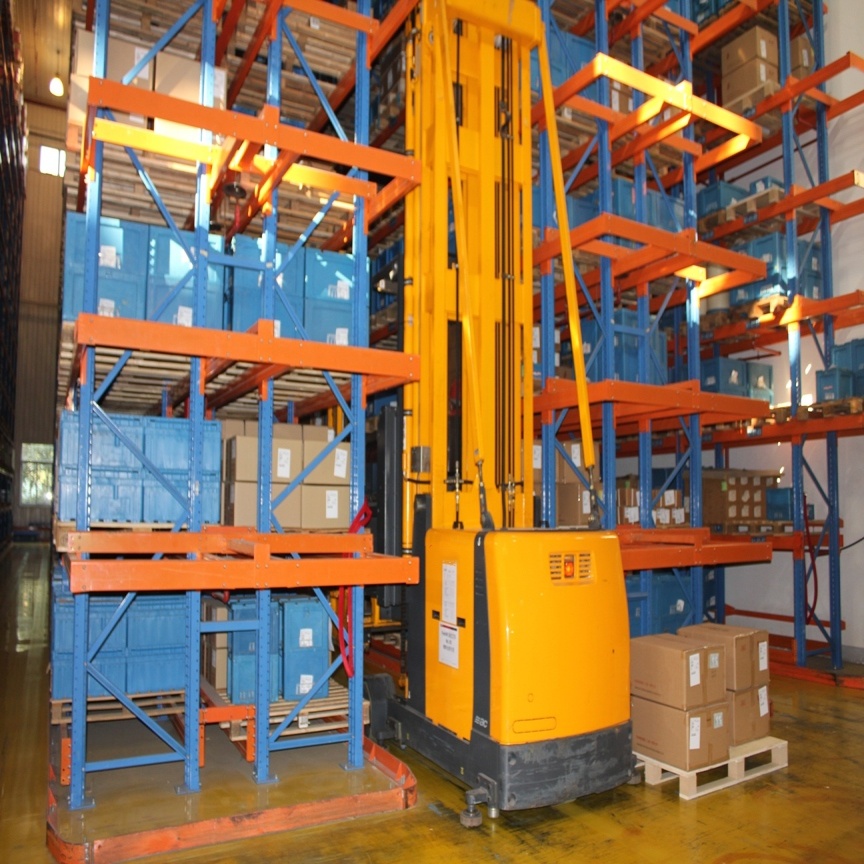

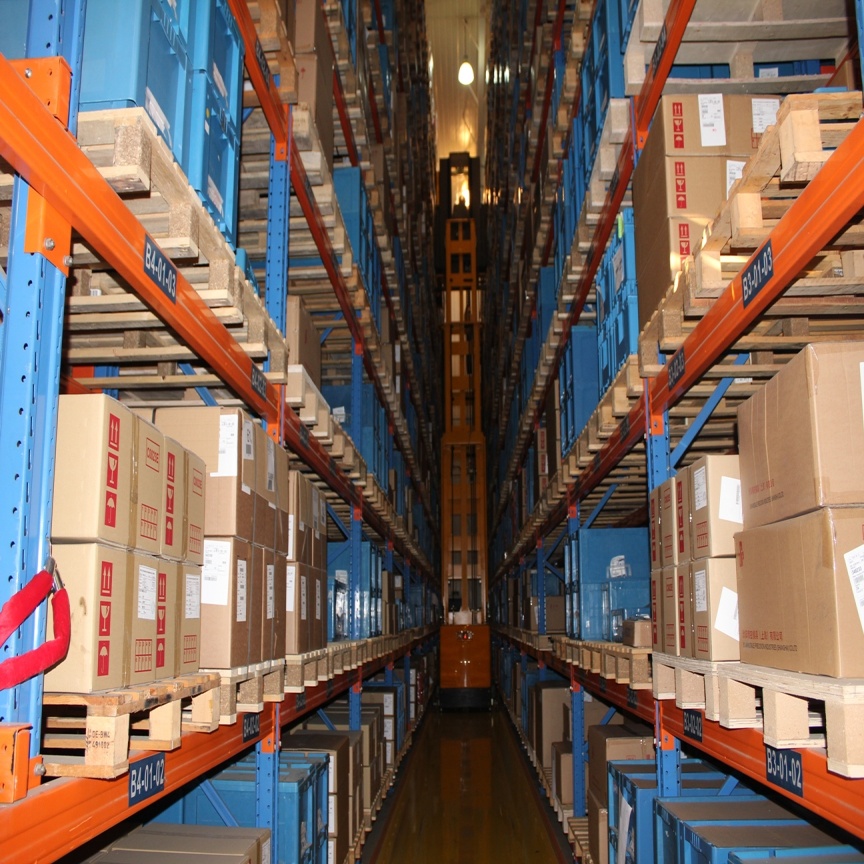

Vertical VNA Racking Systems

The narrow aisle racking system is a specialized warehouse storage solution. Its forklift handling channel is significantly narrower than traditional systems, often referred to as a Very Narrow Aisle (VNA) pallet racking system. This design offers rapid storage efficiency and exceptionally high density, delivering significant productivity gains and cost-effectiveness.

High-Density Storage Capability

Designed specifically for large-scale warehouses, VNA racking requires a three-way stacker truck for optimal operation. By reducing aisle widths to 1.6-2.4 meters (compared to 3-4 meters in traditional systems) and reaching heights of 8-15 meters, it achieves 30%-50% higher storage density.

Core Advantages

✔ Improved warehouse storage density through narrow aisles.

✔ Lowered unit storage costs by maximizing vertical space.

✔ Supports First-In, First-Out (FIFO) inventory management.

✔ Suitable for diverse industries: e-commerce, food, and manufacturing.

Product Parameters

Material	Q235B Steel
Type	Multi-Level / Narrow Aisle
Height	As per requests (Up to 15m)
Capacity	100~1000kgs per level
Surface Treatment	Powder Coating
Upright Column	Structural H Steel / Roll-formed Post
Floor Type	Interlock Powder Coated / Grating Galvanized
Safety Features	Anti-seismic, Industrial Safety Class
Certifications	ISO9001 / CE

Manufacturing Excellence

We are a specialized manufacturer integrating R&D, design, and production. Our facility features advanced cold-rolling lines, automated powder coating, and continuous punching lines. With a monthly production capacity of up to 3,000 tons, we efficiently handle large-scale projects with strict delivery timelines.

Packaging & Shipping

Cargo Fixation
Ropes, straps, and frames secure components to prevent movement or collision during transport.

Vibration Damping
Rubber pads and foam boards absorb transit vibrations, protecting surface coatings and structural integrity.

Moisture Protection
High-quality waterproof tarpaulins and desiccants keep metal components dry and rust-free during long trips.

Our Professional Services

Pre-Order

Free CAD drawings, detailed quotations, and solution revisions to ensure a perfect fit for your warehouse.

During Order

Transparent transaction processes and production monitoring to ensure quality standards are met.

After Order

Detailed packing lists, loading photos, and installation guidance (video or on-site engineering support).

Frequently Asked Questions

Q1: Are you a factory or a trading company?

We are a direct manufacturer specializing in warehouse storage racking systems.

Q2: What raw materials are used in your products?

We primarily use carbon steel Q235B. For cold storage environments (below -18°C), we utilize Q345D or other customized steel types to ensure durability.

Q3: What is the typical delivery time for an order?

Delivery usually takes 15 to 30 days after receiving the deposit, depending on the order volume and racking specifications.

Q4: How do I handle the installation of the racks?

We provide comprehensive installation videos and drawings. If required, we can deploy engineers or an installation team to provide on-site guidance.

Q5: Do you have a Minimum Order Quantity (MOQ)?

Most of our products do not have a strict MOQ requirement. However, a 20ft container order is generally recommended to optimize shipping costs.

Q6: What are your accepted payment terms?

We primarily accept T/T and L/C payment methods for all warehouse racking orders.
