Vertical VNA Racking & Storage Systems

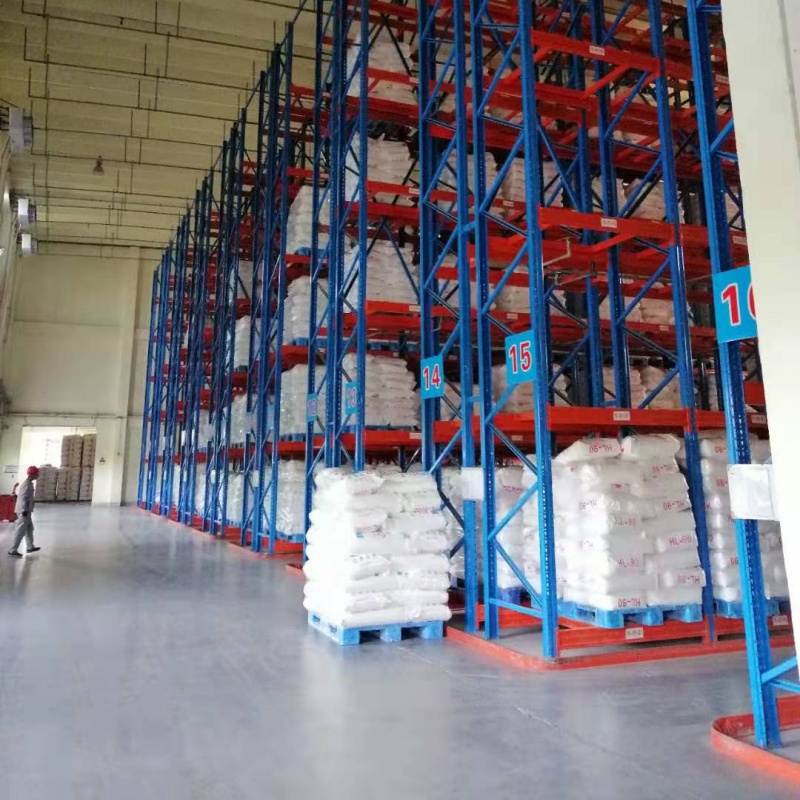

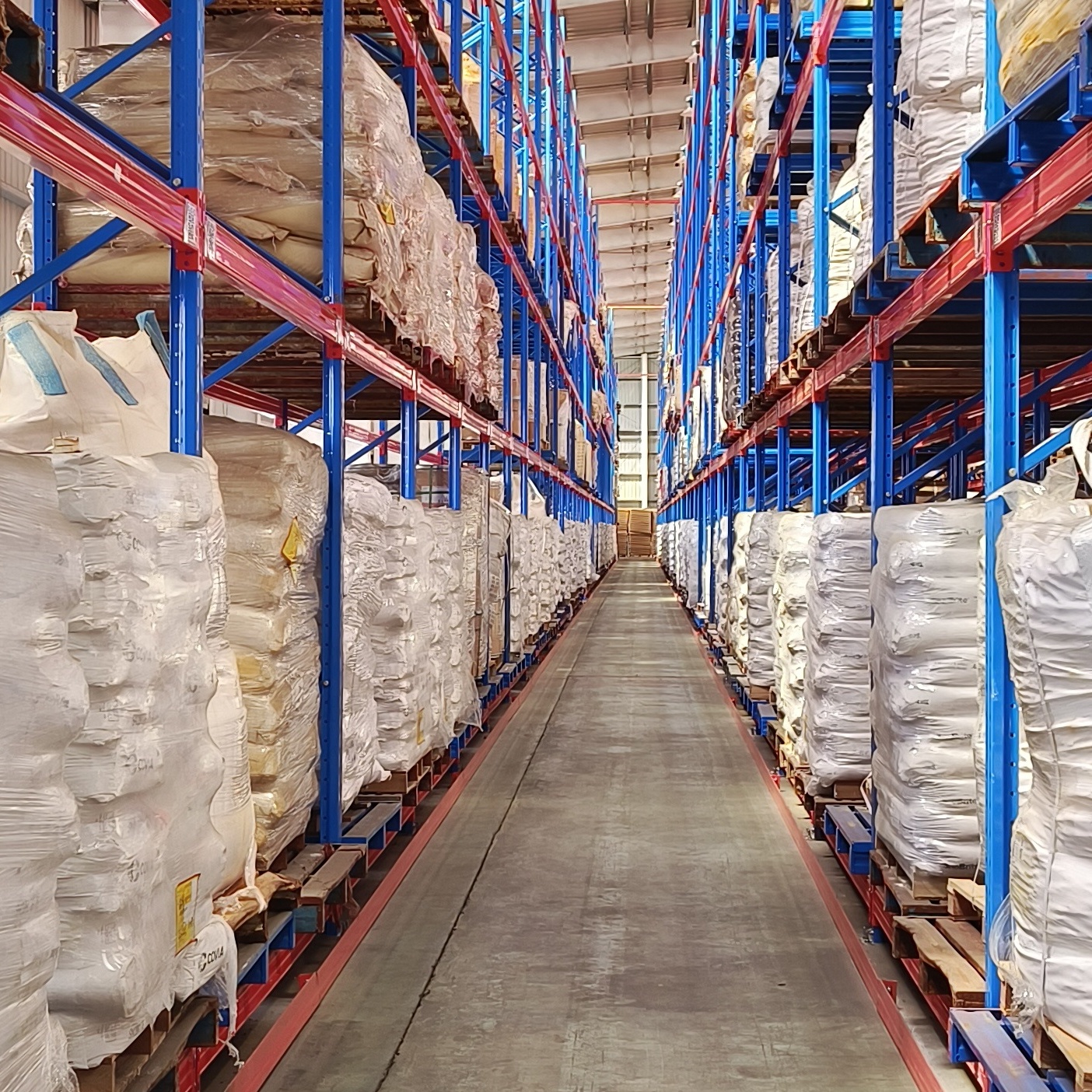

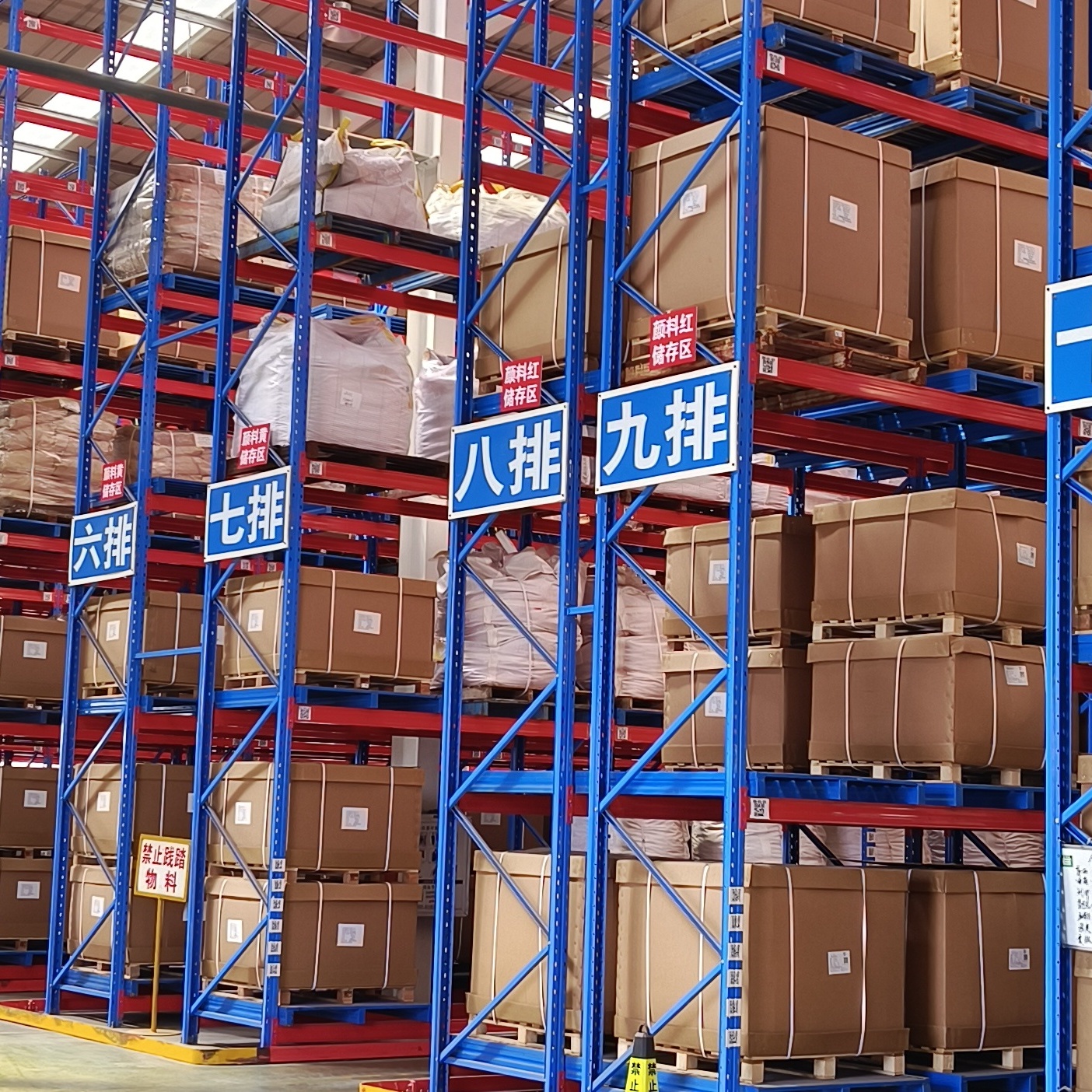

The narrow aisle racking system is a specialized warehouse storage solution. Featuring a relatively narrow forklift handling channel, it is also known as a VNA (Very Narrow Aisle) pallet racking system. This design provides exceptional storage density and operational efficiency, offering significant cost-effectiveness for modern logistics.
High-Density Storage Capability

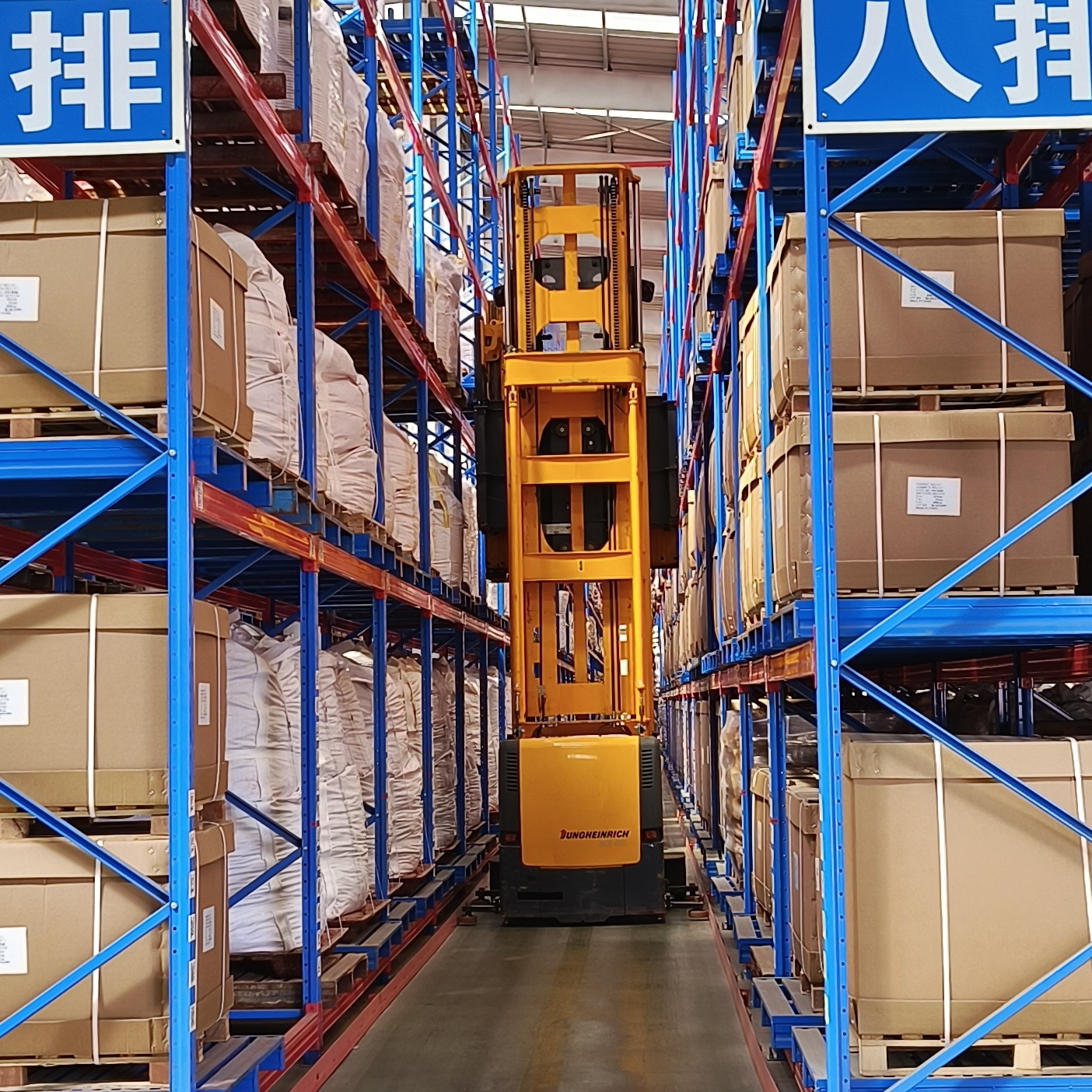

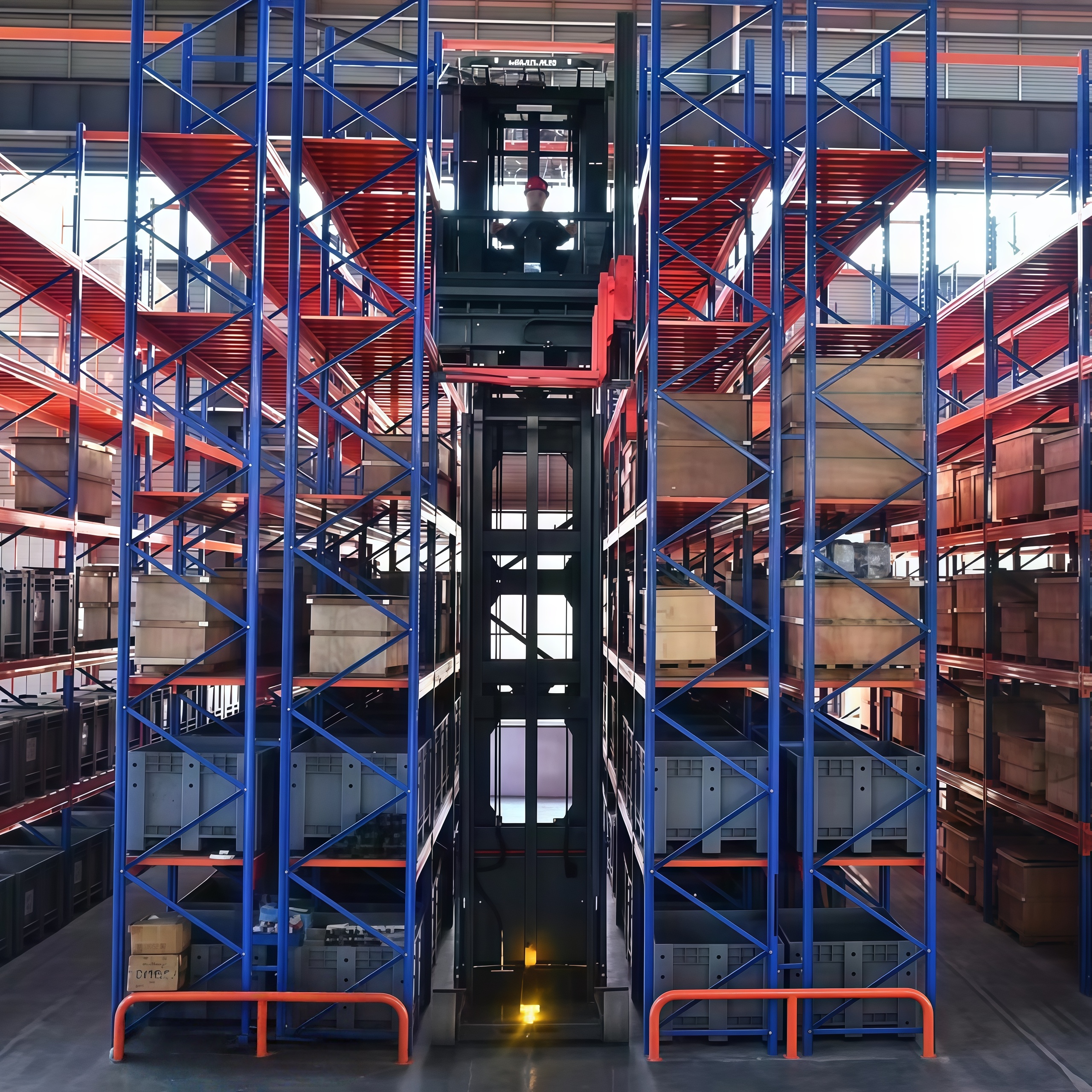

Designed specifically for warehouses requiring optimized vertical space, this system utilizes a three-way stacker truck. With aisle widths of only 1.6-2.4 meters—significantly narrower than the 3-4 meters required for traditional racking—it can reach heights of 8-15 meters. This results in a storage density 30%-50% higher than traditional systems while supporting First-In, First-Out (FIFO) inventory management.
Key Advantages
- Significantly improves overall warehouse storage density.
- Reduces aisle space requirements and lowers unit storage costs.
- Supports FIFO to avoid inventory backlogs and reduce losses.
- Ideal for high-rise warehouses in food, e-commerce, and manufacturing.
- Dedicated forklift assistance ensures smooth and safe access to goods.
- Fully utilizes vertical space without needing warehouse expansion.
Product Application & Components
Product Parameters
| Material |
Q235B Steel |
| Type |
Multi-Level / Vertical VNA |
| Load Capacity |
100~1000 kgs per level |
| Surface Treatment |
Professional Powder Coating |
| Height/Width |
Customized as per requests |
| Upright Type |
Structural H Steel, Roll-formed Post |
| Components |
Staircase, Handrail, Guardrail, Accessing Gate |
| Certification |
ISO9001 / CE / SGS |
Professional Manufacturing & Support
With a monthly production capacity of up to 3,000 tons, we support large-scale projects with strict delivery timelines. Our technical team provides optimal storage solutions, including drawings, on-site measurements, and professional installation guidance.
Packaging & Logistics
Cargo Fixation
Ropes, straps, and frames secure components to prevent movement or collision during transport.
Vibration Damping
Rubber pads and foam boards protect the rack's surface and structure from transit vibrations.
Rain Protection
High-quality waterproof tarpaulins and desiccants keep metal components dry and rust-free.
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a professional manufacturer specializing in warehouse storage rack systems since 2009.
Q2: What raw materials are used for your products?
Our standard racks use high-quality carbon steel Q235B. For cold storage (-18°C or lower), we utilize Q345D or other customized steel grades.
Q3: Do you have a Minimum Order Quantity (MOQ)?
No, we do not have a strict MOQ for most products. However, a 1*20ft container is recommended for better cost-efficiency and logistics handling.
Q4: What is the typical delivery time?
Delivery generally takes 15 to 30 days after receiving the deposit, depending on the order volume and rack specifications.
Q5: How are the racks installed?
We provide comprehensive installation videos and drawings. For complex projects, we can send an engineer or installation team to assist on-site.
Q6: Which port is used for loading?
We primarily use Qingdao port, but we can arrange shipments from other ports according to your specific requirements.
