Products Description
Vertical VNA Racking Multi-tier Metal Shelving Units

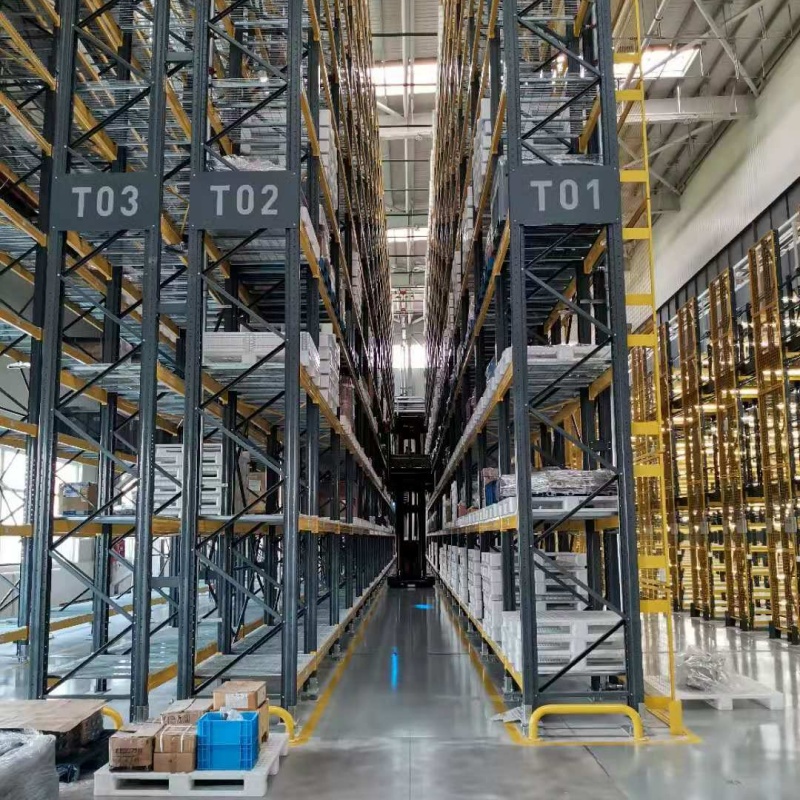

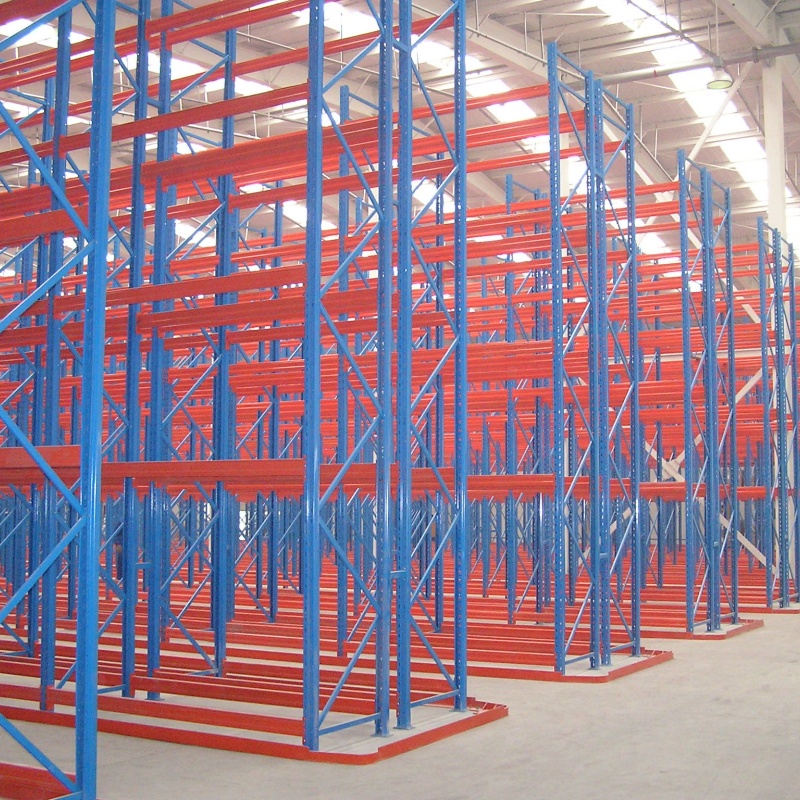

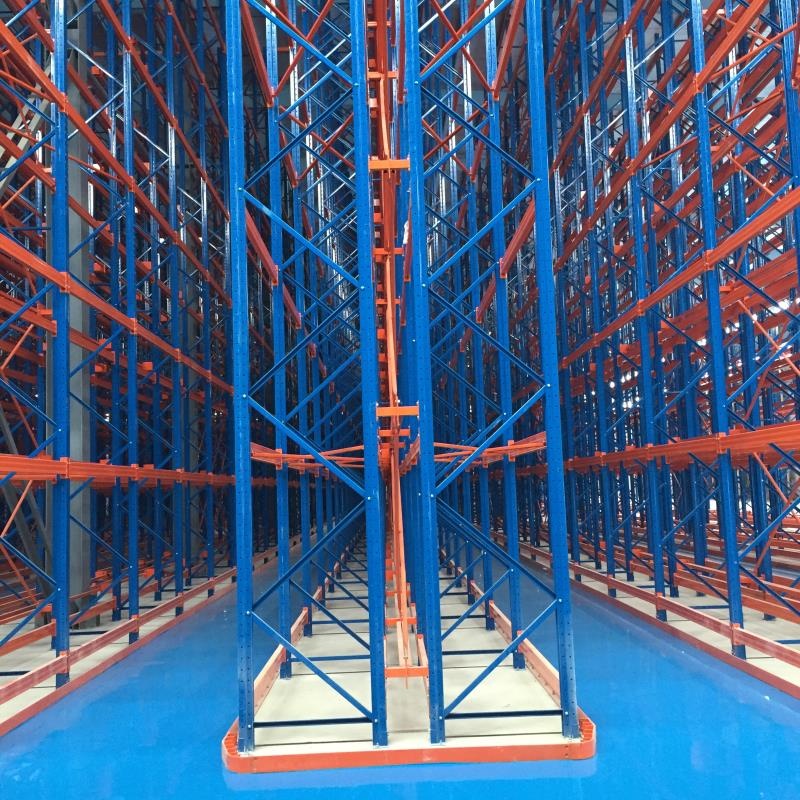

The narrow aisle racking system is a specialized warehouse storage pallet racking. Its forklift handling channel is significantly narrower, which is why it's known as the Very Narrow Aisle (VNA) pallet racking system. This design provides rapid storage efficiency and exceptionally high storage density, delivering significant productivity gains and cost-effectiveness.

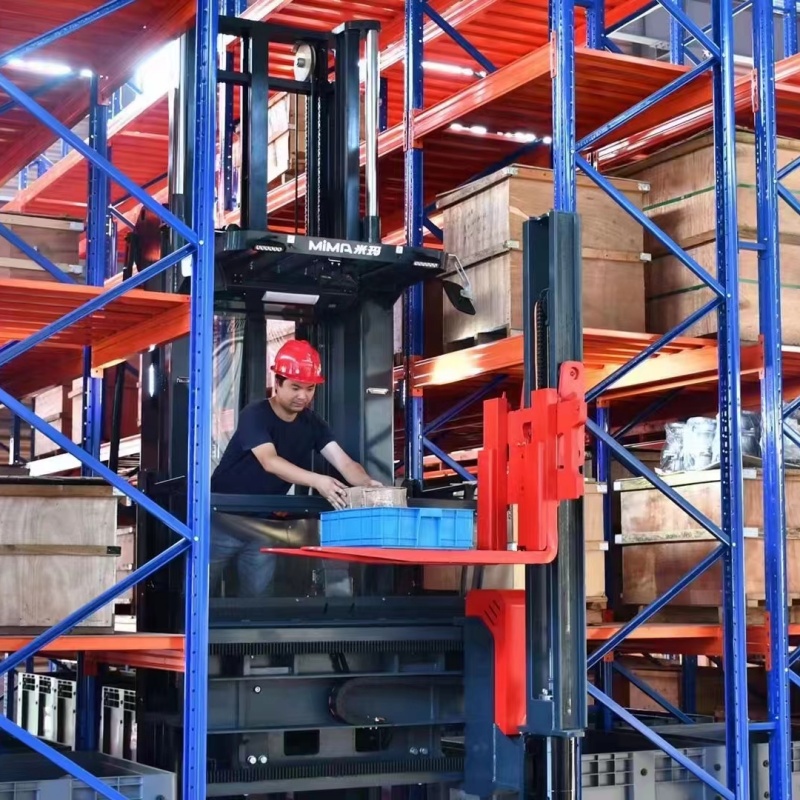

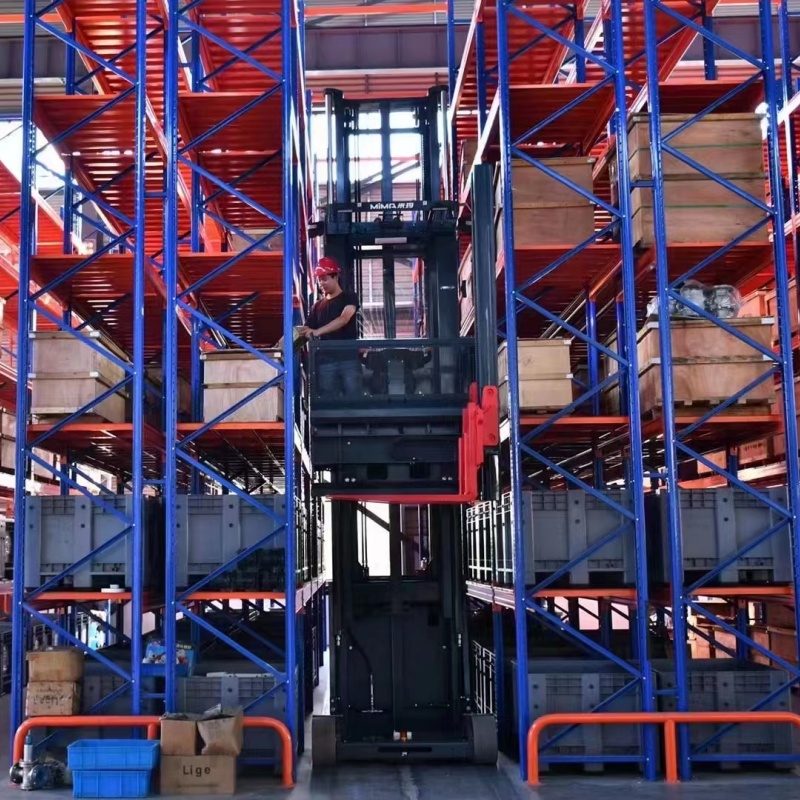

Narrow aisle racking is a high-density storage system designed for warehouses with large spaces, requiring a three-way stacker truck for operation. The aisle width is only 1.6-2.4 meters, much narrower than the 3-4 meters of traditional racking. It can reach heights of 8-15 meters, fully utilizing vertical space and achieving a storage density 30%-50% higher than traditional solutions. It supports first-in, first-out (FIFO) management and is ideal for food, daily chemical, e-commerce, and manufacturing industries.
Advantages of Narrow Aisle Racking
- Narrow aisles and high adaptability significantly improve overall warehouse storage density.
- Reduces aisle space and lowers unit storage costs.
- Supports first-in, first-out (FIFO) to avoid inventory backlogs.
- Ideal for high-rise warehouses, meeting bulk cargo needs.
- Dedicated forklift assistance ensures smoother access to goods.
- Fully utilizes vertical space, eliminating the need for warehouse expansion.
Product Parameters
| Material | Q235B Steel |
| Type | Multi-Level |
| Use | Warehouse Rack |
| Product Name | Steel Platform, Mezzanine Floor |
| Height/Width | Customized as per request |
| Capacity | 100 ~ 1000 kgs |
| Surface Treatment | Powder Coating |
| Upright Type | Structural H Steel, Round Tubing, Roll-formed Post |
| Beam Type | Structural H Steel, Interlock Beam |
| Floor Type | Interlock Powder Coated / Grating Galvanized |
| Certification | ISO9001 / CE |
Why Choose Us
- Monthly production capacity up to 3,000 tons for large-scale projects.
- Professional technical team providing CAD drawings and installation guidance.
- Fully customized services to meet specific load-bearing requirements.
- Extensive export experience and professional product knowledge.
- Verified certifications including SGS, ISO9001, and multiple patents.
Packaging & Shipping
Cargo Fixation
Ropes, straps, and frames secure components to prevent movement during transport. Multi-layer reinforcement for uprights and beams.
Vibration Damping
Rubber pads and foam boards absorb transit vibration, protecting the rack's surface coating and structure.
Moisture Protection
Waterproof tarpaulins and desiccants keep metal components dry and rust-free during long-distance shipping.
Company Profile
Founded in 2008, the company is a professional manufacturer integrating R&D, design, production, and installation of modern logistics technologies. Recognized as a high-tech enterprise, it features advanced equipment such as cold-rolling lines, automated powder coating, and continuous punching lines. With an annual production capacity exceeding 20,000 tons, we provide a diverse portfolio including pallet racking, ASRS, mezzanine, and VNA systems.
Our Services
Before Order
Free CAD drawings, detailed quotations, and solution optimization to suit your specific warehouse needs.
During Order
Secure transaction options and flexible order adjustments before production completion.
After Order
Detailed packing lists, loading photos, and professional installation teams or guidance.
Frequently Asked Questions
Q1: Are you a factory or trading company?
A: We are a professional manufacturer specializing in warehouse storage racking systems.
Q2: What raw materials are used for your products?
A: Our standard material is high-quality carbon steel Q235B. For cold storage environments (-18°C or lower), we utilize Q345D or other customized steel types.
Q3: Do you have a minimum order quantity (MOQ) limitation?
A: No, we do not have a strict MOQ for most products. However, a 1*20ft container is recommended to optimize shipping costs and operational efficiency.
Q4: What is the delivery time for orders?
A: Delivery typically ranges from 15 to 30 days after receipt of the deposit, depending on the order volume and racking complexity.
Q5: How are the products packaged for export?
A: We use standard export packaging. Components are stacked, secured with packing tape, and covered with plastic film. Medium-sized shelf plates are packed in cartons.
Q6: How do I handle the installation of the racks?
A: We provide comprehensive installation videos and technical drawings. Upon request, we can also dispatch engineers or an installation team to provide on-site guidance.
